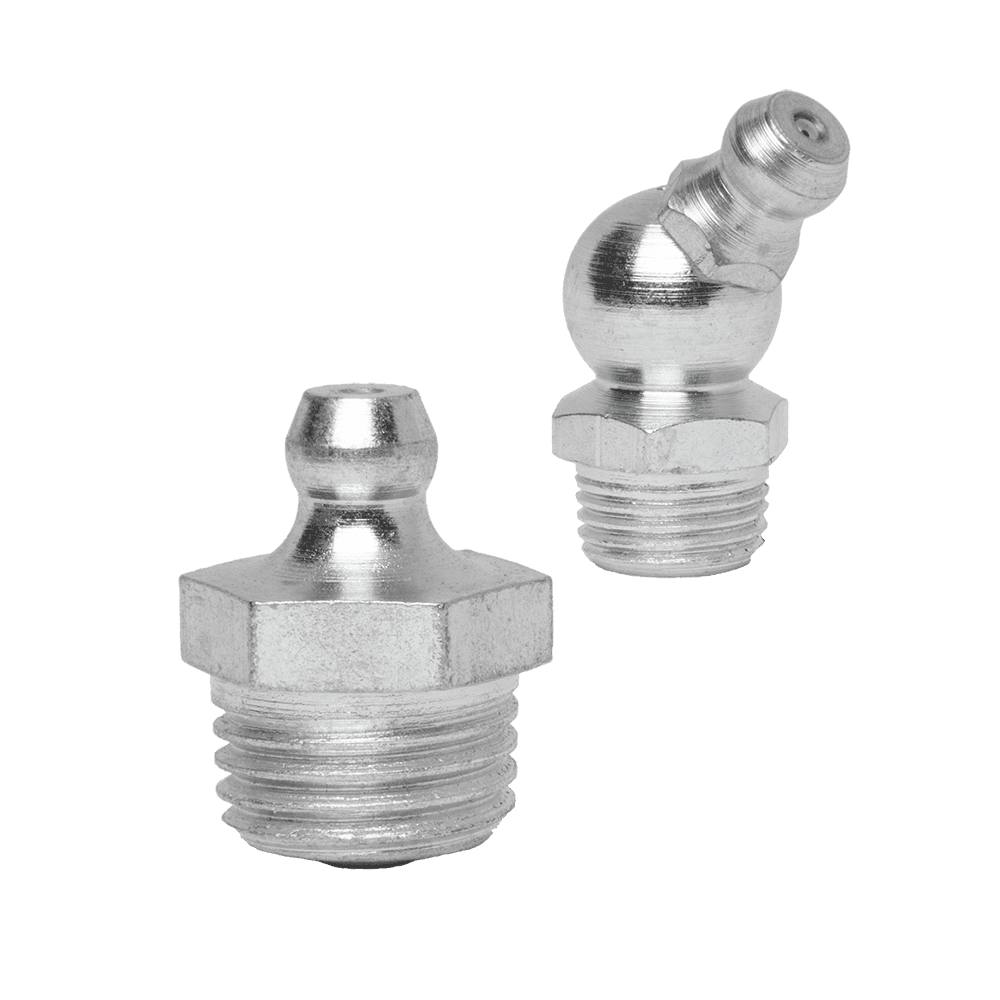

BSP Thread
Grease Nipples
BSP fittings can be either tapered BSPT, or parallel BSPP (or BSPF). BSP threads have a 55° thread form.
Tapered Threads are also known as R series and Parallel threads G series. e.g. R1/8″ = 1/8″ x 28 BSPT
For standard grease nipples, the 1:16 tapered design is preferred as it seals in a mating parallel hole without the need for sealant. The reference 1/8 or 1/4 does not refer to the diameter of the thread. It is an old reference to the pipe size onto which the thread would be used.
Buy the lubrication components you need on our webshop
Our full range of BSP thread grease fittings are available on our brand new webshop. Browse the full range and get the components you need to keep your business moving forward.
BSP - Standard Fittings
Below are our most common BSP Thread grease nipples. To view the product please click the product code.
Kingfisher Code | Kingfisher Code | Description |
White Trivalent RoHS, REACH Compliant | 303 (A2) Stainless Steel | |

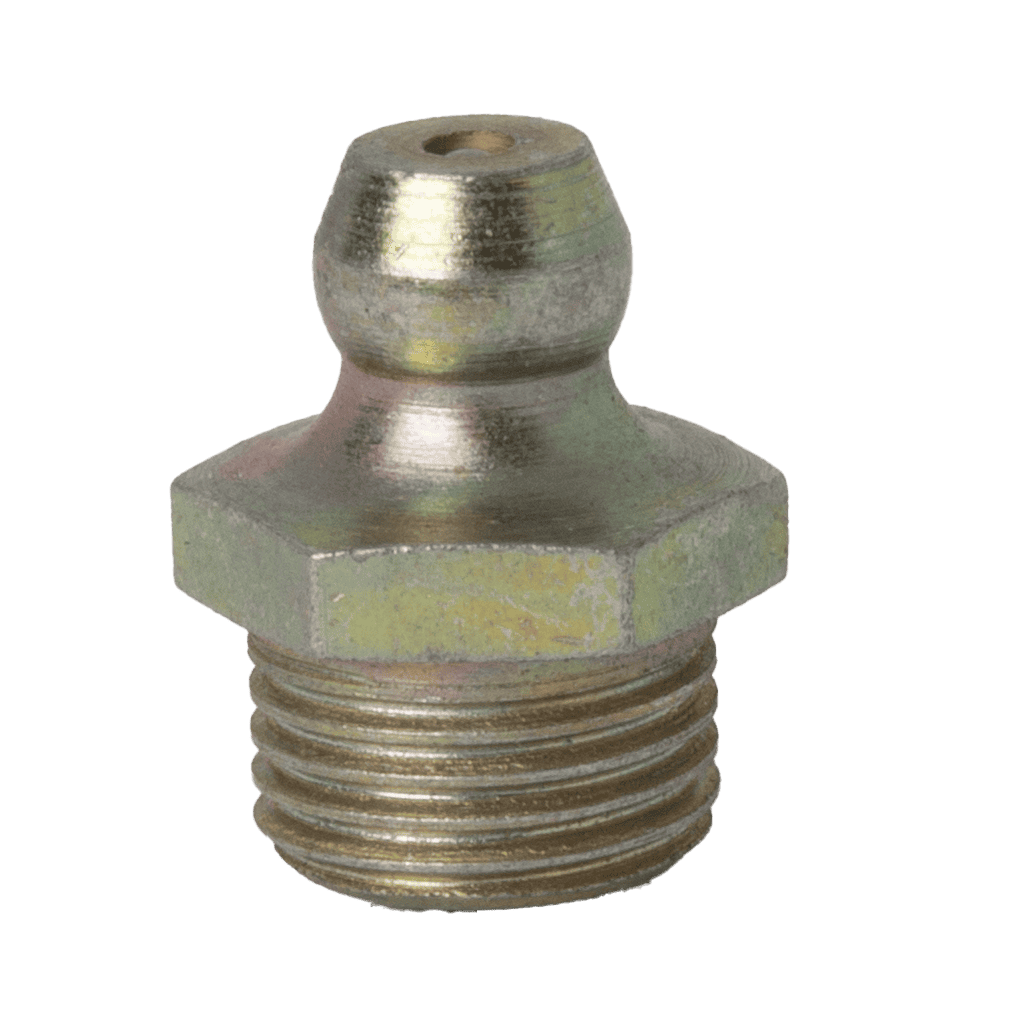

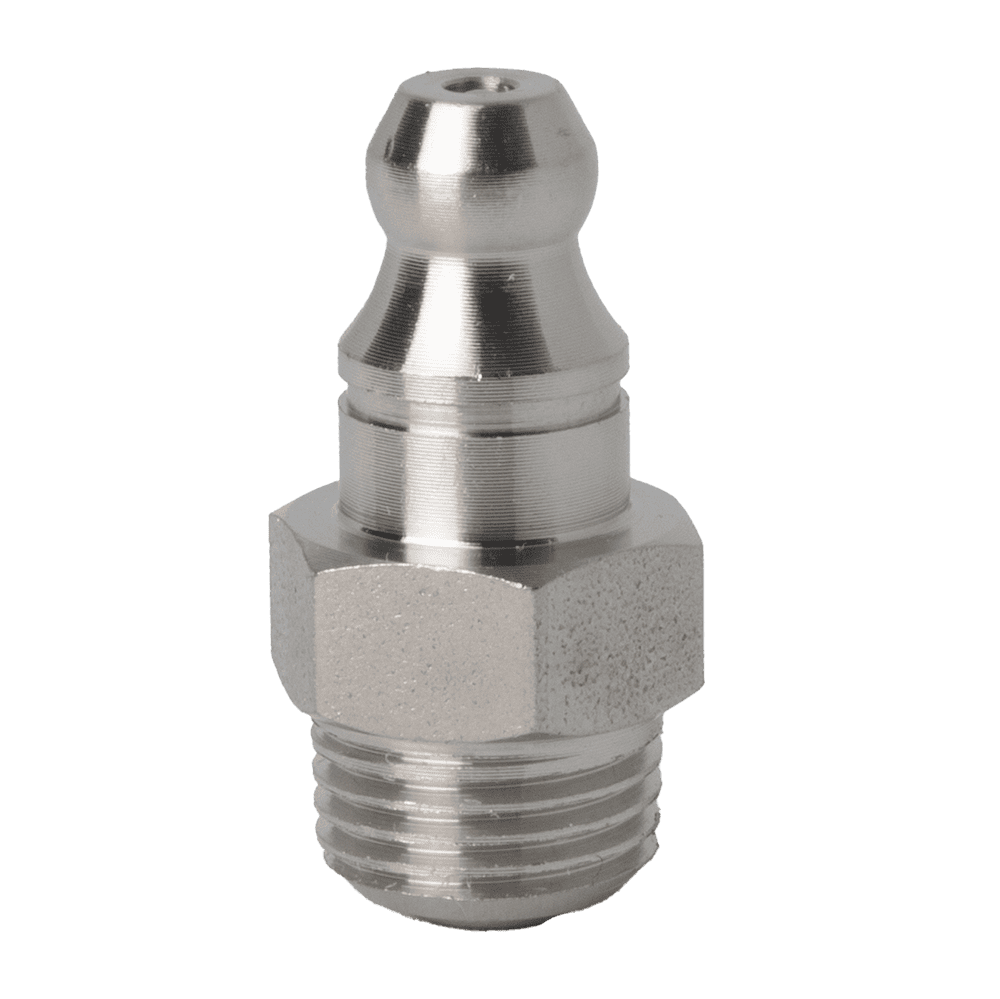

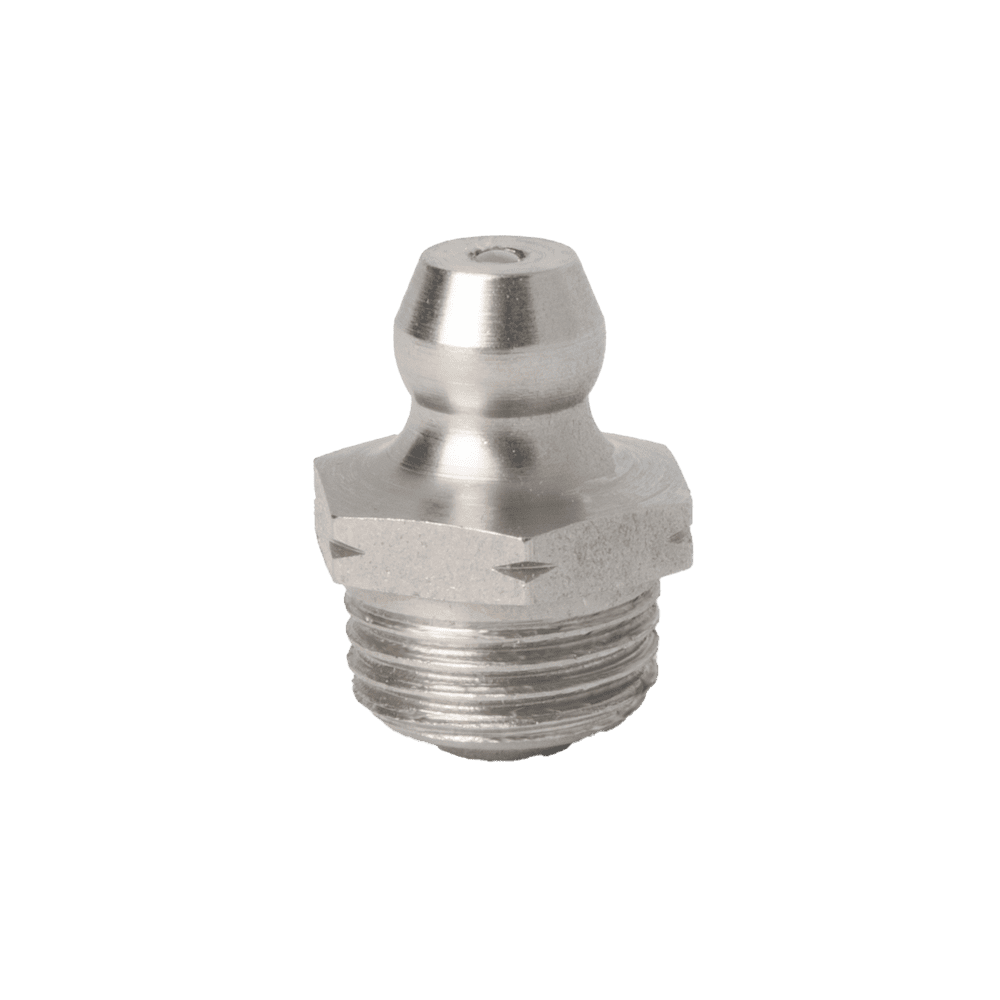

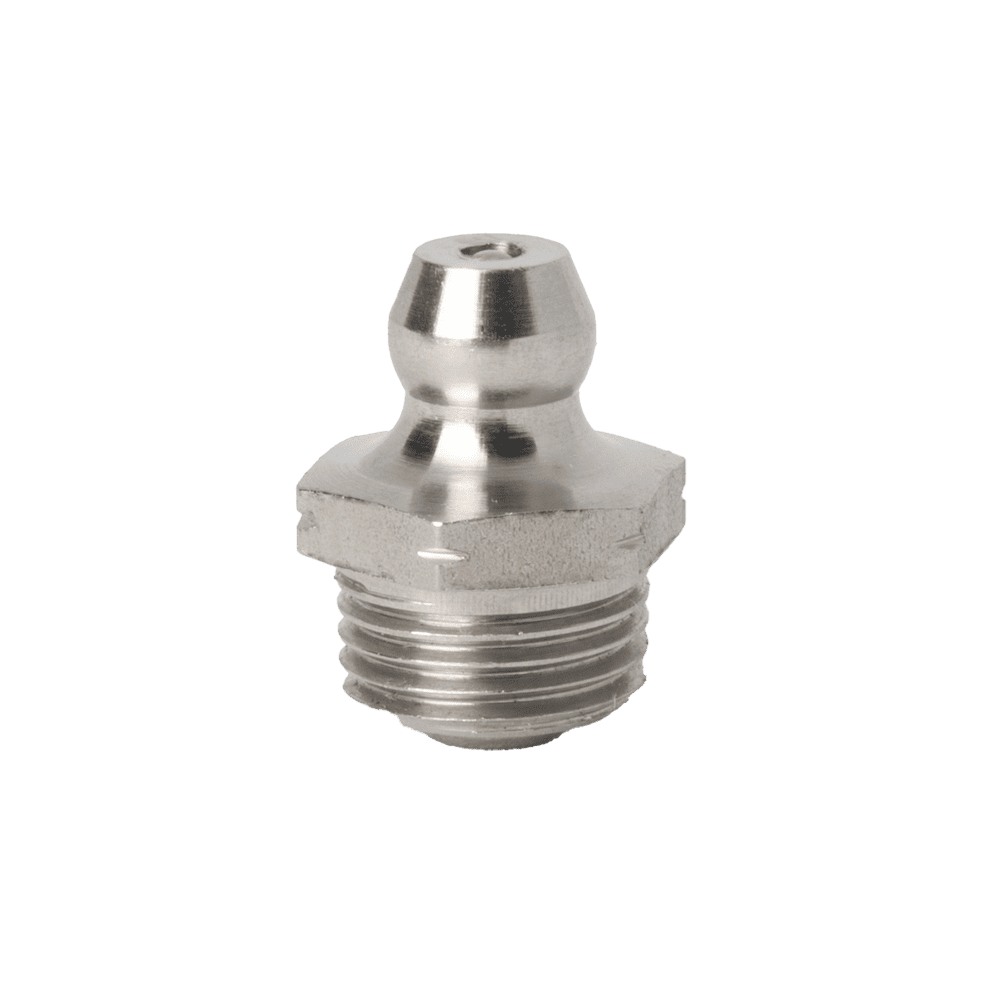

1/8 x 28 BSPT (R1/8) Straight | ||

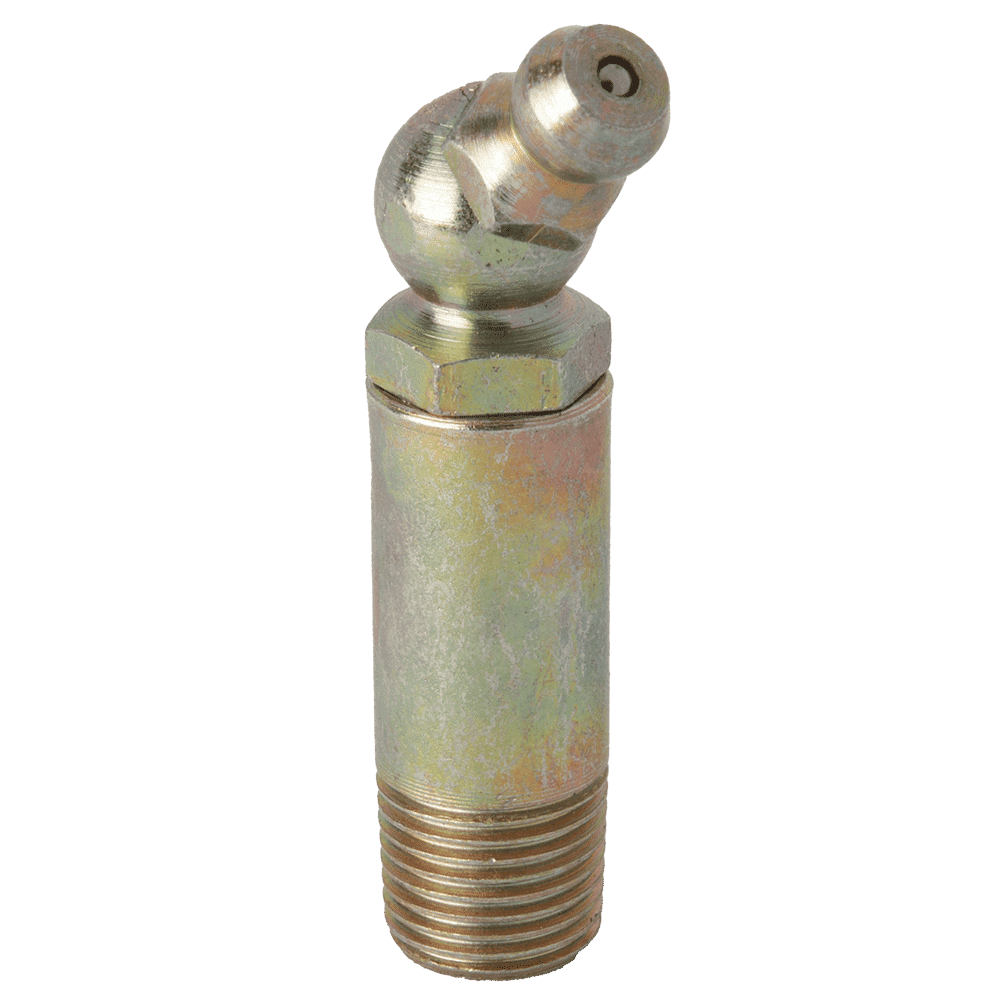

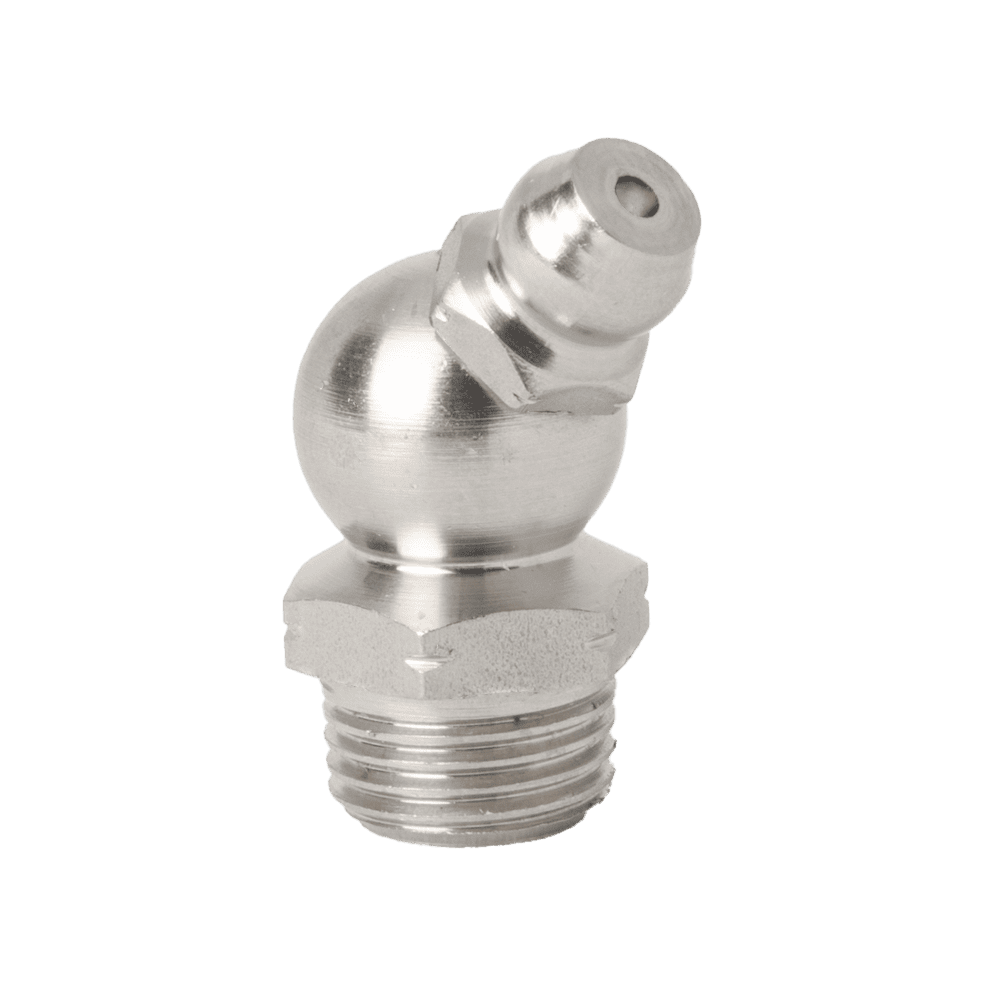

1/8 x 28 BSPT (R1/8) 45° | ||
1/8 x 28 BSPT (R1/8) 67.5° | ||

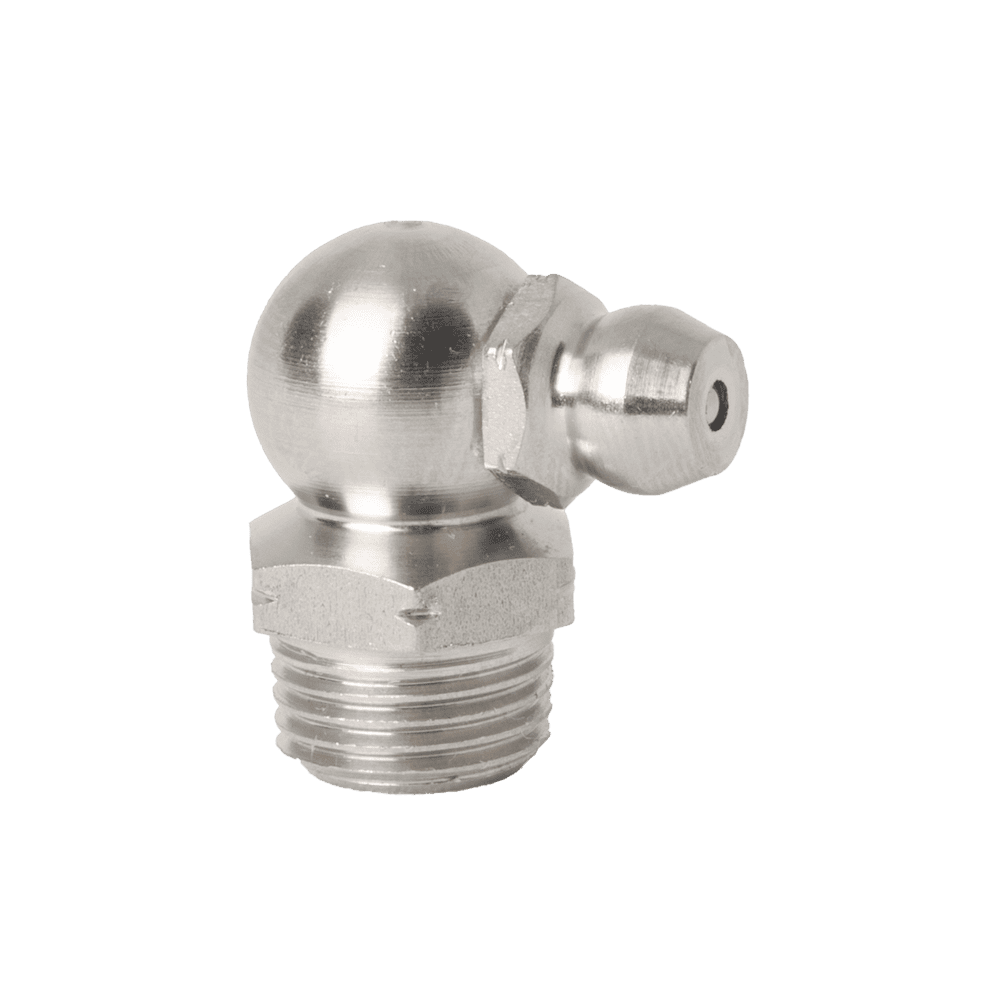

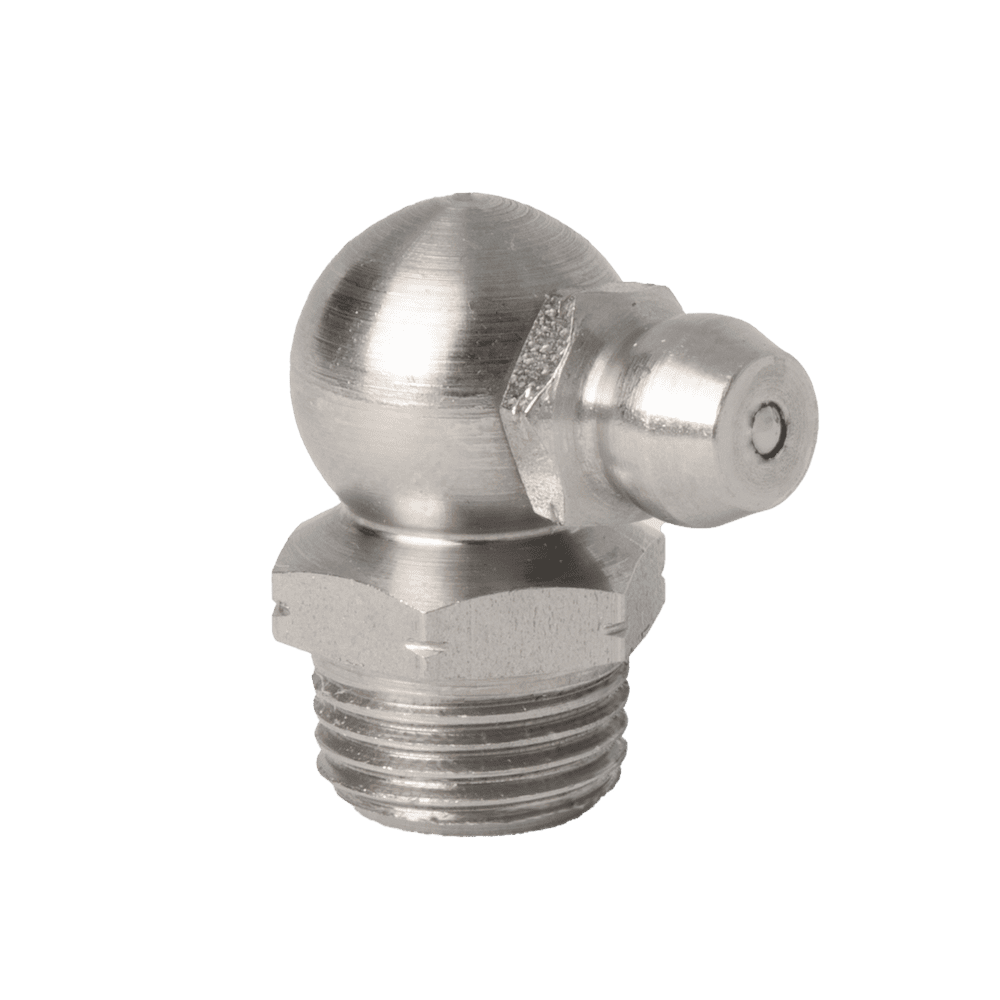

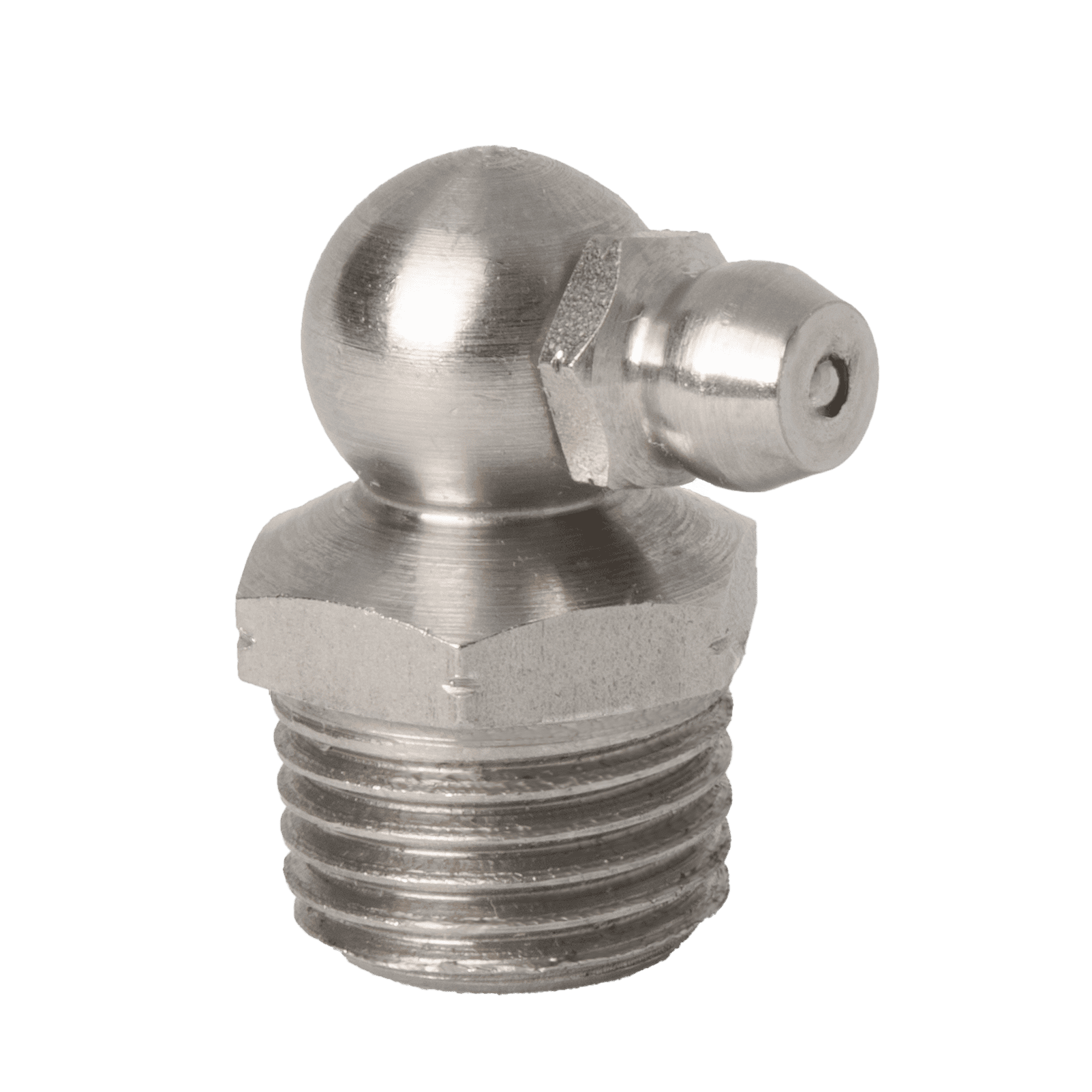

1/8 x 28 BSPT (R1/8) 90° | ||

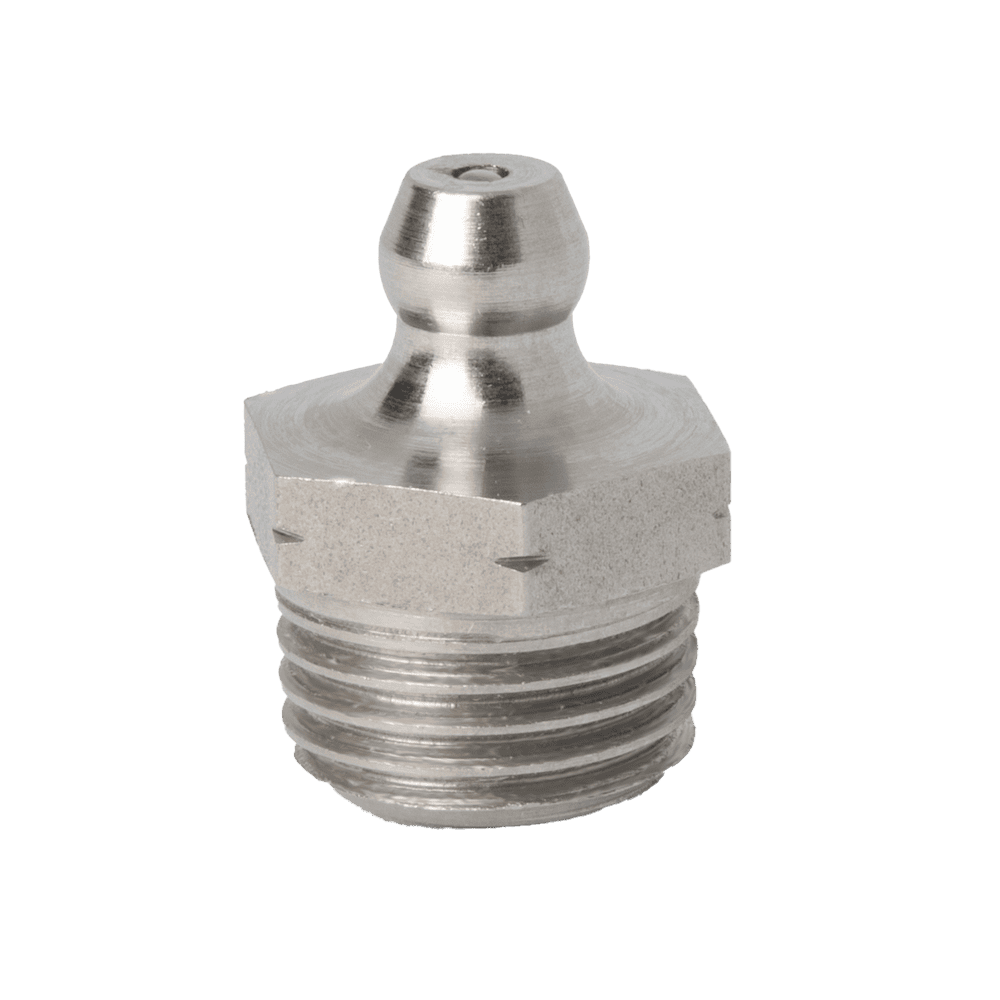

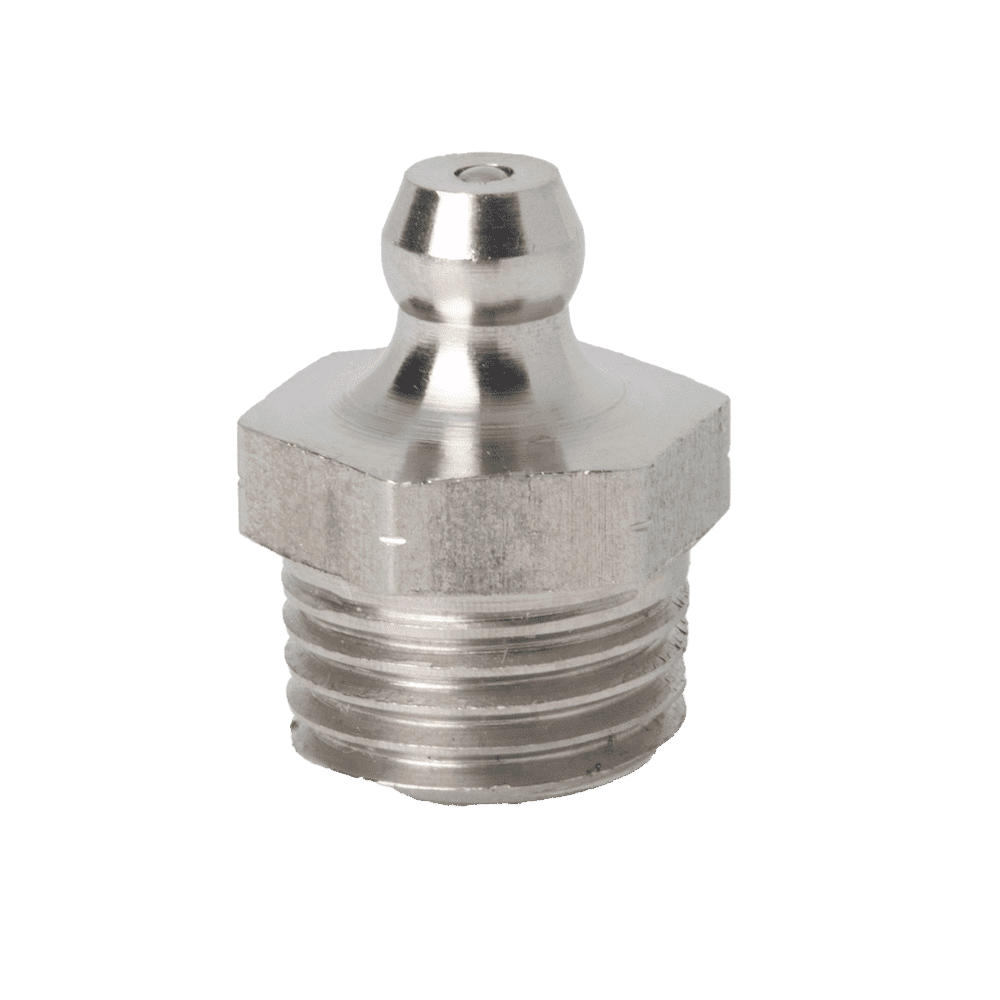

1/4 x 19 BSPT (R1/4) Straight | ||
1/4 x 19 BSPT (R1/4) 45° | ||
1/4 x 19 BSPT (R1/4) 67.5° | ||
1/4 x 19 BSPT (R1/4) 90° |
Some fittings are also available in 303 stainless & 316 stainless.
Please note: White Trivalent is preferred for RoHS and REACH compliance.
