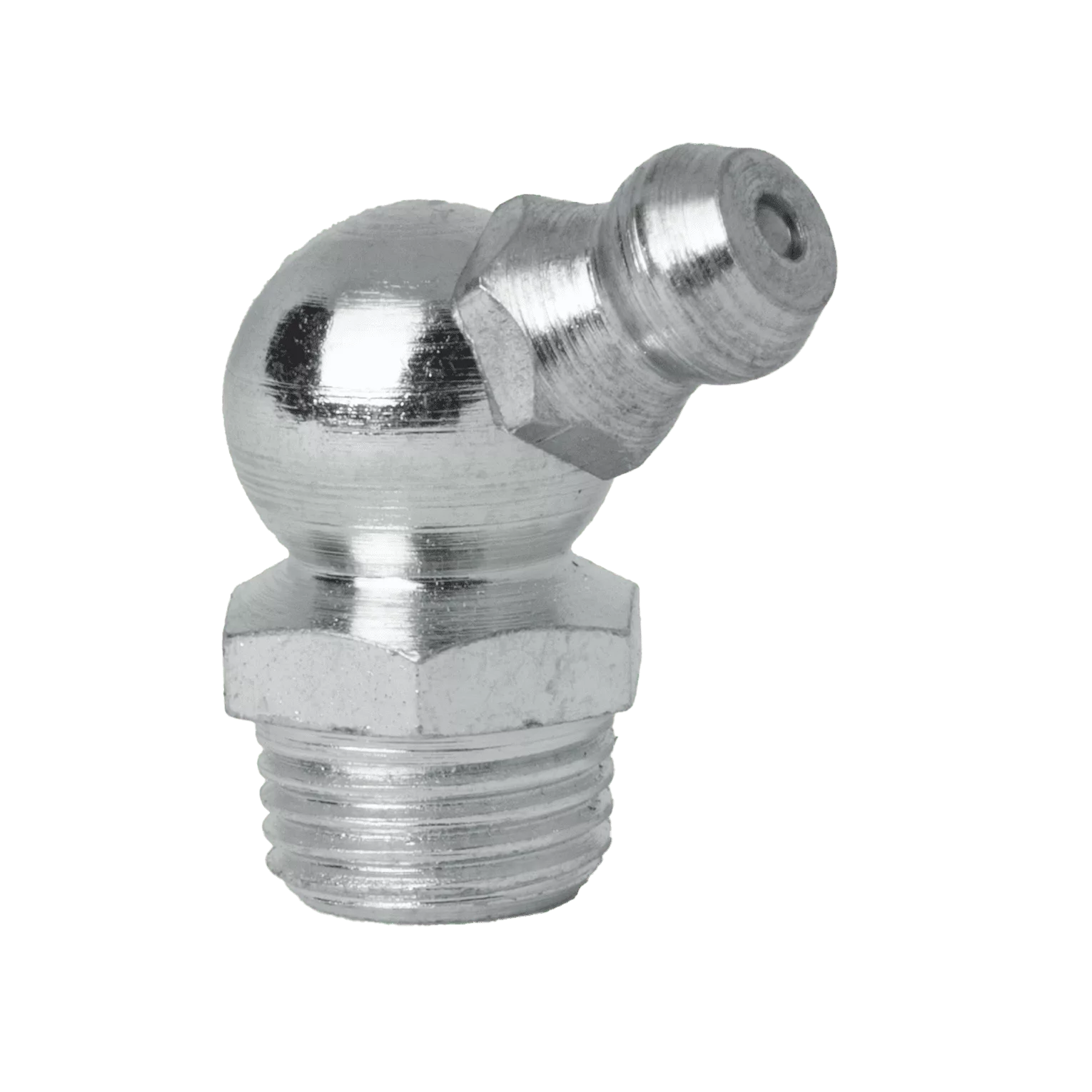

1/8″ x 28 BSPT (R1/8″) 67.5˚ Grease Fitting
616968
Description
1/8″ x 28 BSPT (R1/8″) 67.5˚ Grease Fitting
Premium Quality Steel. Case Hardened. Zinc Plated with Trivalent Passivate. RoHS and REACH compliant.
With carbon steel ball check to prevent the ingress of dirt only. Not to be used to retain back pressure.
Stress Relieved Spring to ensure long service life.
Material Certificates are available on request.
Made exclusively in Britain. Worldwide Shipping.
Additional information
| Weight | 10 kg |
|---|---|
| Angle | 67.5 |
| Ball Check | Yes |

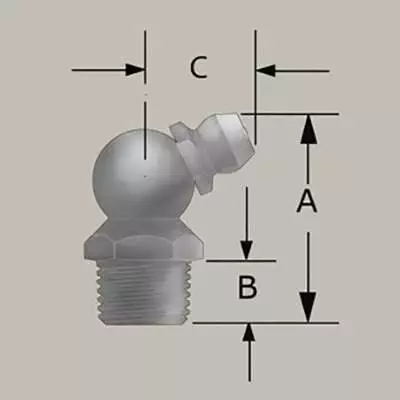

| Dimension A (Inch) | 0.81 |
| Dimension A (mm) | 20.7 |
| Dimension B (Inch) | 0.22 |
| Dimension B (mm) | 5.6 |
| Dimension C (Inch) | 0.49 |
| Dimension C (mm) | 12.5 |
| Hardened | Yes |
| Hole | 1/8 British Pipe |
| Product Type | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Thread | R1/8 x 28 BSPT |
| Thread Type | British |
| Zinc Plating | Zinc Trivalent Passivate |
