Product Code: 828501

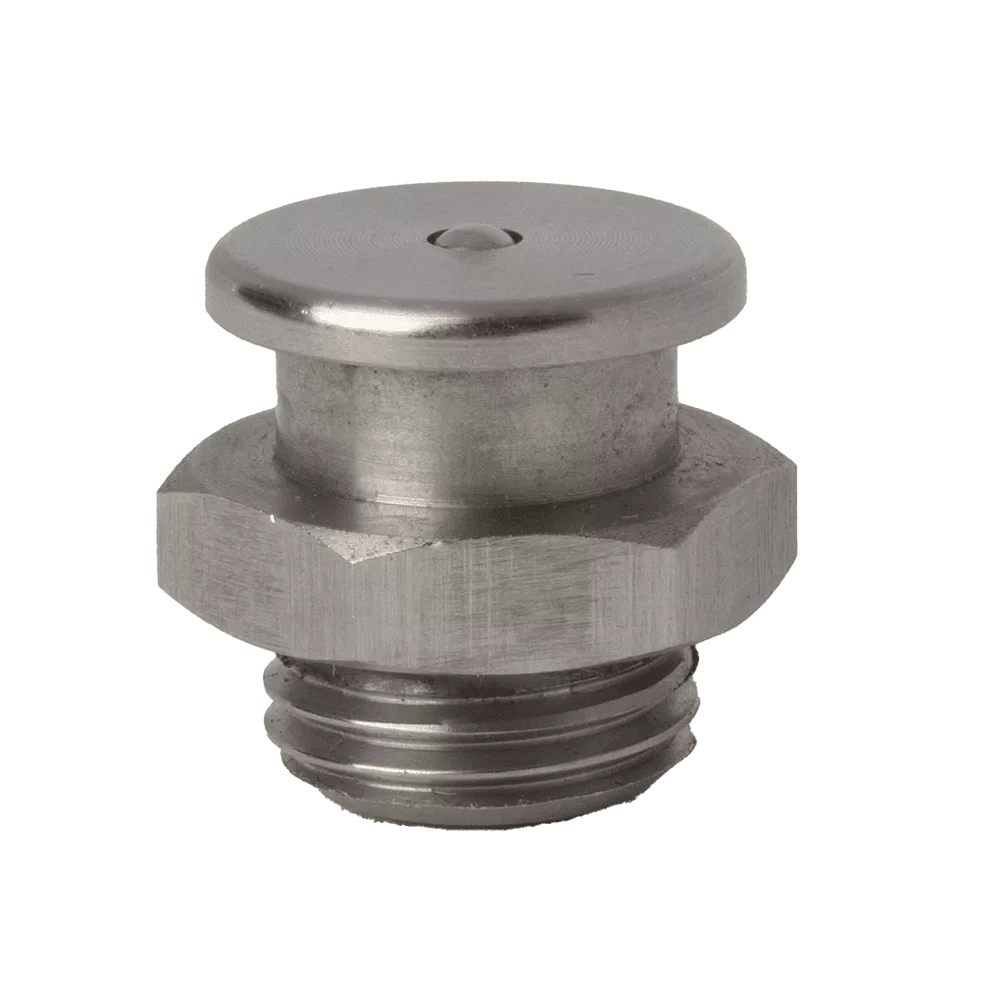

1/4″ x 19 BSP (G1/4″) 16mm DIN3404 Button Head 303 Stainless Steel
828501
Description
1/4 x 19 BSP (Parallel) 16mm Diameter Button Head to DIN 3404. Commonly Known as M1 Style.
303 (A2 or V2A) Grade Stainless Steel Body
302 Grade Stainless Steel Spring.
440c Grade Stainless Steel Ball.
Care must be taken when deciding on the correct coupler to use as there is no universal standard
Additional information
| Angle | Straight |
|---|---|
| Ball Check | Yes |
| Dimension A (Inch) | 0.66 |
| Dimension A (mm) | 16.9 |
| Dimension B (Inch) | 0.23 |
| Dimension B (mm) | 6 |
| Hardened | No |
| Hole | 1/4 British Pipe |
| International | DIN 3404 |
| Product Type | Button Head Grease Fitting |
| Material | 303 Stainless |
| Spanner Wrench Size | 17mm Hexagon |
| Thread | G1/4 x 19 BSPF |
| Thread Type | British |
| Zinc Plating | No |
