Product Code: 811445

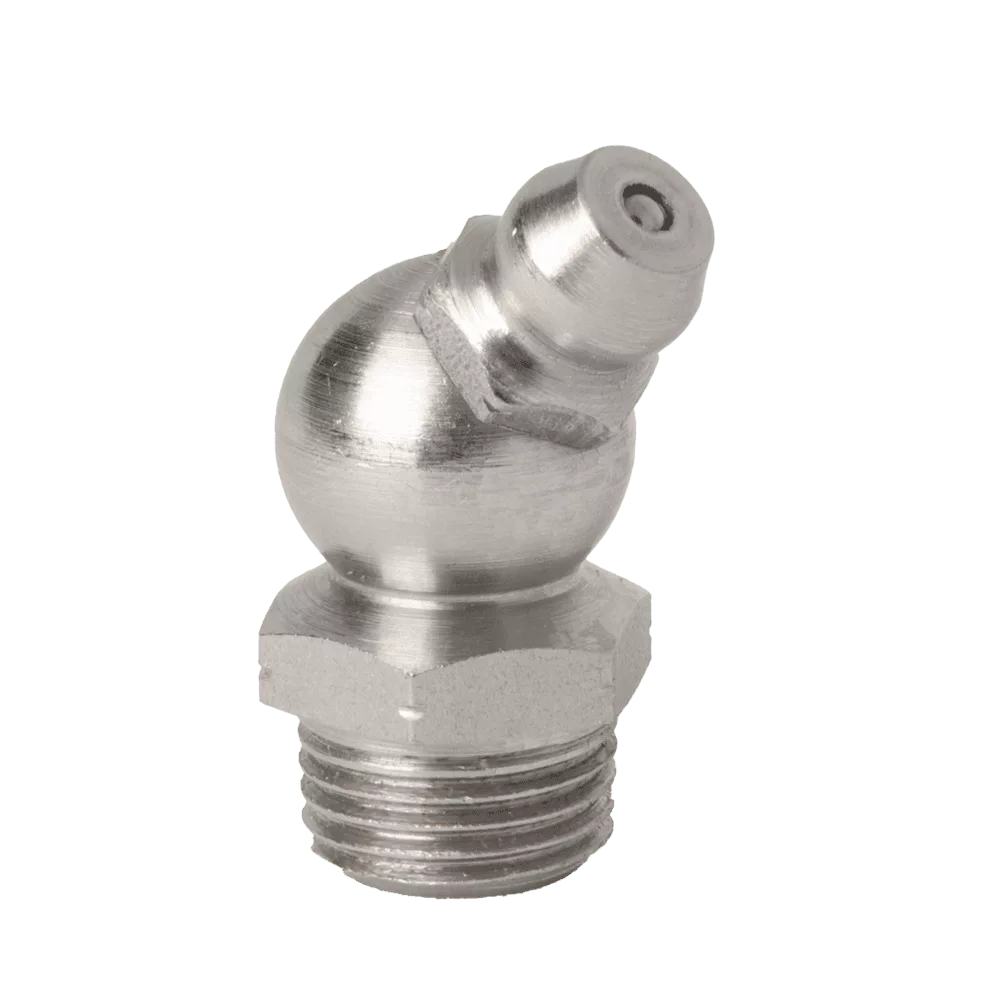

1/8″ x 28 BSPT (R1/8″) 45˚ Grease Fitting 303 Stainless Steel
811445
Description
1/8″ x 28 BSPT (R1/8″) Hydraulic Angle 45˚ Grease Fitting.
303 Grade (A2 or V2A) Stainless Steel Body. 302 Grade Stainless Steel Spring. 440C Grade Stainless Steel Ball.
Material Certificates Available.
Also Available in 316 Grade Stainless Steel. code Number 316R1845
Additional information
Weight | 10 kg |
---|---|
Angle | 45 |
Ball Check | Yes |

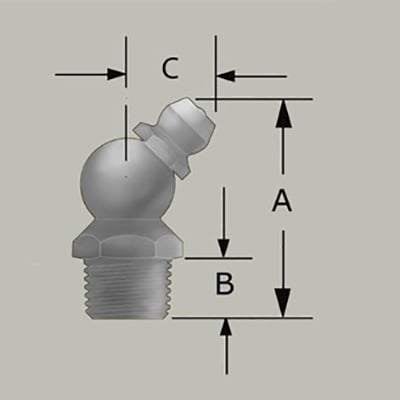

Dimension A (Inch) | 0.91 |
Dimension A (mm) | 23.1 |
Dimension B (Inch) | 0.23 |
Dimension B (mm) | 5.5 |
Dimension C (Inch) | 0.41 |
Dimension C (mm) | 10.4 |
Hardened | No |
Hole | 1/8 British Pipe |
Product Type | Hydraulic Grease Nipple |
Material | 303 Stainless |
Spanner Wrench Size | 11mm Hexagon |
Thread | R1/8 x 28 BSPT |
Thread Type | British |
Zinc Plating | No |
