Product Code: 827101
1/8″ x 28 BSP (G1/8″) Industrial Button Head 303 Stainless Steel
827101
Description

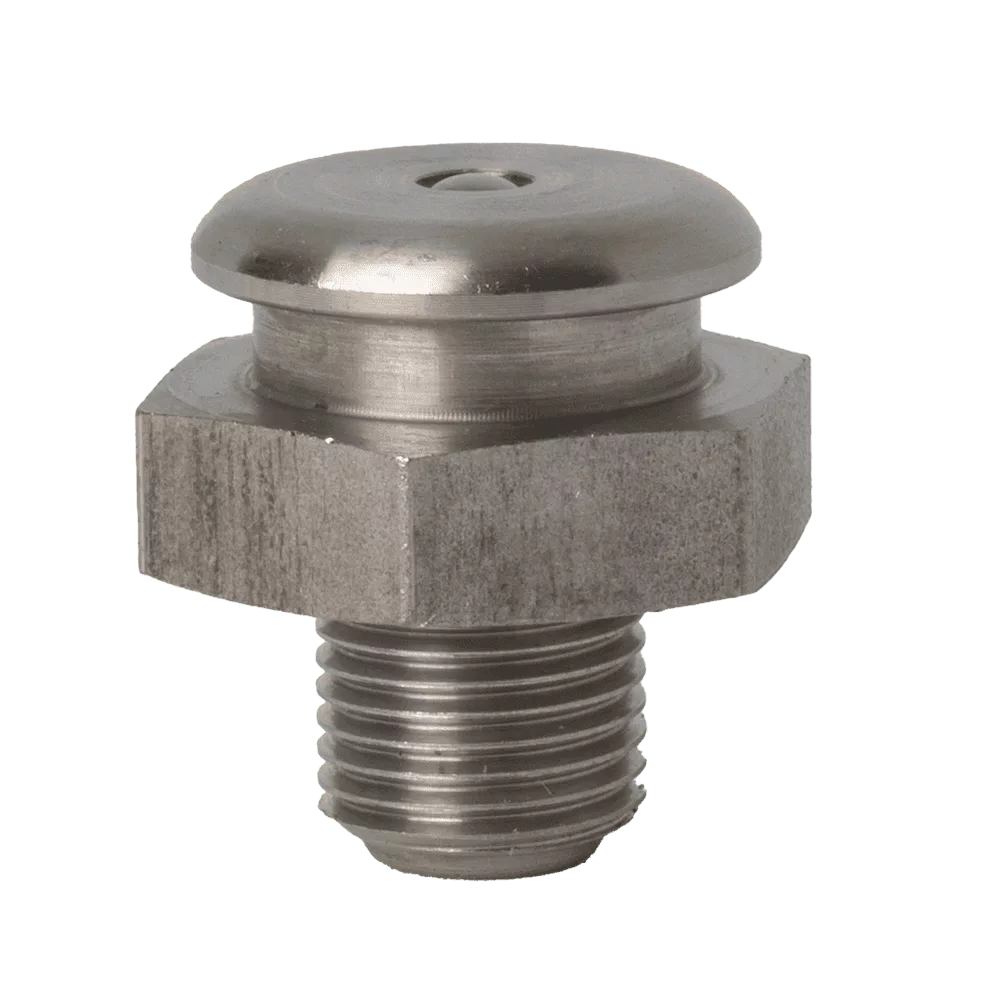

1/8″ x 28 BSP (G1/8″) Stainless Steel Industrial Button Head.
303 (A2 or V2a) Grade Stainless Steel Body.
302 Grade Stainless Steel Spring. Stress Relieved for prolonged service life.
440c Grade Stainless Steel Ball to prevent the ingress of contaminants.
Material Certificates Available.
Additional information
| Angle | Straight |
|---|---|
| Ball Check | Yes |

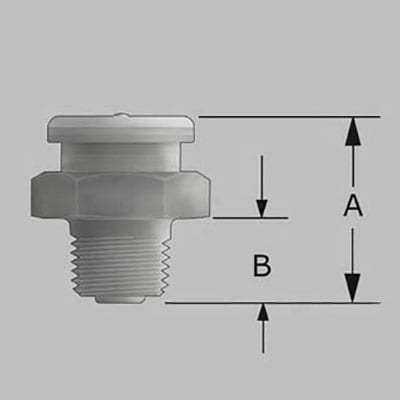

| Dimension A (Inch) | 0.8 |
| Dimension A (mm) | 20.3 |
| Dimension B (Inch) | 0.36 |
| Dimension B (mm) | 9.1 |
| Hardened | No |
| Hole | 1/8 British Pipe |
| International | Head form to BS1486Pt2 |
| Product Type | Button Head Grease Fitting |
| Material | 303 Stainless |
| Spanner Wrench Size | 18mm Hexagon |
| Thread | G1/8 x 28 BSPF |
| Thread Type | British |
| Zinc Plating | No |
