Product Code: BR326118

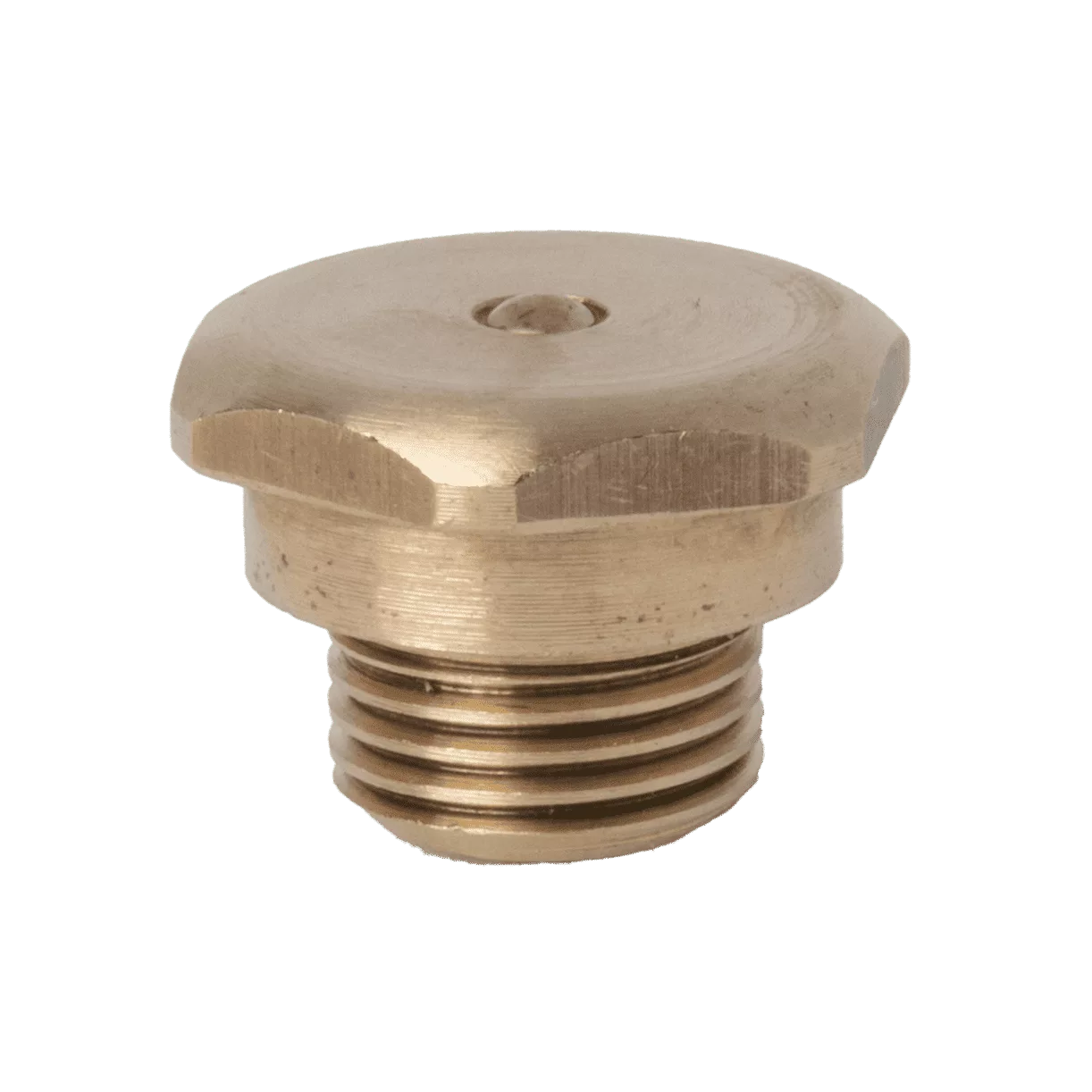

1/8″ x 28 BSP (G1/8″) British Button Head Brass Grease Fitting
BR326118
Description
1/8″ x 28 BSP (G1/8″) Single Hexagon British Button Head. Also referred to as T1 Style.
Brass Body with Phosphor Bronze Ball.
Material Certificates Available.
Additional information
| Angle | Straight |
|---|---|
| Ball Check | Yes |
| Dimension A (Inch) | 0.47 |
| Dimension A (mm) | 11.8 |
| Dimension B (Inch) | Thread length 0.24 |
| Dimension B (mm) | thread length 6.1 |
| Hardened | No |
| Hole | 1/8 British Pipe |
| Product Type | Button Head Grease Fitting |
| Material | Brass/Bronze |
| Spanner Wrench Size | 15mm Hexagon |
| Thread | G1/8 x 28 BSPF |
| Thread Type | British |
| Zinc Plating | No |
