Product Code: 824001

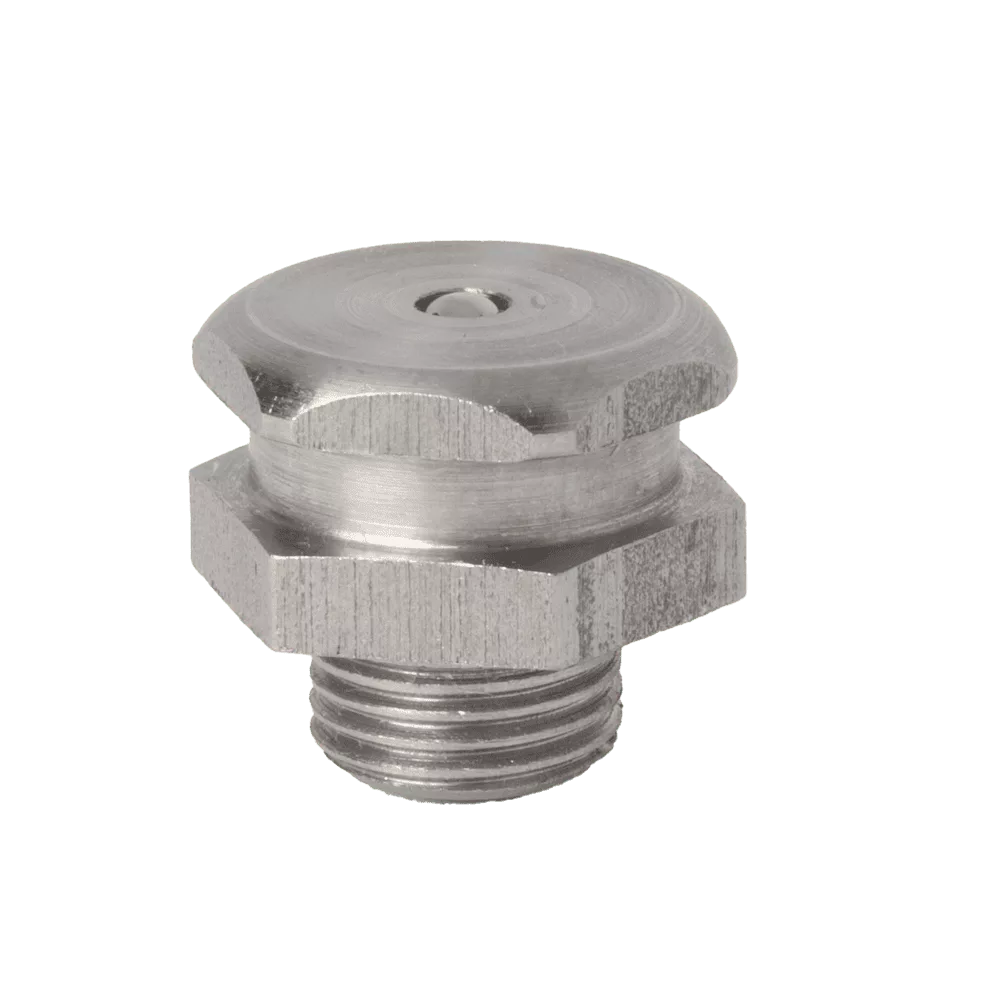

1/8″ x 28 BSP (G1/8″) British Button Head 303 Stainless Steel
824001
Description
1/8″ x 28 BSP (G1/8″) British Button Head Grease Fitting. (T1/B)
303 Grade (A2 or V2A) Stainless Steel Body. 302 Grade Stainless Steel Spring. 440C Grade Stainless Steel Ball.
Material Certificates Available.
Also Available in 316 Grade Stainless Steel. Code Number 316324001
Additional information
| Weight | 13 kg |
|---|---|
| Angle | Straight |
| Ball Check | Yes |

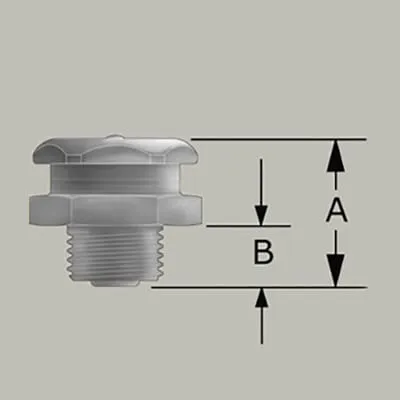

| Dimension A (Inch) | 0.59 |
| Dimension A (mm) | 15 |
| Dimension B (Inch) | 0.24 |
| Dimension B (mm) | 6.1 |
| Hardened | No |
| Hole | 1/8 British Pipe |
| Product Type | Button Head Grease Fitting |
| Material | 303 Stainless |
| Spanner Wrench Size | 15mm Hexagon |
| Thread | G1/8 x 28 BSPF |
| Thread Type | British |
| Zinc Plating | No |
