Product Code: 316R14

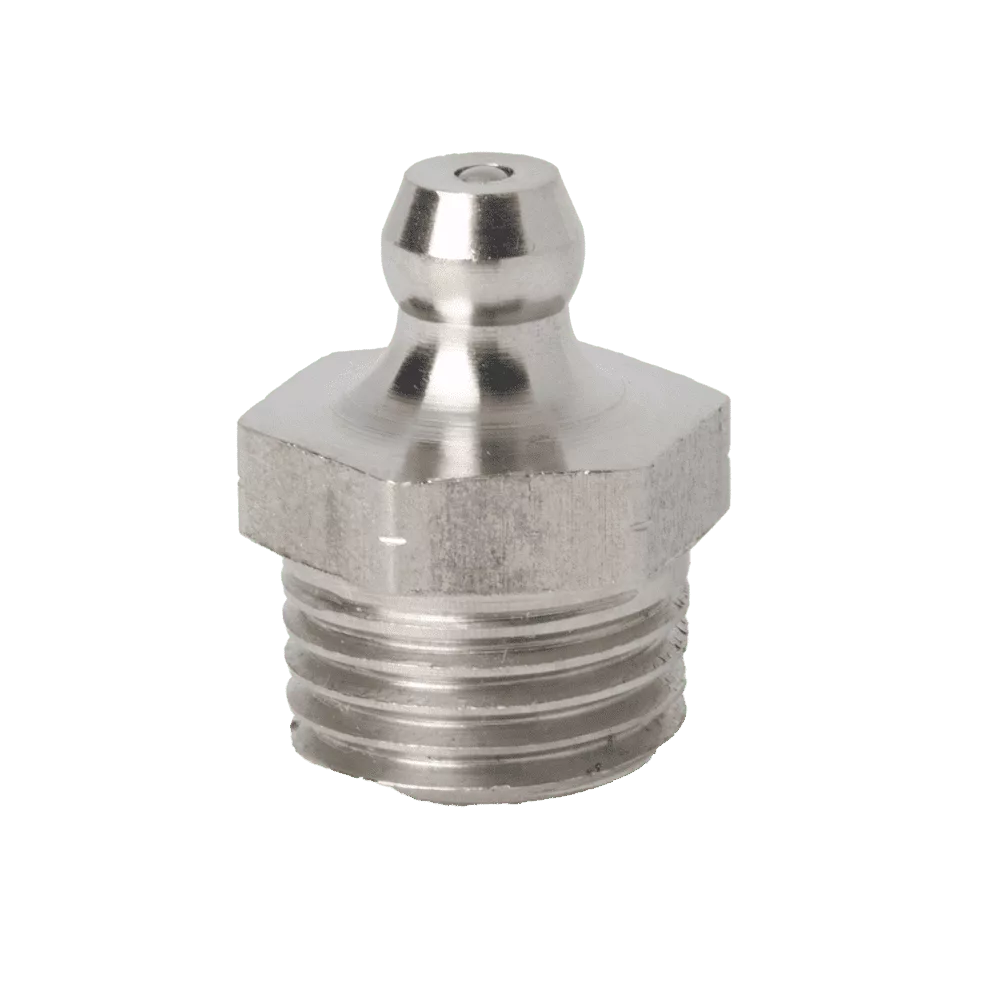

1/4″ x 19 BSPT (R1/4″) Straight Grease Fitting 316 Stainless Steel
316R14
Description
1/4″ x 19 BSPT (R1/4″) Hydraulic Straight Grease Fitting. Form A according to DIN 71412. (H1)
316 (A4) Stainless Steel Body, Ball and Stress Relieved Spring.
Material Certification Available.
303 Stainless Steel Version also available. Code Number 808103.
Additional information
| Weight | 6 kg |
|---|---|
| Angle | Straight |
| Ball Check | Yes |
| Dimension A (Inch) | 0.8 |
| Dimension A (mm) | 20.3 |
| Dimension B (Inch) | 0.33 |
| Dimension B (mm) | 8.4 |
| Hardened | No |
| Hole | 1/4 British Pipe |
| Product Type | Hydraulic Grease Nipple |
| Material | 316 Stainless |
| Spanner Wrench Size | 14mm Hexagon |
| Thread | R1/4 x 19 BSPT |
| Thread Type | British |
| Zinc Plating | No |
