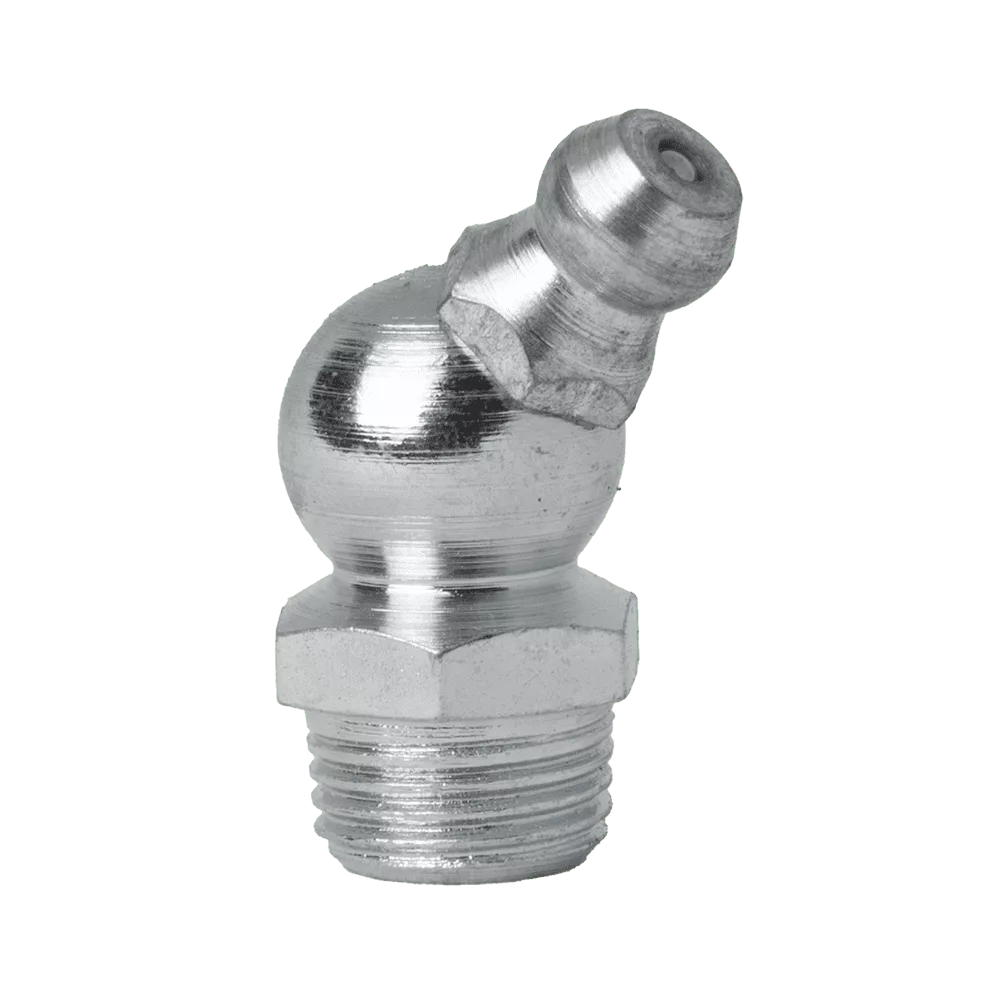

1/8″ x 28 BSPT (R1/8″) 45˚ Grease Fitting
616946
Description
1/8″ x 28 BSPT (R1/8″) 45° Angle Hydraulic Grease Fitting.
Premium Quality Steel. Case Hardened Tip. Zinc Plated with Trivalent Passivate. RoHS and REACH compliant.
With carbon steel ball check to prevent the ingress of dirt only. Not to be used to retain back pressure.
Stress Relieved Spring to ensure long service life.
Material Certificates are available on request.
Made exclusively in Britain. Worldwide Shipping.
Also available with Zinc Yellow Chromate Finish. Code Number 616945. Limited Availability.
Available in 303 Stainless Steel 811445 and 316 Stainless Steel 316R1845
Additional information
| Angle | 45 |
|---|---|
| Ball Check | Yes |
| Dimension A (Inch) | 0.95 |
| Dimension A (mm) | 24.1 |
| Dimension B (Inch) | 0.22 |
| Dimension B (mm) | 5.5 |
| Dimension C (Inch) | 0.42 |
| Dimension C (mm) | 10.7 |
| Hardened | Yes |
| Hole | 1/8 British Pipe |
| International | DIN 71412 |
| Product Type | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Spanner Wrench Size | 11mm Hexagon |
| Thread | R1/8 x 28 BSPT |
| Thread Type | British |
| Zinc Plating | Zinc Trivalent Passivate |
