BSP Thread

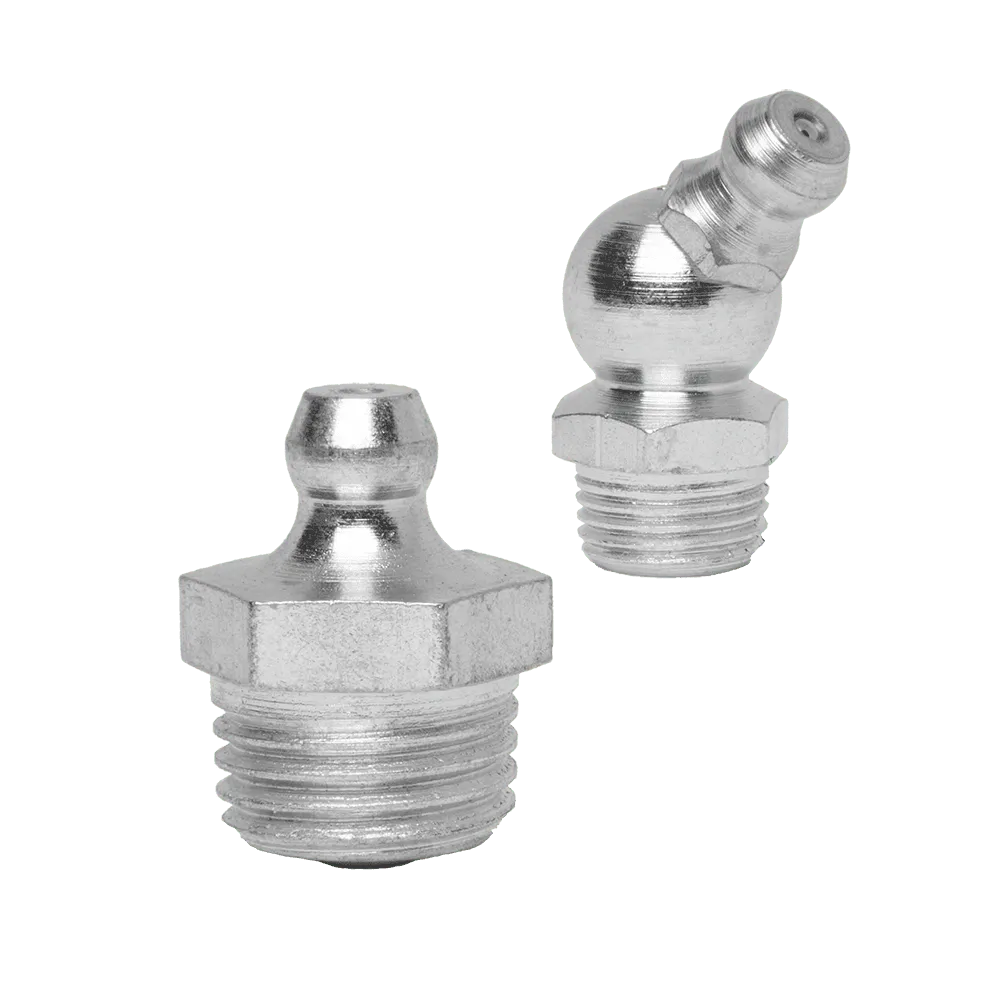

Grease Fittings
BSP fittings can be either tapered BSPT, or parallel BSPP (or BSPF). BSP threads have a 55° thread form.
Tapered Threads are also known as R series and Parallel threads G series. e.g. R1/8″ = 1/8″ x 28 BSPT
For standard grease fittings, the 1:16 tapered design is preferred as it seals in a mating parallel hole without the need for sealant. The reference 1/8 or 1/4 does not refer to the diameter of the thread. It is an old reference to the pipe size onto which the thread would be used.
BSP - Standard Fittings
Below are our most common BSP Thread fittings. To view the product please click the product code.
Kingfisher Code | Kingfisher Code | Description |
White Trivalent RoHS, REACH Compliant | 303 (A2) Stainless Steel | |
1/8 x 28 BSPT (R1/8) Straight | ||
1/8 x 28 BSPT (R1/8) 45° | ||
1/8 x 28 BSPT (R1/8) 67.5° | ||
1/8 x 28 BSPT (R1/8) 90° | ||
1/4 x 19 BSPT (R1/4) Straight | ||
1/4 x 19 BSPT (R1/4) 45° | ||
1/4 x 19 BSPT (R1/4) 67.5° | ||
1/4 x 19 BSPT (R1/4) 90° |
Some fittings are also available in 303 stainless & 316 stainless.
Please note: White Trivalent is preferred for RoHS and REACH compliance.
