Button Head
Grease Fittings

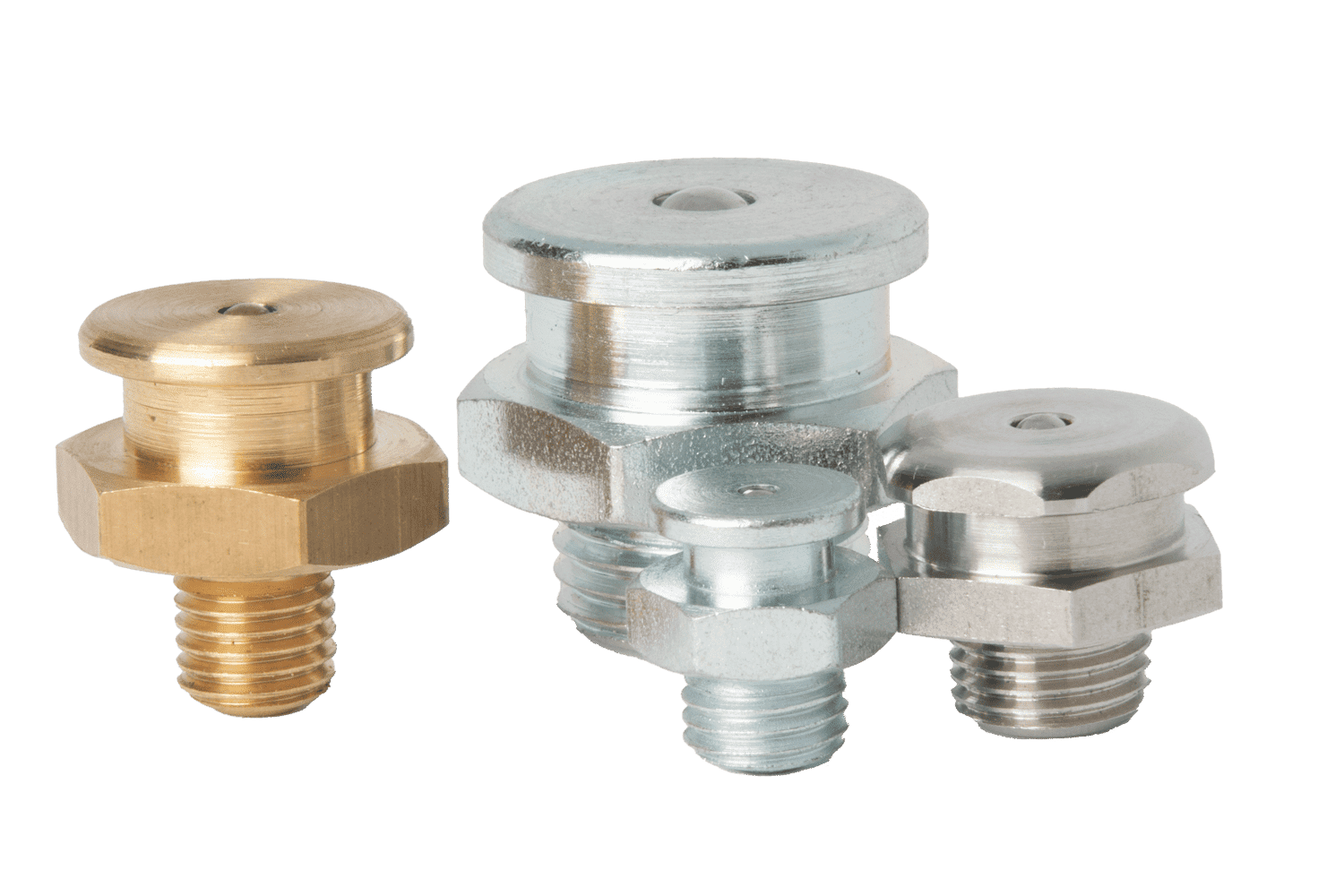

Button Head fittings are so called because of the shape of the top that resembles a button. These use a slide-on coupler, which secures it to the fitting whilst greasing.
There are 7 main types of button head fittings. The British have 2 types. A double hex version and the heavier duty Industrial types.
The German (DIN) have 3 types defined by the button diameter. 10mm, 16mm and 22mm.
The American style has 2 types. 5/8” and 7/8”.
Button Head - Standard Fittings
Below are our most common Button Head Fittings. To view the product please click the product code.
Kingfisher Code | Kingfisher Code | Description |
White Trivalent | Yellow Chromate | |

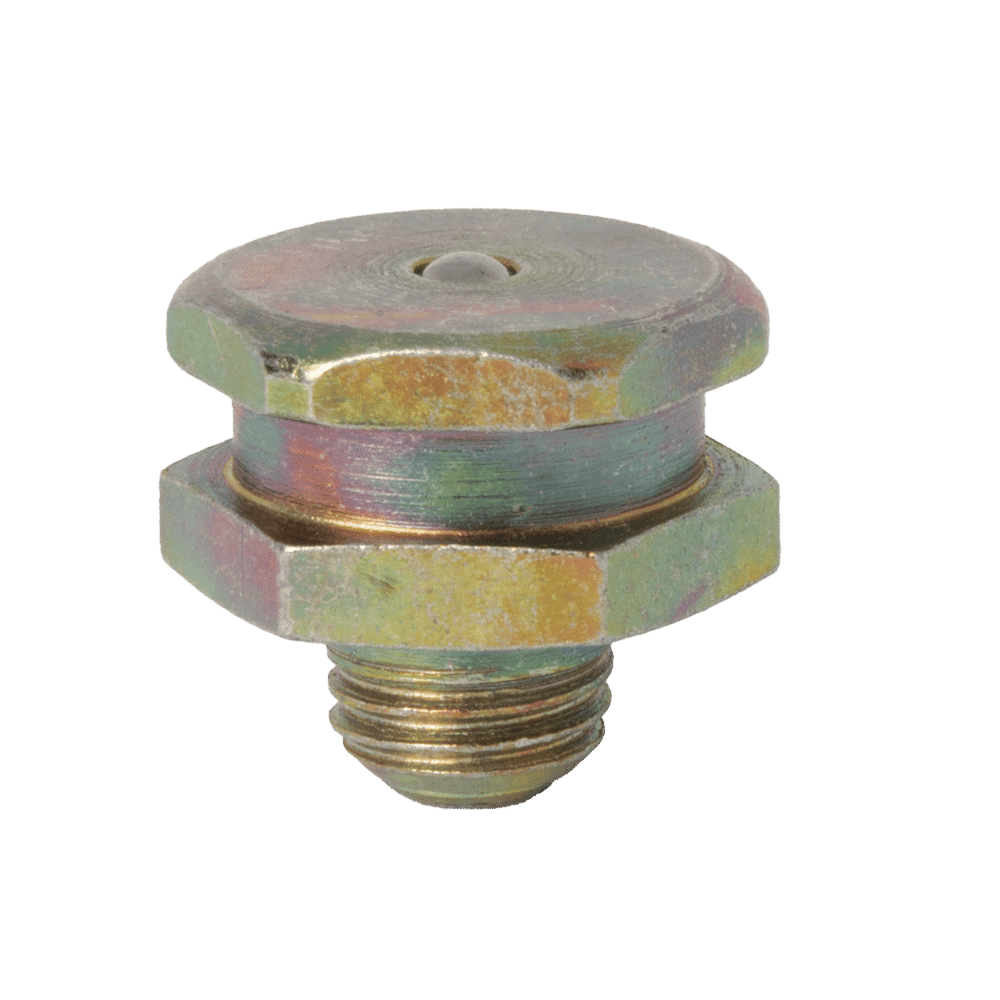

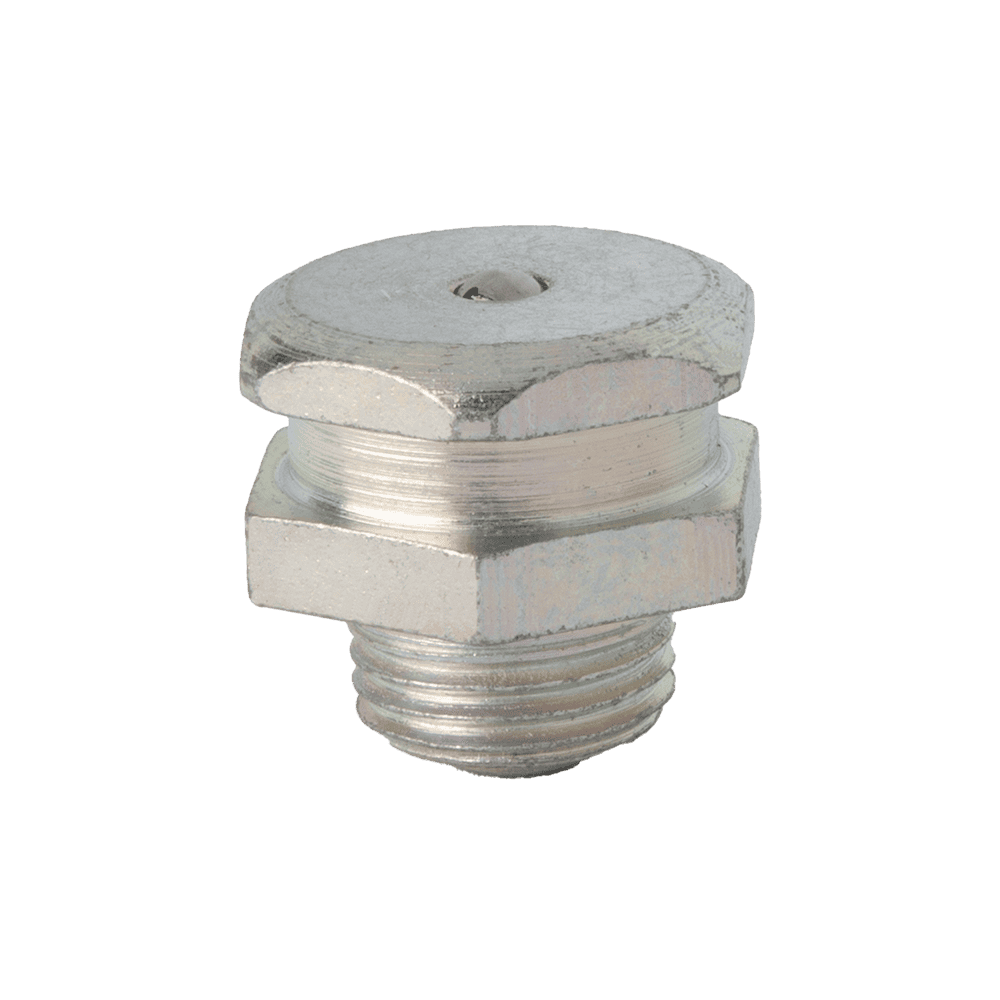

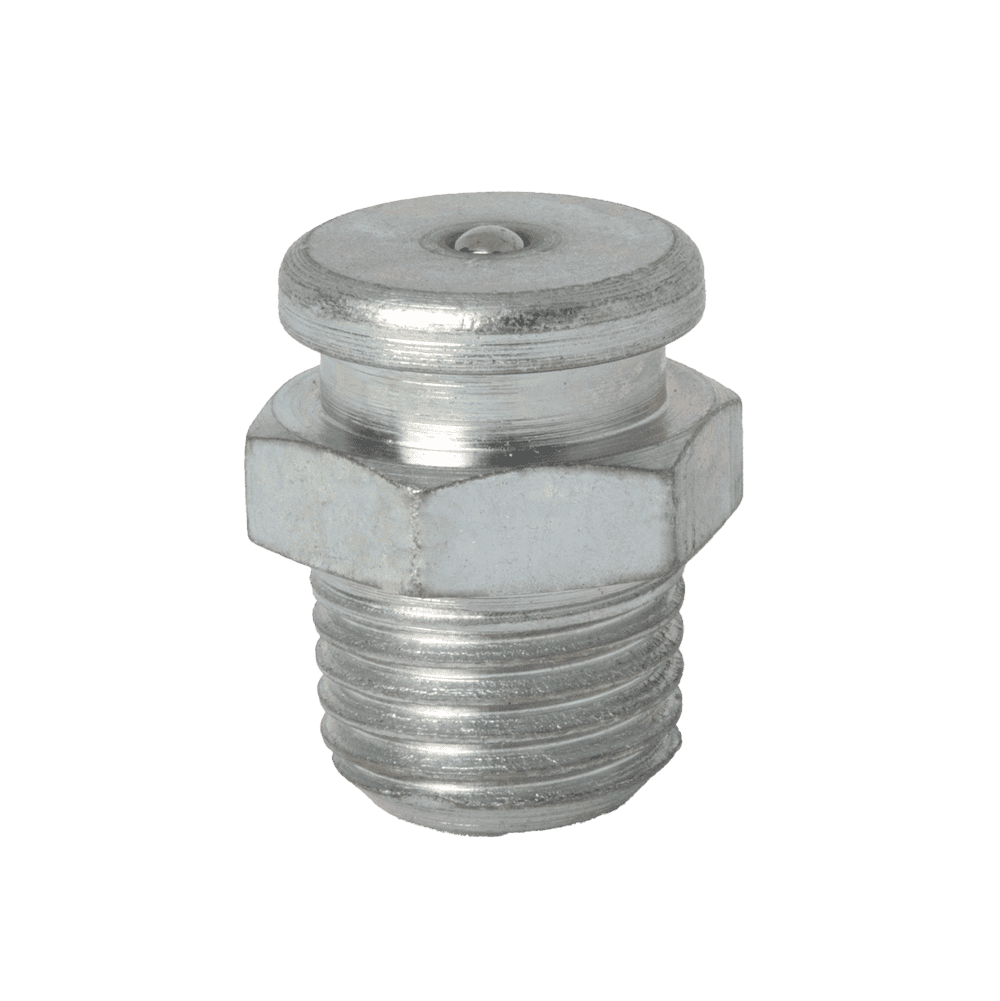

1/8 x 28 BSPF (G1/8) Button Head | ||
1/4 x 19 BSPF (G1/4) Button Head | ||

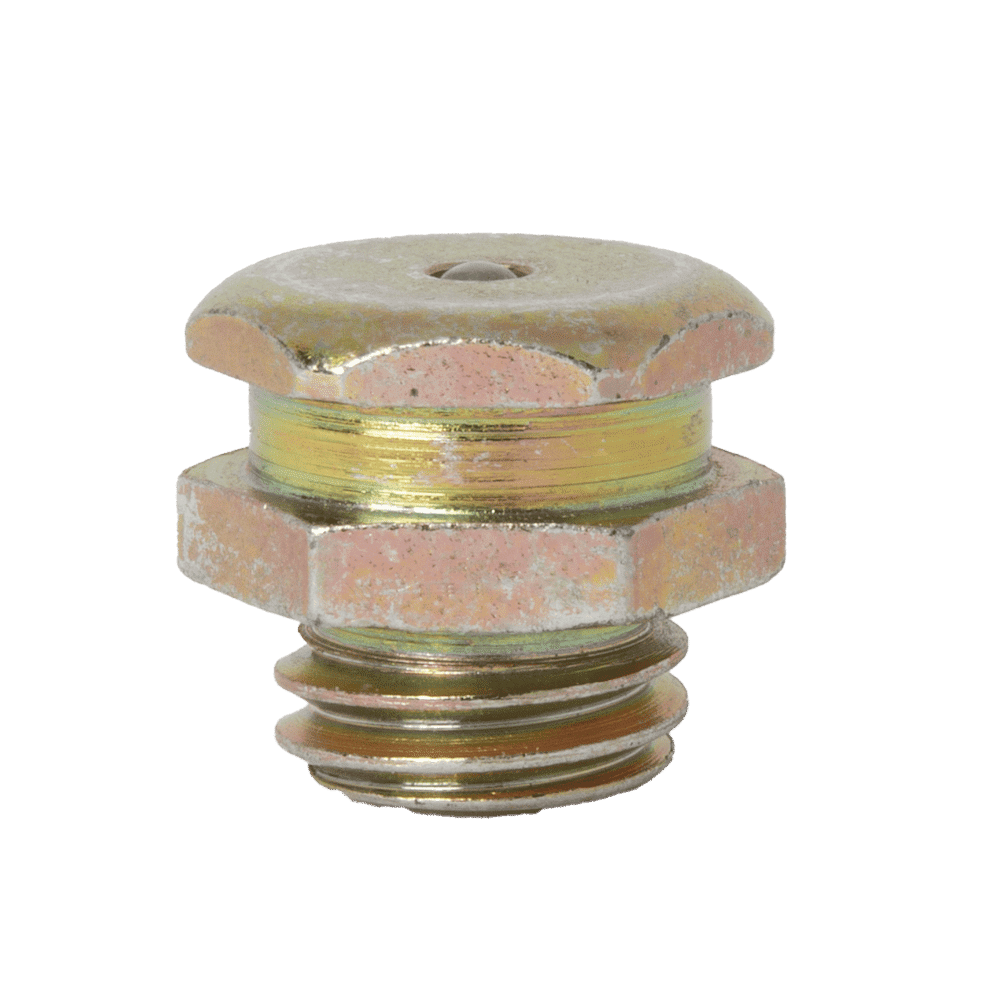

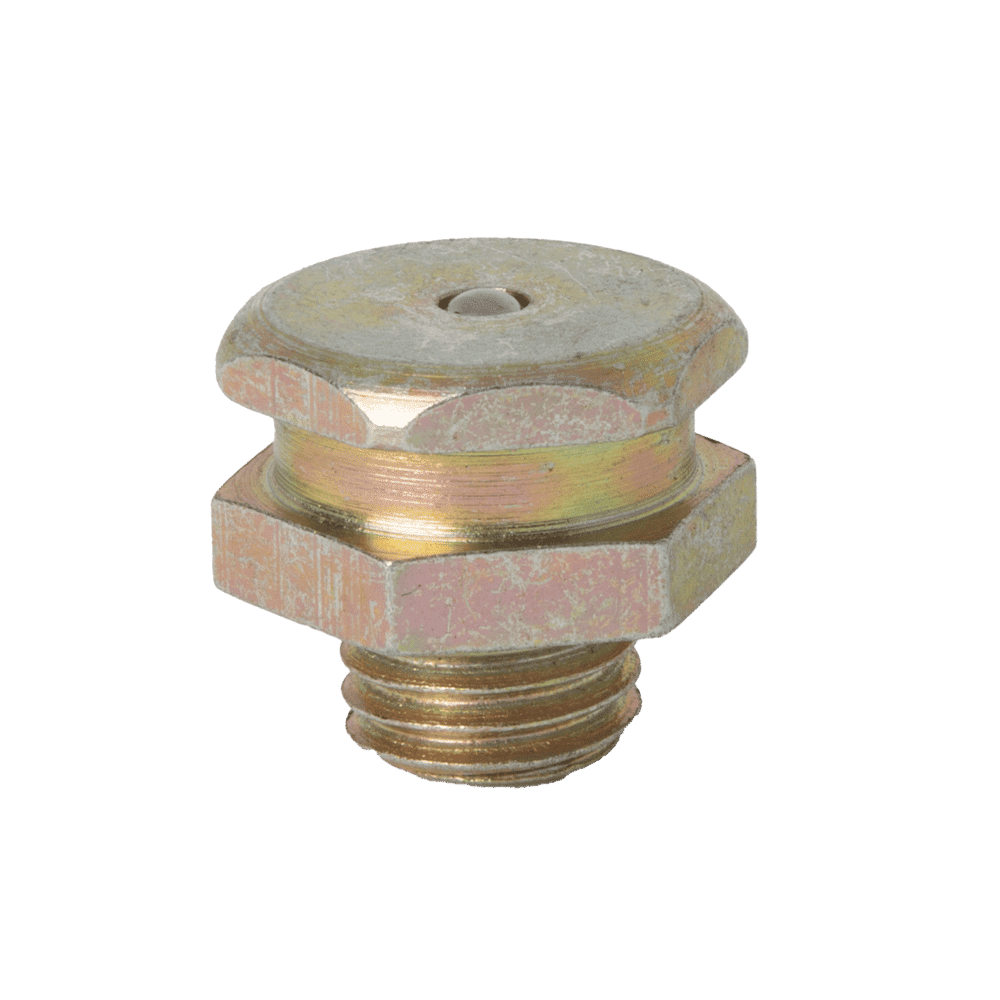

1/8 x 28 BSPF (G1/8) Industrial Button Head | ||
1/4 x 19 BSPF (G1/4) Industrial Button Head | ||

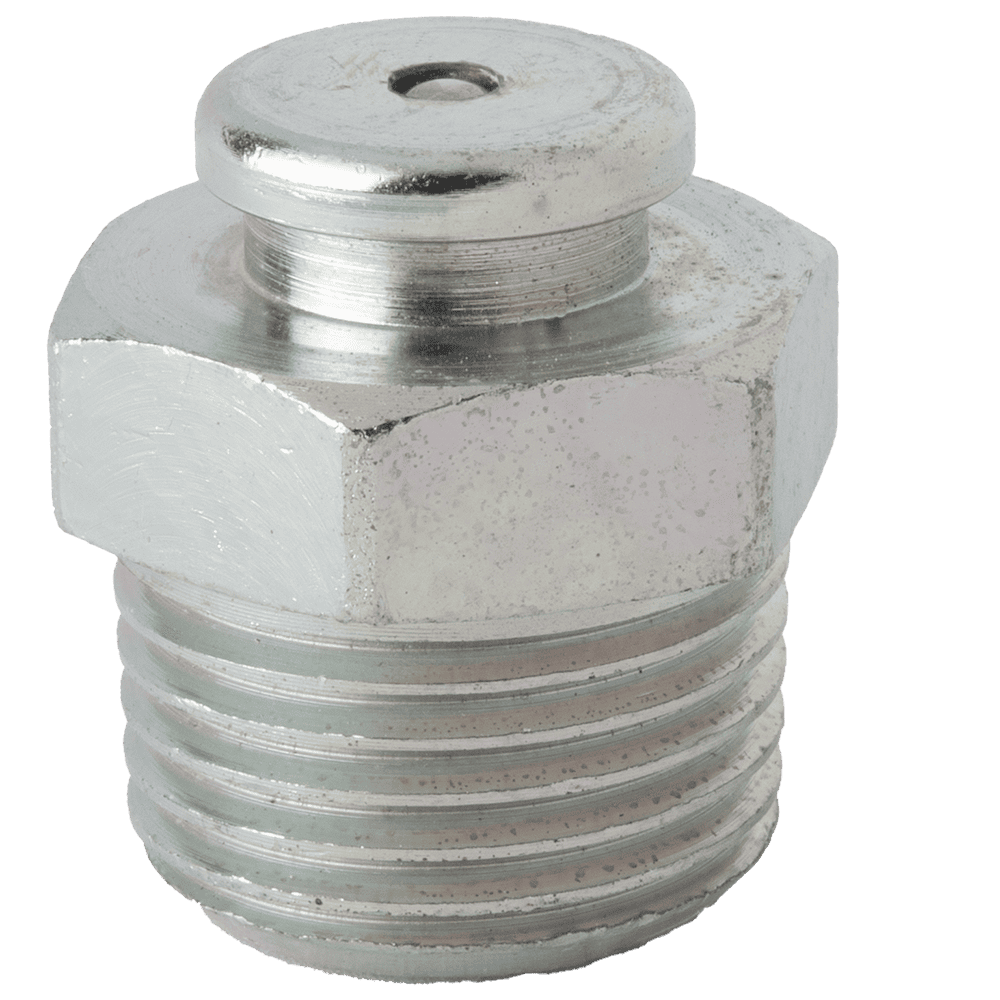

3/8 x 19 BSPF (G3/8) Industrial Button Head | ||

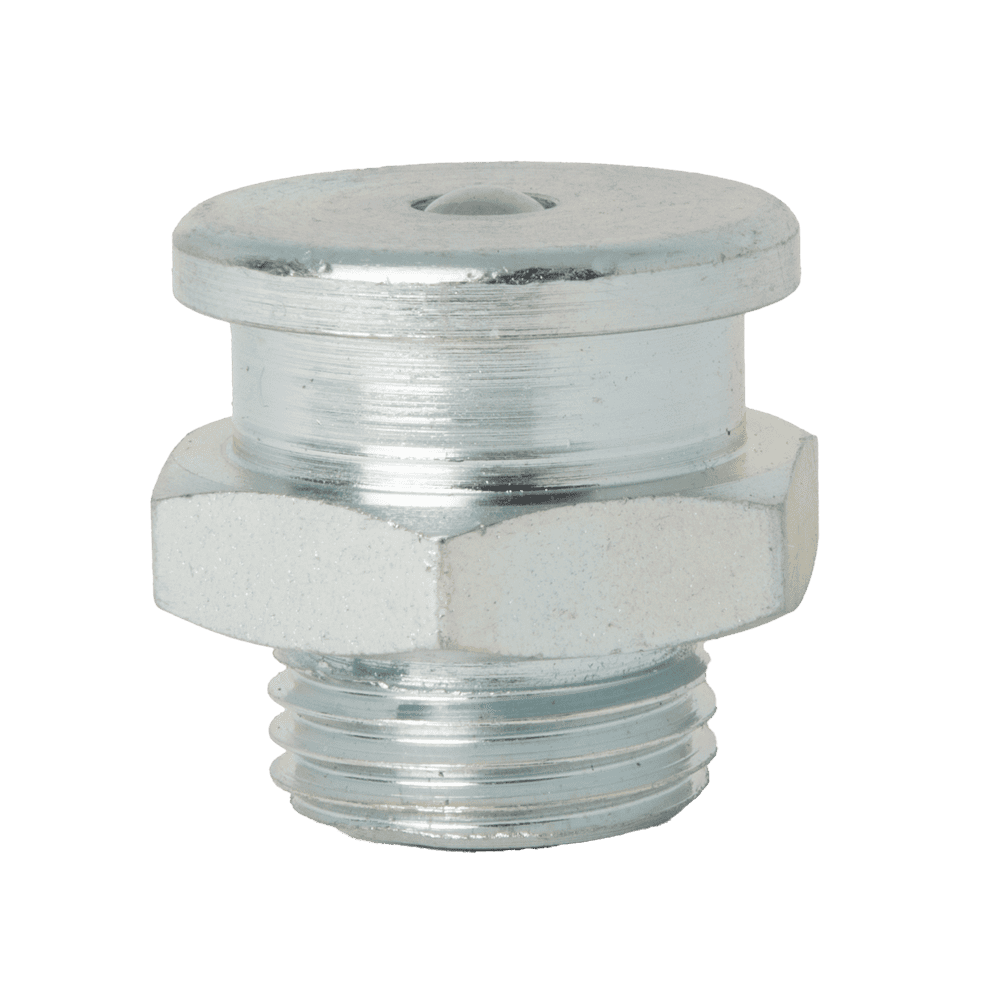

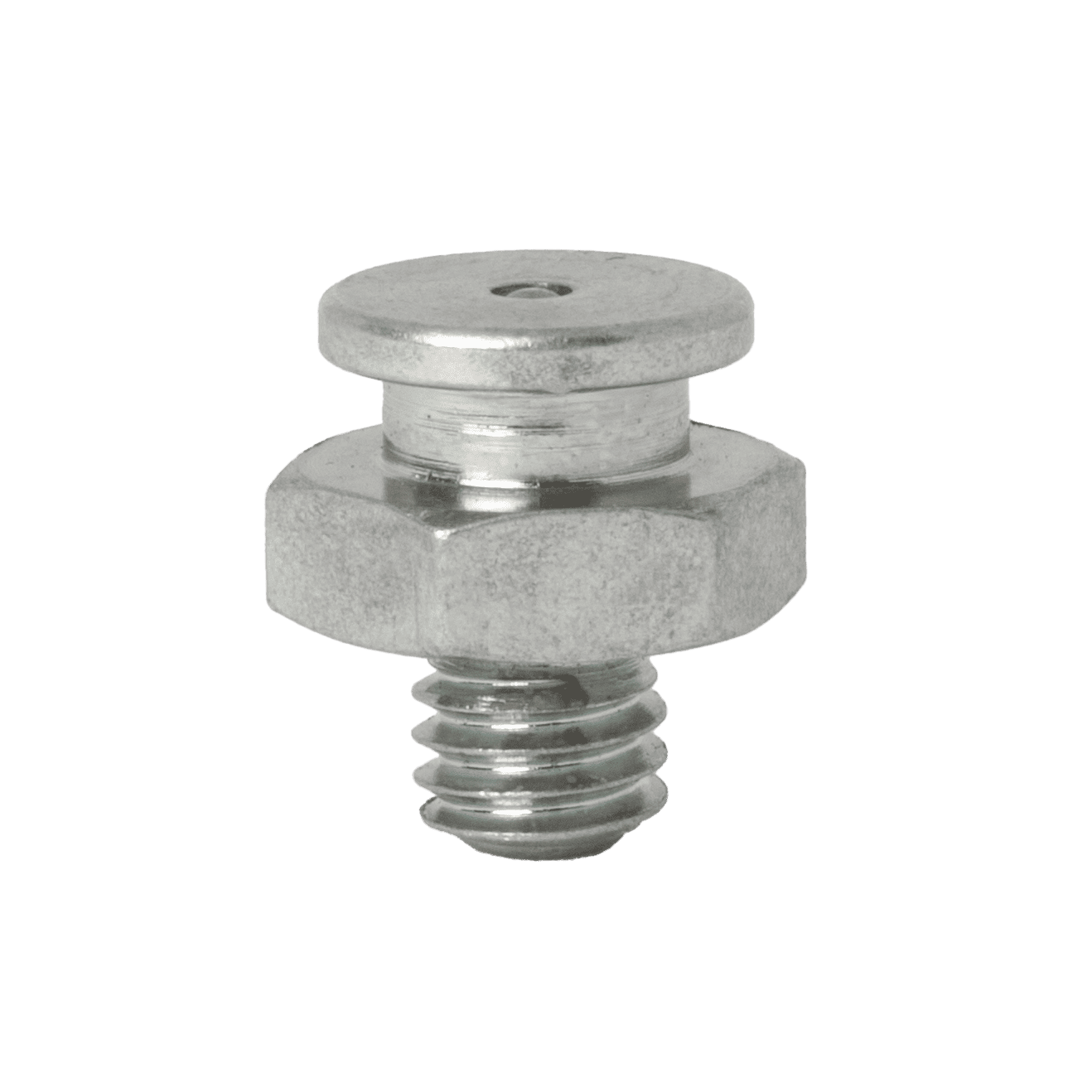

N/A | 1/8 x 28 BSPF (G1/8) DIN 16mm Button Head | |

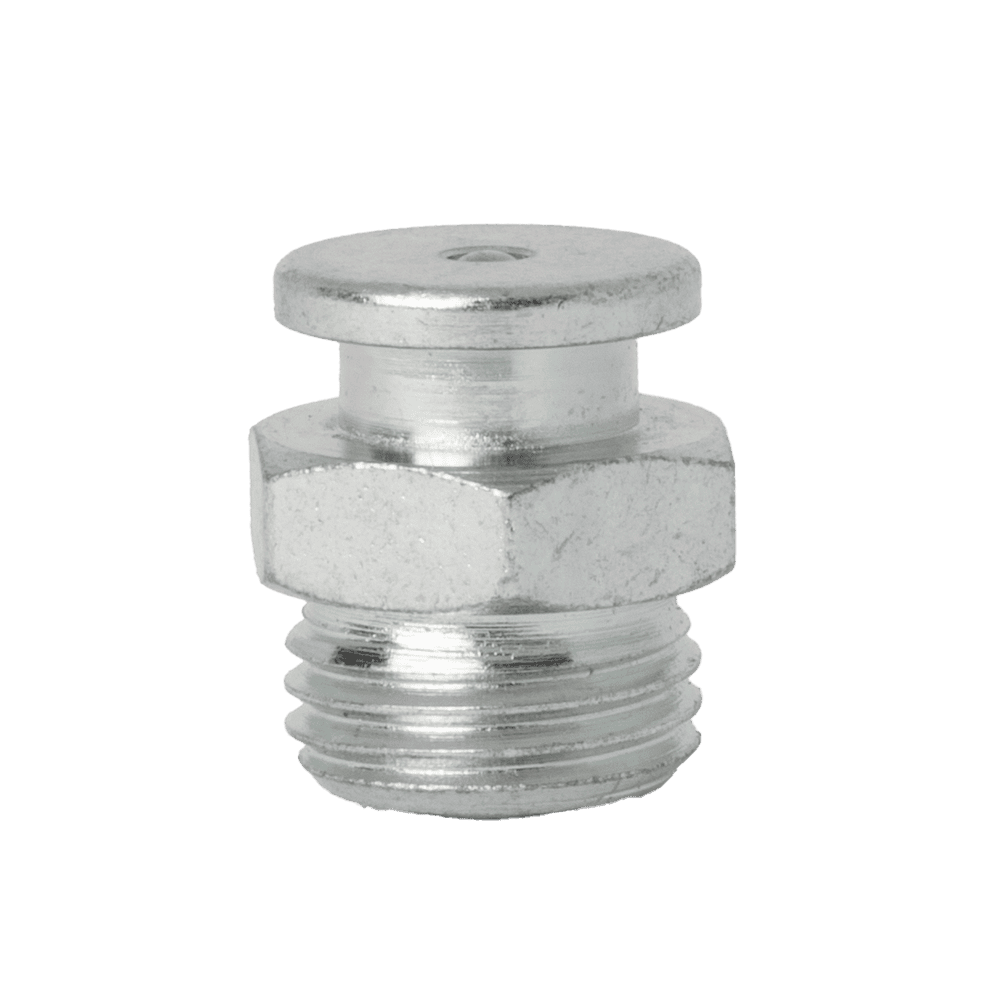

N/A | 1/4 x 19 BSPF (G1/4) DIN 16mm Button Head | |

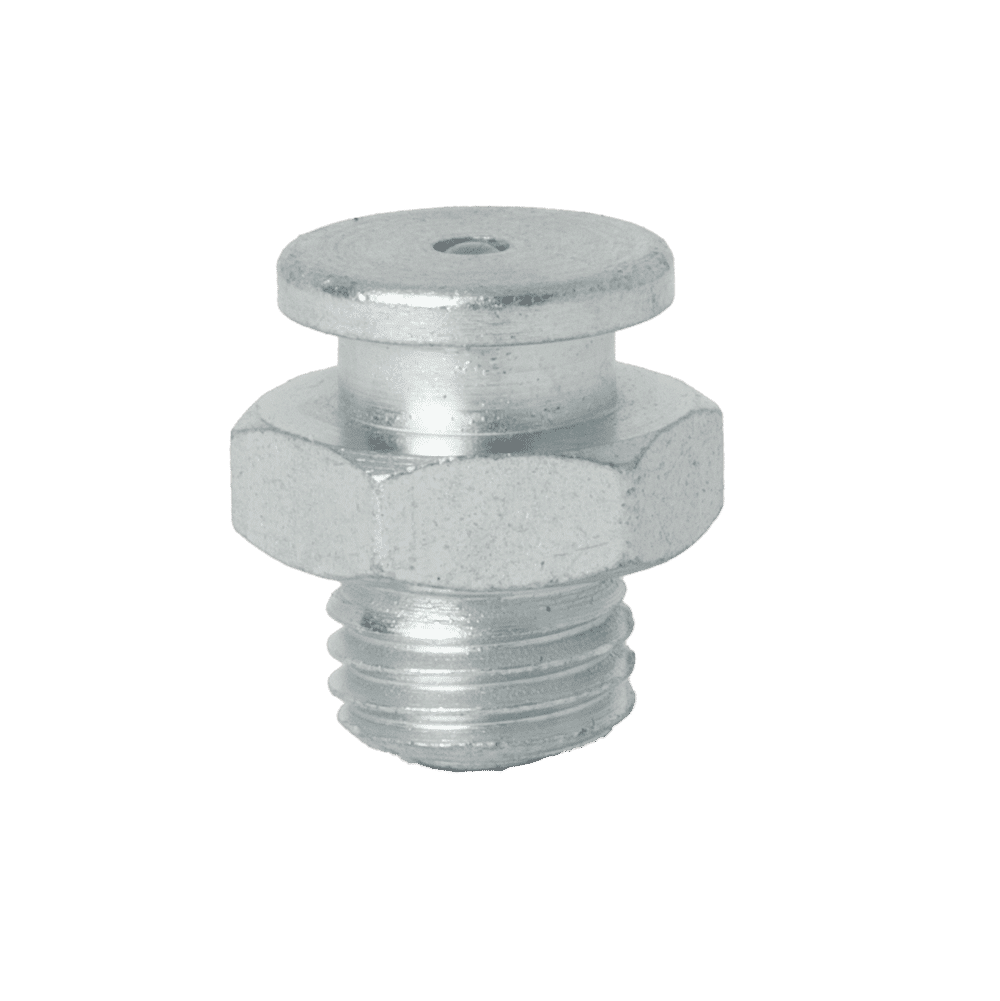

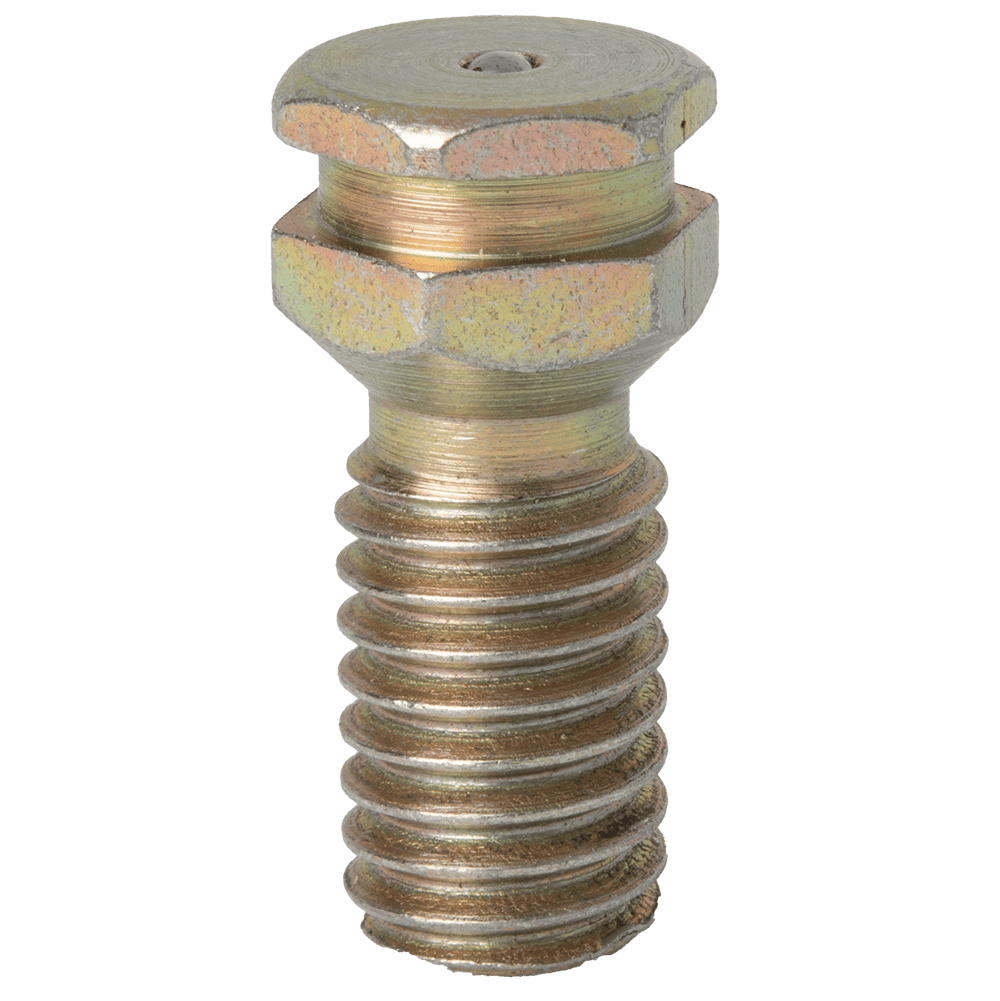

N/A | M10 x 1 DIN 16mm Button Head | |

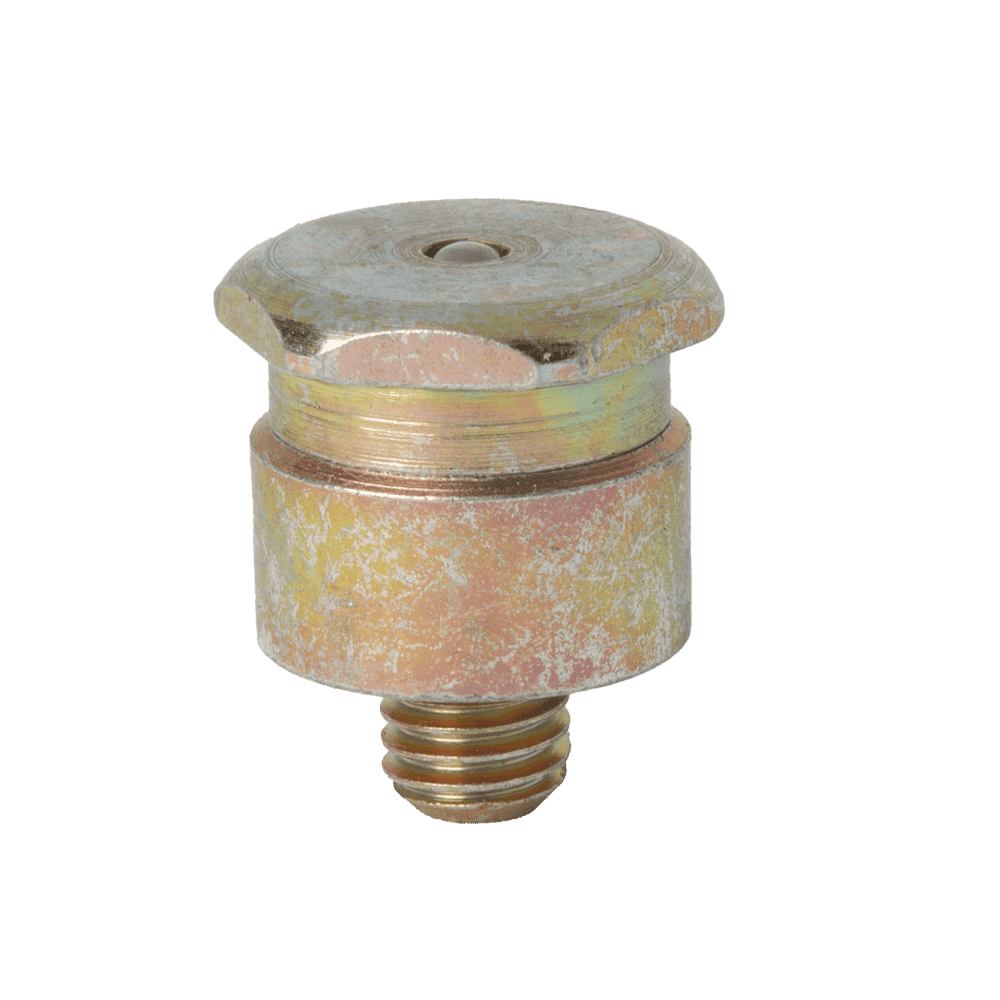

N/A | 1/8 x 27 PTF American Button Head | |

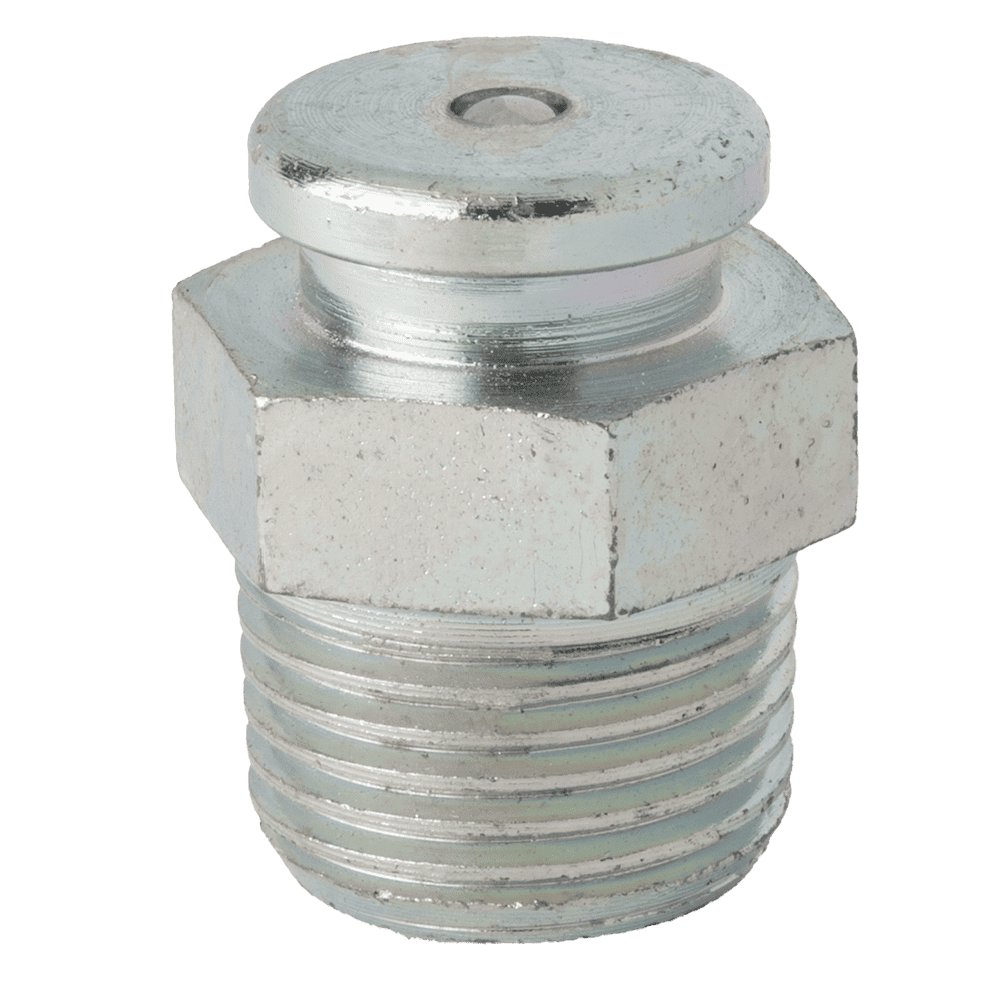

1/4 x 18 PTF American Button Head |
Some fittings are also available in 303 stainless, 316 stainless, Brass & Phosphor Bronze
Please note: White Trivalent is preferred for RoHS and REACH compliance.
