Product Code: 528901

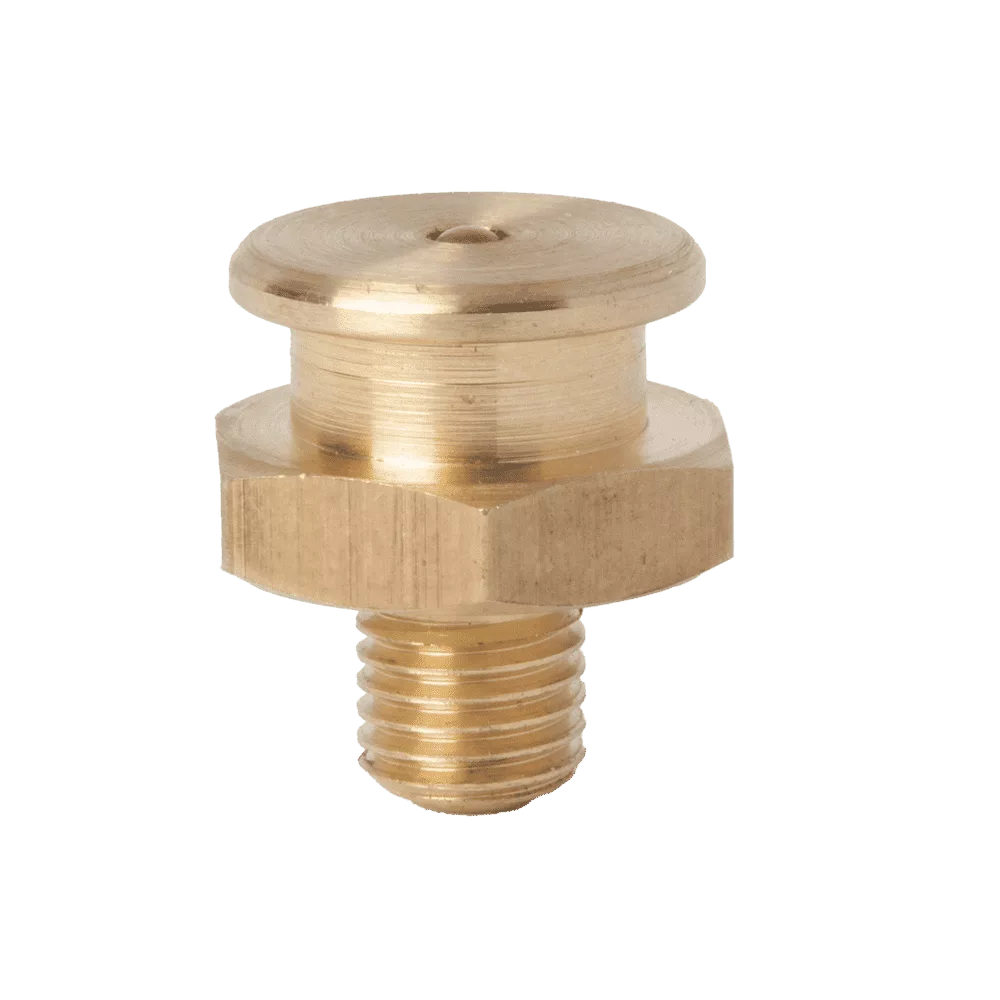

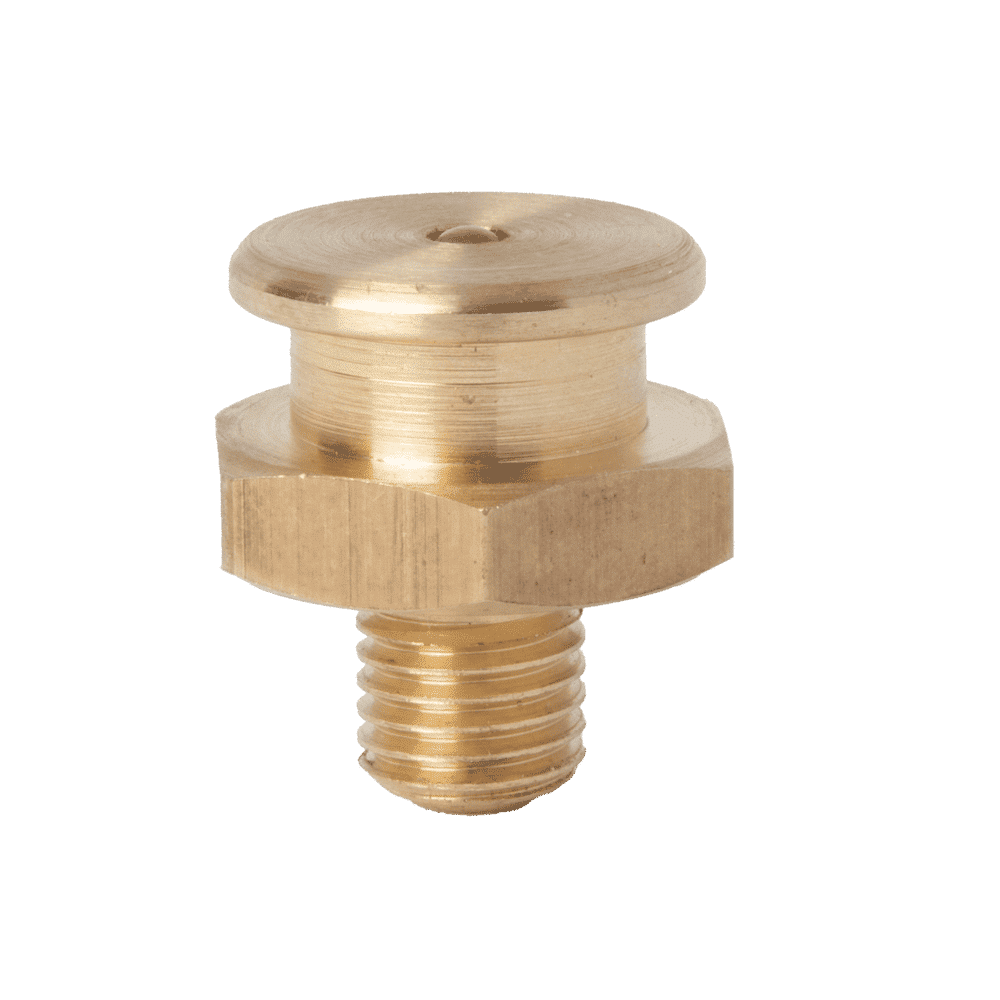

M8 x 1 16mm DIN 3404 Button Head Brass
528901
Description
M8 x 1 Parallel Thread. 16mm Diameter Button Head based on DIN 3404 Design.
Brass Body with Brass Ball and 302 Grade Stainless Steel Spring.
Additional information
| Angle | Straight |
|---|---|
| Ball Check | Yes |

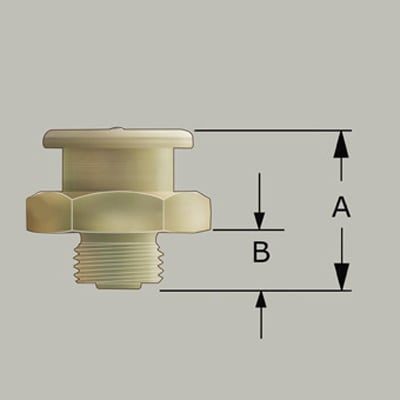

| Dimension A (Inch) | 0.78 |
| Dimension A (mm) | 20 |
| Dimension B (Inch) | 0.37 |
| Dimension B (mm) | 9.4 |
| Dimension C (Inch) | 0.8 across corners |
| Dimension C (mm) | 19.6 across corners |
| Hardened | No |
| Hidden | No |
| Hole | M8 x 1 |
| International | DIN3404 head form |
| Product Type | Button Head Grease Fitting |
| Material | Brass/Bronze |
| Product Long | Normal |
| SB quantity | on request |
| Spanner Wrench Size | 17mm Hexagon |
| Stock Item | Class 4 Parts |
| Thread | M8 x 1 Parallel |
| Thread Type | Metric |
| Zinc Plating | No |
