Product Code: PB6101

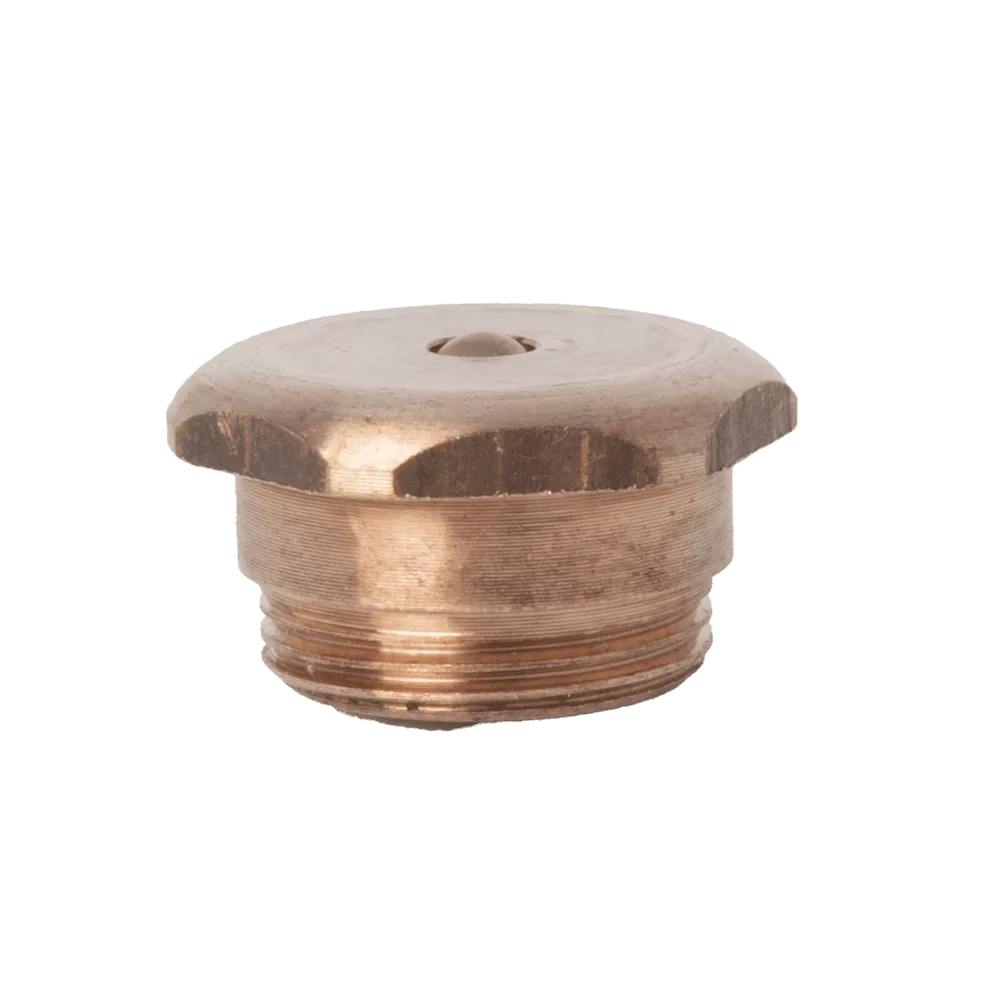

M12 x 0.75 Short Button Head Grease Fitting Phosphor Bronze
PB6101
Description
Single hex head button shape to BS1486 Style (T1)
The body, ball and spring are manufactured using marine grade Phosphor Bronze material PB102
NSN 4730-99-718-8731
Also Available in Steel. Zinc Plated. Code Number 326101
Additional information
| Angle | Straight |
|---|---|
| Ball Check | Yes |

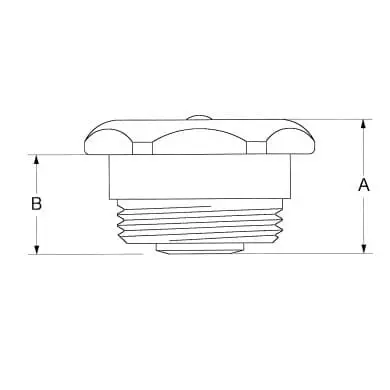

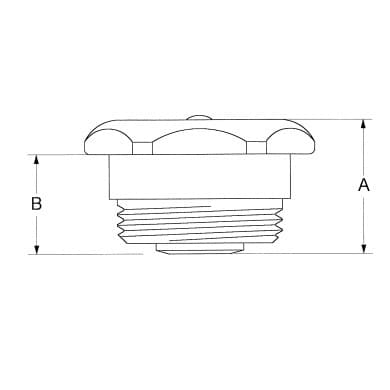

| Dimension A (Inch) | 0.38 |
| Dimension A (mm) | 9.8 |
| Dimension B (Inch) | 0.16 |
| Dimension B (mm) | 3.9 |
| Hardened | No |
| Hole | M12 x 0.75 |
| International | Head shape to BS1486 |
| Product Type | Button Head Grease Fitting |
| Material | Brass/Bronze |
| Spanner Wrench Size | 15mm Hexagon |
| Thread | M12 x 0.75 Parallel |
| Thread Type | Metric |
| Zinc Plating | No |
