Product Code: 221608

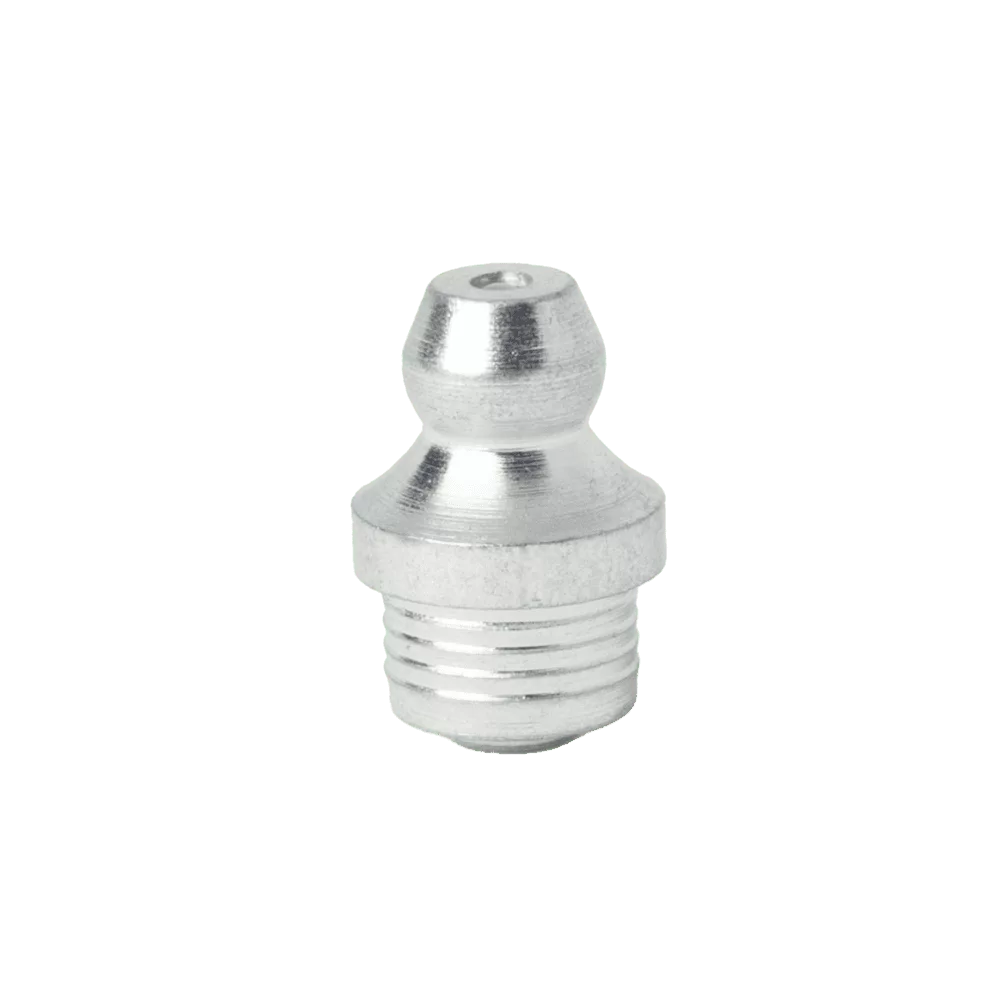

5/16” Drive Fit Straight Grease Fitting
221608
Description
5/16″ Drive Fit Straight Hydraulic Grease Fitting.
Zinc Trivalent Passivate Finish. RoHS and REACH Compliant.
For use in a 5/16″ Diameter Hole.
Also available with Zinc Yellow Chromate Finish. Code Number 201608.
Additional information
| Weight | 13 kg |
|---|---|
| Angle | Straight |
| Ball Check | Yes |
| Diagram | Fig.7 |
| Dimension A (Inch) | 0.58 |
| Dimension A (mm) | 14.7 |
| Dimension B (Inch) | 0.21 |
| Dimension B (mm) | 5.3 |
| Hardened | Yes |
| Hole | 5/16 nominal |
| Product Type | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Spanner Wrench Size | 10mm Diameter |
| Thread | 5/16 Drive Fit |
| Thread Type | Drive |
| Zinc Plating | Zinc Trivalent Passivate |
