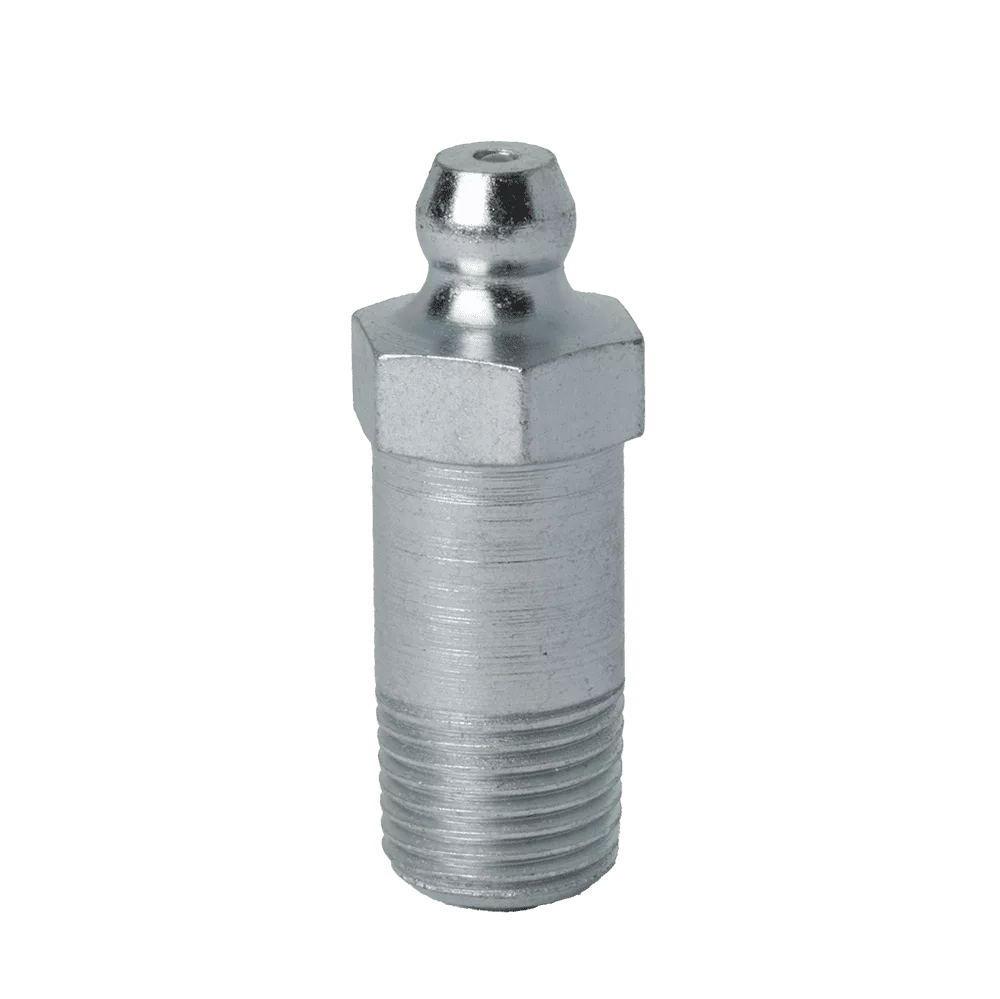

1/8” x 27 PTF Straight Grease Fitting 1.25″ Long
221607
Description
1/8″ x 27 PTF Special Short. 1.25″ Long. Straight Grease Fitting.
Premium Quality Steel. Case Hardened. Zinc Plated with Trivalent Passivate. RoHS and REACH compliant.
With carbon steel ball check to prevent the ingress of dirt only. Not to be used to retain back pressure.
Stress Relieved Spring to ensure long service life.
Made exclusively in Britain. Worldwide Shipping.
Also available with Zinc Yellow Chromate Finish. Code Number 201607. Limited Availability.
Additional information
| Angle | Straight |
|---|---|
| Ball Check | Yes |
| Dimension A (Inch) | 1.25 |
| Dimension A (mm) | 31.8 |
| Dimension B (Inch) | B=0 .38 – shank 0.8 |
| Dimension B (mm) | B =9.7 – shank 20.3 |
| Hardened | Yes |
| Hole | 1/8 American Pipe |
| International | SAE J534 |
| Material | Mild Steel |
| Spanner Wrench Size | 7/16" Hexagon |
| Thread | 1/8 x 27 PTF |
| Thread Type | American |
| Zinc Plating | Zinc Trivalent Passivate |
