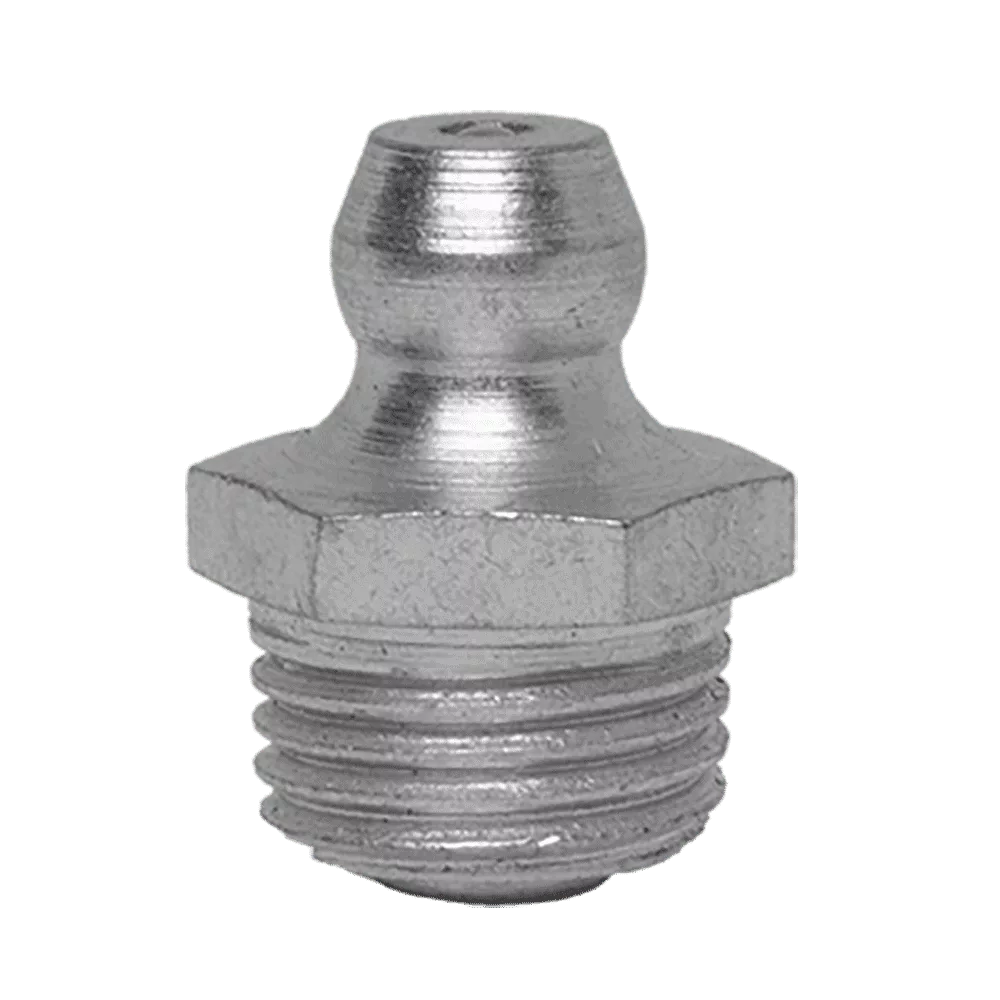

1/8″ x 27 PTF SAE Special Extra Short Grease Fitting
221610
Description
1/8″ x 27 PTF SAE Special Extra Short Straight Hydraulic Grease Fitting.
Special Extra Short refers to the thread length defined in SAE J476.
PTF threads are also referred to as NPT, American Pipe or Dryseal.
Premium Quality Steel. Case Hardened. Zinc Plated with Trivalent Passivate. RoHS and REACH compliant.
With carbon steel ball check to prevent the ingress of dirt only. Not to be used to retain back pressure.
Stress Relieved Spring to ensure long service life.
Material Certificates are available on request.
Made exclusively in Britain. Worldwide Shipping.
Also available in a yellow chromate finish. (Limited Availability) Code number 201610
Additional information
| Angle | Straight |
|---|---|
| Ball Check | Yes |
| Dimension A (Inch) | 0.63 |
| Dimension A (mm) | 16.1 |
| Dimension B (Inch) | 0.25 |
| Dimension B (mm) | 6.5 |
| Hardened | Yes |
| Hole | 1/8 American Pipe |
| International | SAE J534 |
| Material | Mild Steel |
| Spanner Wrench Size | 7/16" Hexagon |
| Thread | 1/8 x 27 PTF |
| Thread Type | American |
| Zinc Plating | Zinc Trivalent Passivate |
