Product Code: 818290

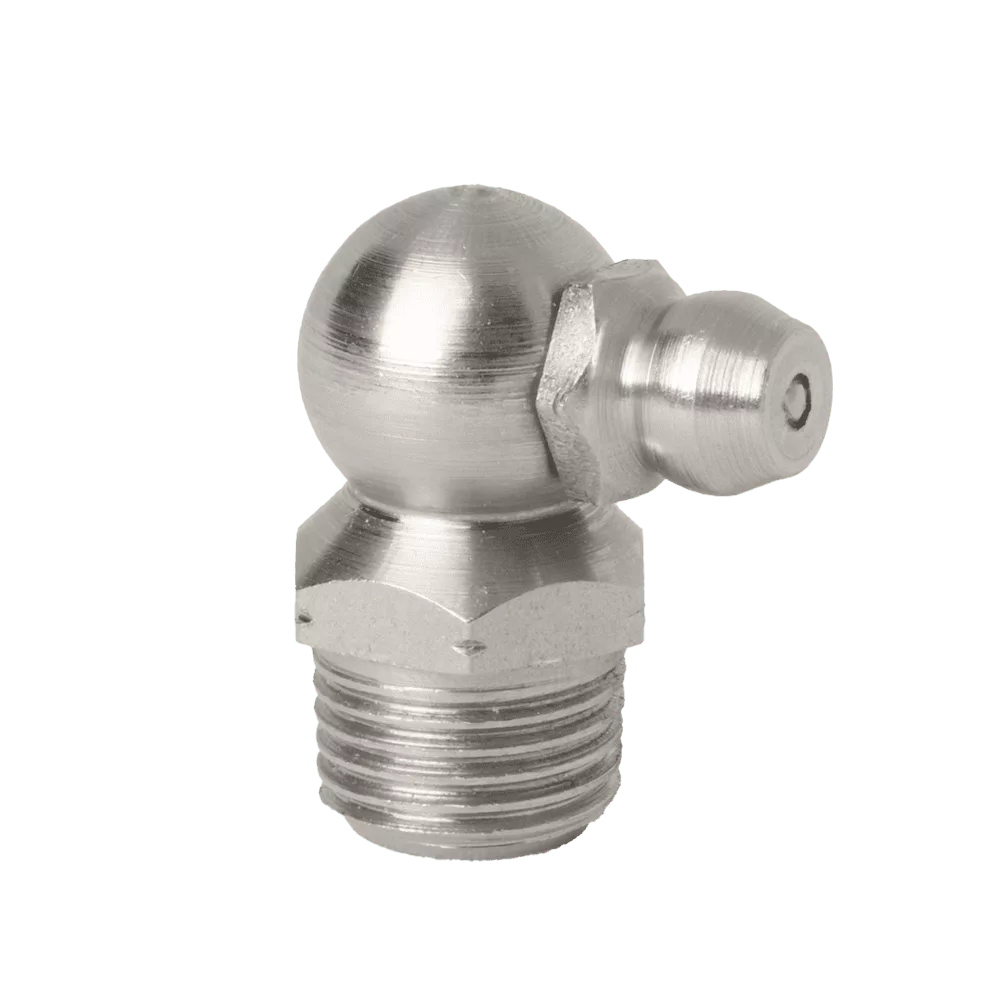

1/8″ x 27 PTF 90˚ Grease Fitting 303 Stainless Steel
818290
Description
1/8″ x 27 PTF Special Short 90˚ Grease Fitting.
303 Grade Stainless Steel (A2 or V2A) Body
302 Grade Stainless Steel Spring
440C Grade Stainless Steel Ball.
Material Certificates Available.
316 Stainless Steel Version. Code Number 316P1890.
Additional information
| Weight | 11 kg |
|---|---|
| Angle | 90 |
| Ball Check | Yes |
| Dimension A (Inch) | 0.83 |
| Dimension A (mm) | 20.8 |
| Dimension B (Inch) | 0.27 |
| Dimension B (mm) | 6.9 |
| Dimension C (Inch) | 0.49 |
| Dimension C (mm) | 12.5 |
| Hardened | No |
| Hole | 1/8 American Pipe |
| Product Type | Hydraulic Grease Nipple |
| Material | 303 Stainless |
| Product Long | Normal |
| Spanner Wrench Size | 7/16" Hexagon |
| Thread | 1/8 x 27 PTF |
| Thread Type | American |
| Zinc Plating | No |
