Product Code: 818245

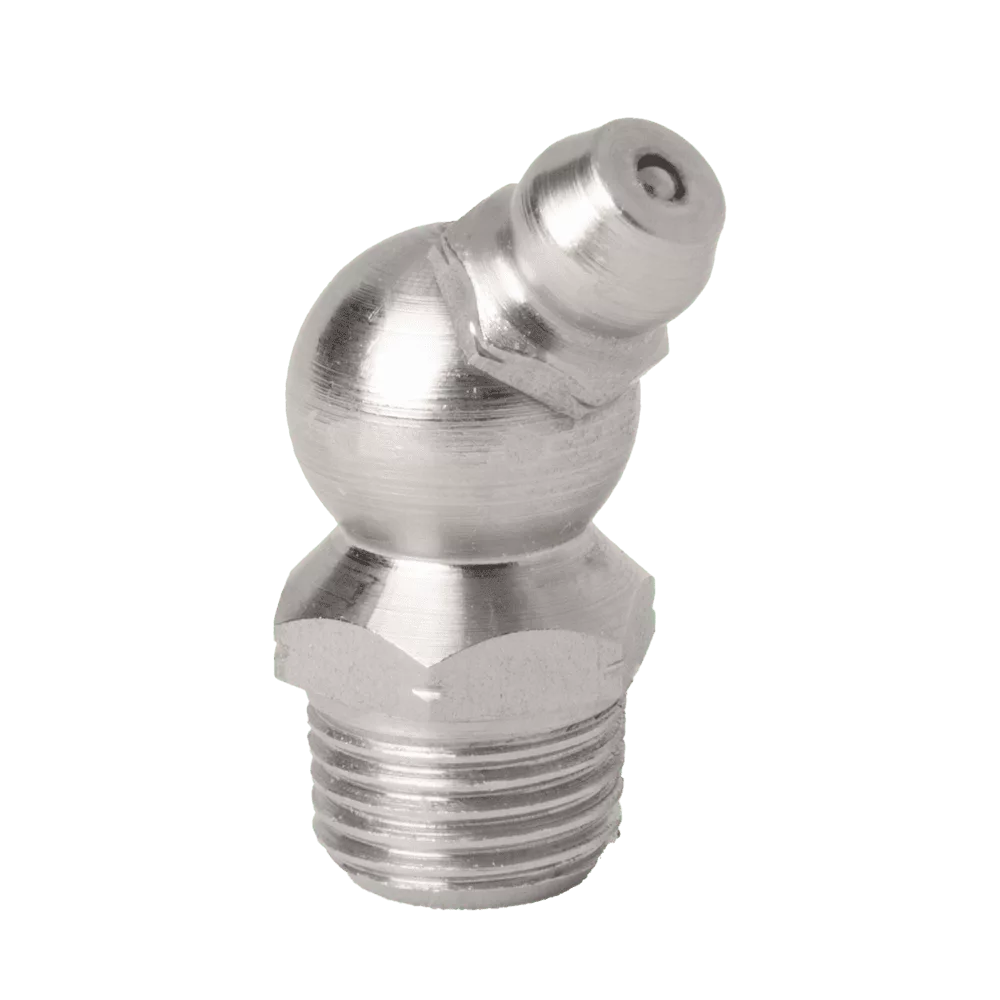

1/8″ x 27 PTF 45˚ Grease Fitting 303 Stainless Steel
818245
Description
1/8″ x 27 PTF Special Short 45˚ Grease Fitting.
303 Grade Stainless Steel (A2 or V2A) Body
302 Grade Stainless Steel Stress Relieved Spring
440C Grade Stainless Steel Ball.
Material Certificates Available.
316 Stainless Steel Version. Code Number 316P1845.
Additional information
| Angle | 45 |
|---|---|
| Ball Check | Yes |
| Dimension A (Inch) | 0.97 |
| Dimension A (mm) | 24.6 |
| Dimension B (Inch) | 0.27 |
| Dimension B (mm) | 6.9 |
| Dimension C (Inch) | 0.42 |
| Dimension C (mm) | 10.7 |
| Hardened | No |
| Hole | 1/8 American Pipe |
| Product Type | Hydraulic Grease Nipple |
| Material | 303 Stainless |
| Spanner Wrench Size | 7/16" Hexagon |
| Thread | 1/8 x 27 PTF |
| Thread Type | American |
| Zinc Plating | No |
