Product Code: 201610
1/8″ x 27 PTF Special Extra Short Straight Grease Fitting
201610
Description
With ball check to prevent the ingress of dirt only. Not to be used to retain back pressure.
Additional information
| Weight | 12 kg |
|---|---|
| Angle | Straight |
| Ball Check | Yes |

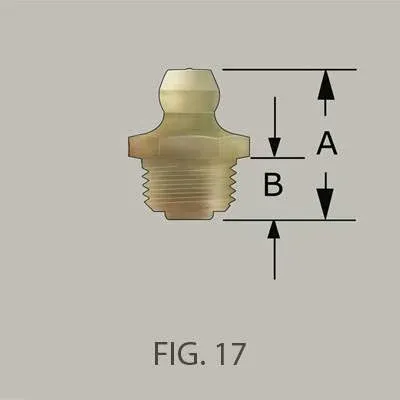

| Dimension A (Inch) | 0.63 |
| Dimension A (mm) | 16 |
| Dimension B (Inch) | 0.26 |
| Dimension B (mm) | 6.6 |
| Dimension C (Inch) | N/A |
| Dimension C (mm) | N/A |
| Hardened | Yes |
| Hole | 1/8 American Pipe |
| International | SAE J534 |
| Product Type | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Spanner Wrench Size | 7/16" Hexagon |
| Thread | 1/8 x 27 PTF |
| Thread Type | American |
| Zinc Plating | Zinc Yellow Chromate |
