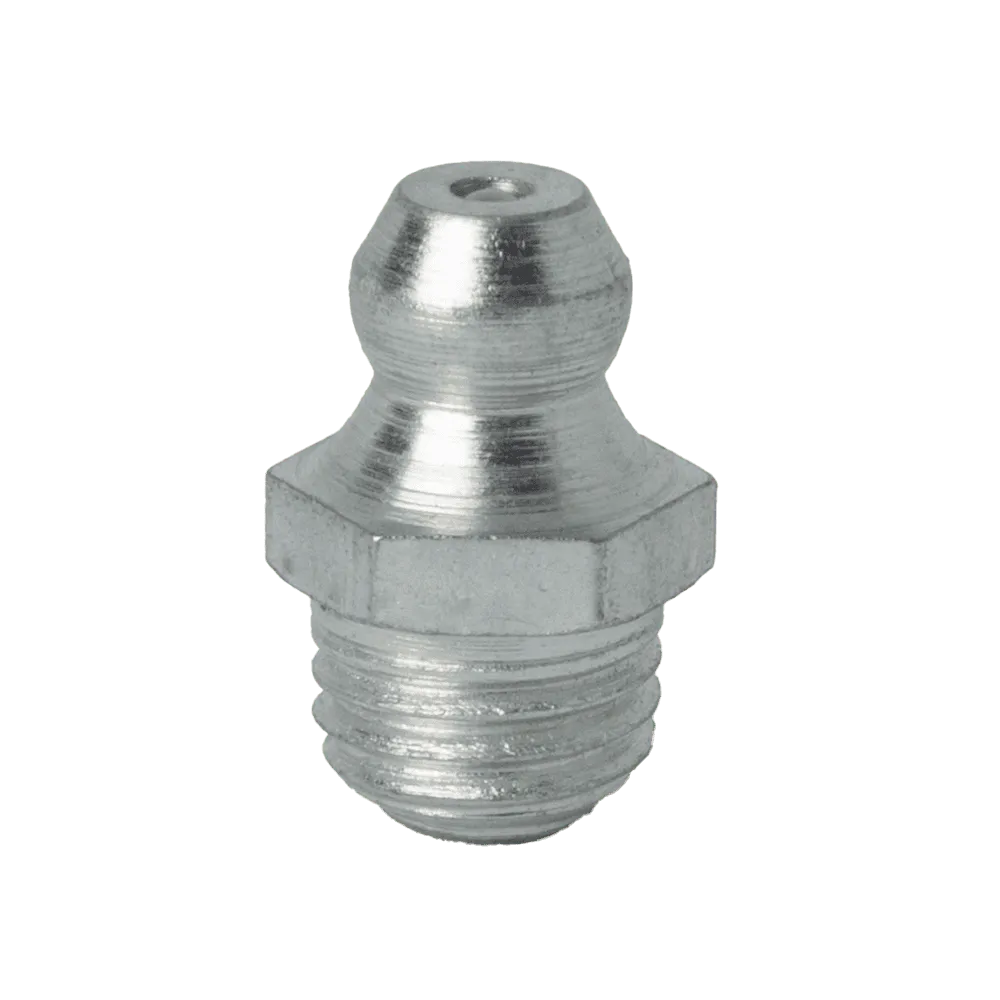

M8 x 1 Taper Straight Grease Fitting
668901
Description
M8 x 1 Taper Hydraulic Straight Grease Fitting to DIN 71412 Type A (H1)
Zinc Trivalent Passivate Finish. RoHS and REACH Compliant.
Also Available in Zinc Yellow Chromate Finish. Code Number 608901. Limited Availability.
303 Grade Stainless Version. Code Number 808058
316 Grade Stainless Steel Version. Code Number 316M81
Additional information
| Angle | Straight |
|---|---|
| Ball Check | Yes |
| Dimension A (Inch) | 0.56 |
| Dimension A (mm) | 14, 2 |
| Dimension B (Inch) | 0.2 |
| Dimension B (mm) | 5.2 |
| Hardened | Yes |
| Hole | M8 x 1 |
| International | DIN 71412 |
| Product Type | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Spanner Wrench Size | 9mm Hexagon |
| Thread | M8 x 1 Taper |
| Thread Type | Metric |
| Zinc Plating | Zinc Trivalent Passivate |
