Product Code: 808058

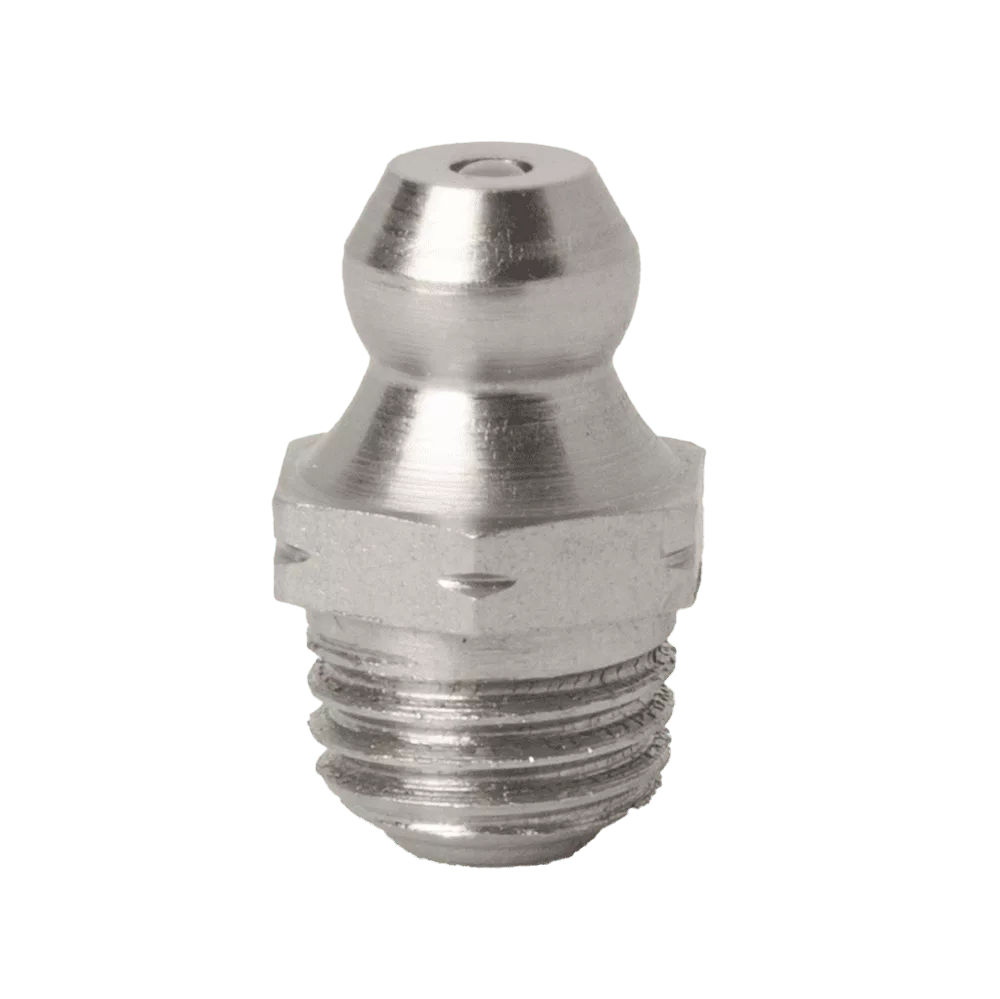

M8 x 1 Taper Straight Grease Fitting 303 Stainless Steel (A2)
808058
Description
M8 x 1 Taper Hydraulic Straight Grease Fitting. DIN 71412 Form A (H1)
303 (A2 or V2A) Grade Stainless Steel Body with 302 Grade Stainless Steel Spring and 440C Grade Stainless Steel Ball.
Material Certification Available.
Also Available in 316 Grade Stainless Steel. Code Number 316M81.
Additional information
| Weight | 13 kg |
|---|---|
| Angle | Straight |
| Ball Check | Yes |
| Dimension A (mm) | 16mm MAXIMUM |
| Dimension B (mm) | 6.2 mm MAXIMUM |
| Hardened | No |
| Hole | M8 x 1 |
| International | DIN71412 |
| Product Type | Hydraulic Grease Nipple |
| Material | 303 Stainless |
| Spanner Wrench Size | 9mm Hexagon |
| Thread | M8 x 1 Taper |
| Thread Type | Metric |
| Zinc Plating | No |
