Product Code: 617546

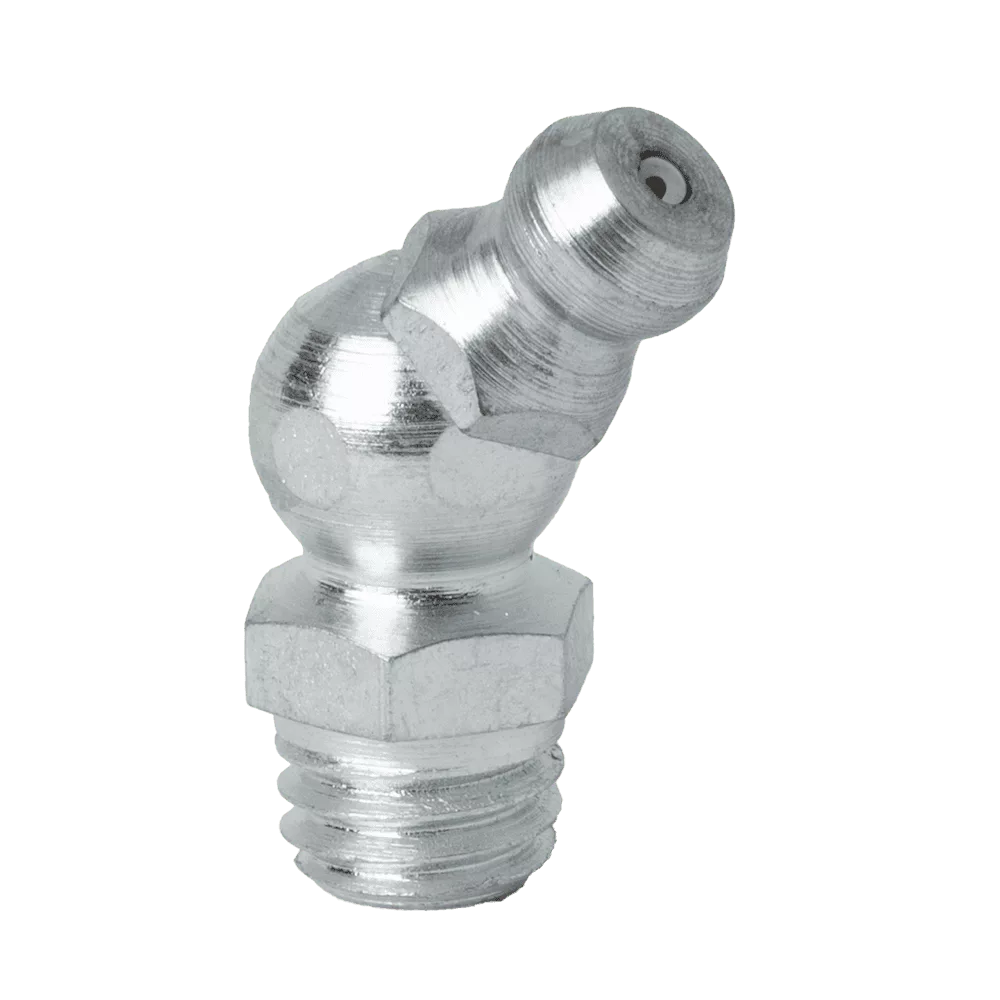

M8 x 1.25 Taper 45˚ Grease Fitting
617546
Description
According to DIN 71412 Form B (H2) – 45° Grease Fitting.
Zinc Trivalent Passivate Finish. RoHS and REACH Compliant.
Also Available with Zinc Yellow Chromate Finish. Code Number 617545. Limited Availability.
Available in 303 Stainless Steel. Code Number 815745 and 316 Stainless Steel. Code Number 316M82545
Additional information
| Weight | 14 kg |
|---|---|
| Angle | 45 |
| Ball Check | Yes |
| Dimension A (Inch) | 0.9 |
| Dimension A (mm) | 22.8 |
| Dimension B (Inch) | 0.22 |
| Dimension B (mm) | 5.6 |
| Dimension C (Inch) | 0.39 |
| Dimension C (mm) | 9.9 |
| Hardened | Yes |
| Hole | M8 x 1.25 |
| Product Type | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Spanner Wrench Size | 9mm Hexagon |
| Thread | M8 x 1.25 Taper |
| Thread Type | Metric |
| Zinc Plating | Zinc Trivalent Passivate |
