Product Code: 815745

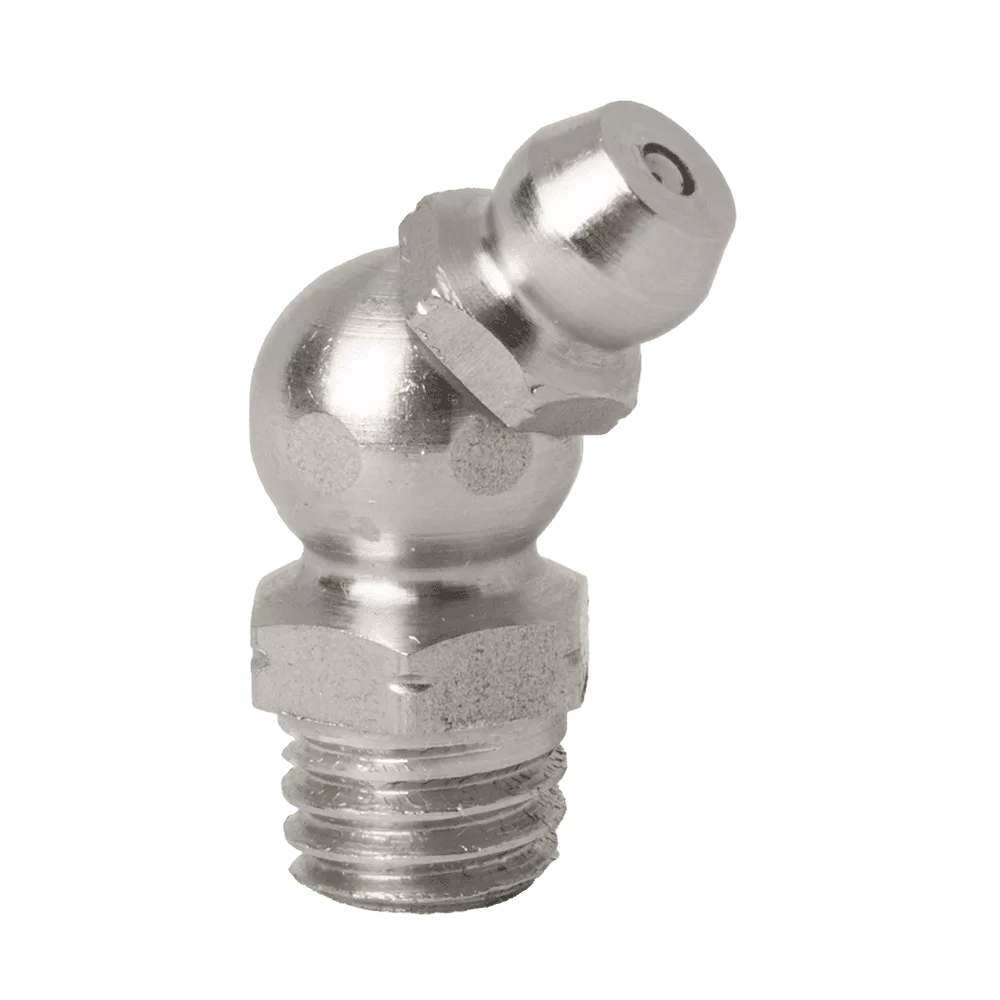

M8 x 1.25 Taper 45˚ Grease Fitting 303 Stainless Steel
815745
Description
M8 x 1.25 Taper Hydraulic 45˚ Grease Fitting. DIN 71412 Form B (H2)
303 Grade (A2) Stainless Steel Body and Tip with 302 Grade Stainless Steel Spring and 440C Grade Stainless Steel Ball.
Material Certification Available.
Also Available in 316 Grade Stainless Steel (A4). Code Number 316M82545.
Additional information
| Weight | 14 kg |
|---|---|
| Dimension A (Inch) | 0.88 |
| Dimension A (mm) | 22.4 |
| Dimension B (Inch) | 0.23 |
| Dimension B (mm) | 5.5 |
| Dimension C (Inch) | 0.35 |
| Dimension C (mm) | 8.9 |
| Hardened | No |
| Hole | M8 x 1.25 |
| Product Type | Hydraulic Grease Nipple |
| Material | 303 Stainless |
| Spanner Wrench Size | 9mm Hexagon |
| Thread | M8 x 1.25 Taper |
| Thread Type | Metric |
| Zinc Plating | No |
