Product Code: 915561

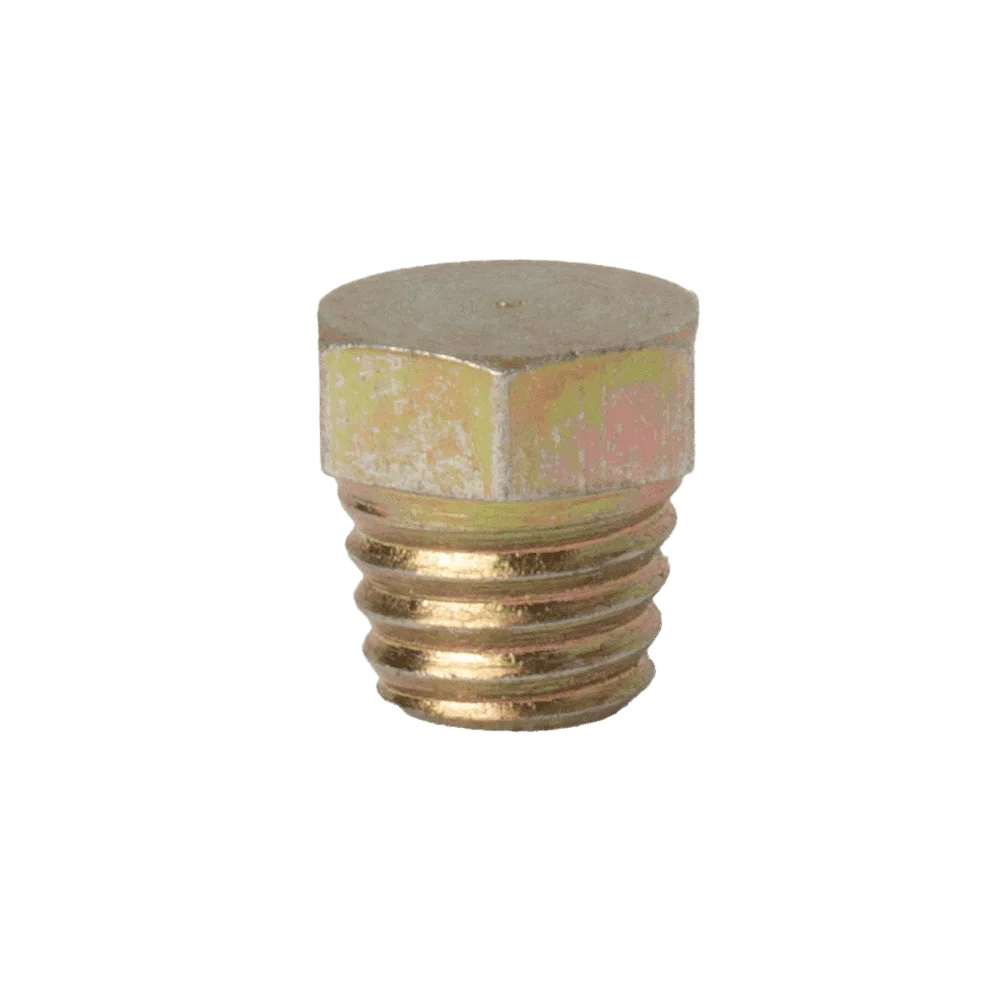

M6 x 1 Thread Forming Thread Plug
915561
Description
M6 x 1 Self Forming Thread Plug.
Steel. Case Hardened. Zinc Plated with Yellow Chromate Finish.
Self-forming threads can be screwed or driven into an untapped hole.
5.6mm diameter hole is recommended in DIN 71412 for M6 x 1.
Avoid chamfering as a sharp edge to the hole helps the thread bite
Additional information
| Angle | Straight |
|---|---|
| Diagram | Fig.16 |
| Dimension A (Inch) | 0.3 |
| Dimension A (mm) | 7.6 |
| Dimension B (Inch) | 0.19 |
| Dimension B (mm) | 4.8 |
| Hardened | Yes |
| Hole | M6 x 1 |
| Product Type | Plug |
| Material | Mild Steel |
| Spanner Wrench Size | 7mm Hexagon |
| Thread | M6 x 1 Self Forming |
| Thread Type | Self-forming |
| Zinc Plating | Zinc Yellow Chromate |
