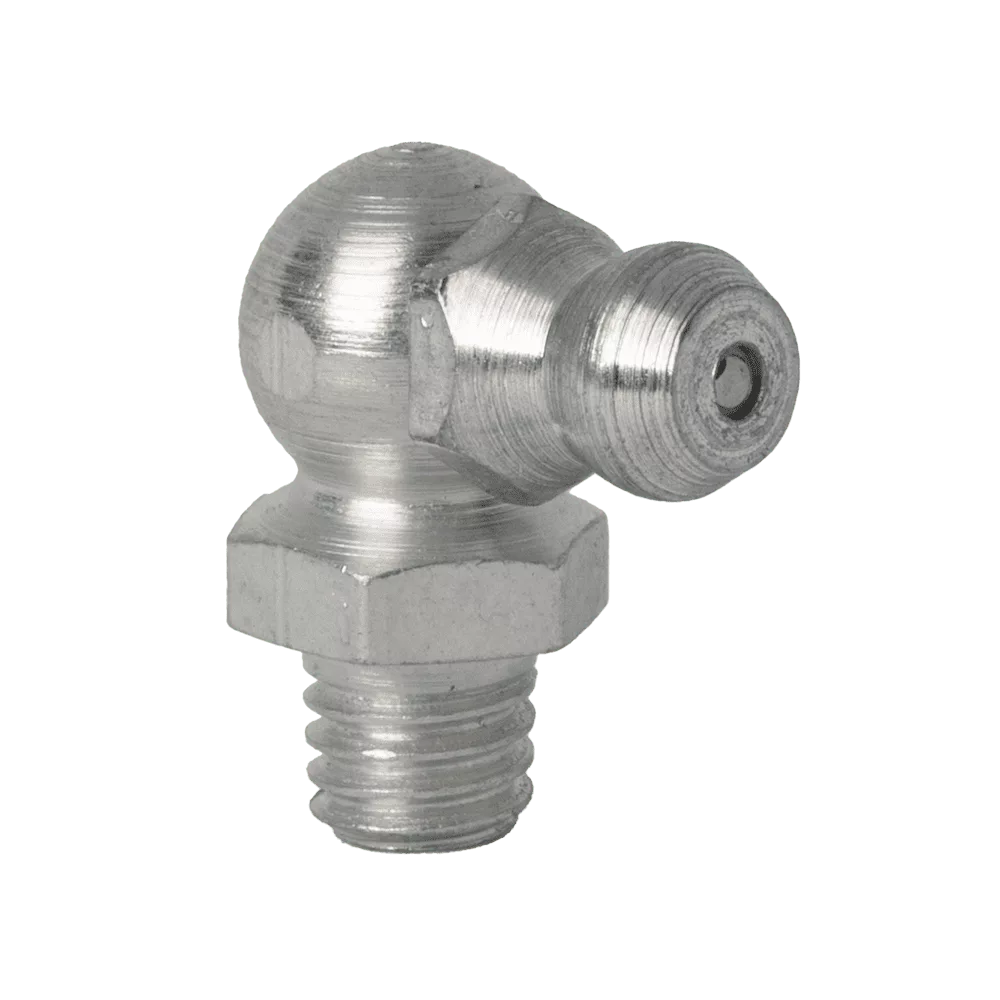

M6 x 1 90˚ Grease Fitting
617091
Description
M6 x 1 90° Grease Fitting.
Tapered thread to negate the use of sealant and prevent coming loose with vibration.
DIN 71412 Form C (H3) – 90° Grease Fitting.
High Quality Steel. Zinc Plated with Trivalent Passivate. RoHS and REACH Compliant.
Case Hardened Tip. Ball Check with stress-relieved spring for consistent performance.
Available in 303 Stainless Steel. Code Number 813690 and 316 Stainless Steel. Code Number 316M6190
Additional information
| Angle | 90 |
|---|---|
| Ball Check | Yes |
| Dimension A (Inch) | 0.7 |
| Dimension A (mm) | 17.8 |
| Dimension B (Inch) | 0.22 |
| Dimension B (mm) | 5.6 |
| Dimension C (Inch) | 0.46 |
| Dimension C (mm) | 11.7 |
| Hardened | Yes |
| Hole | M6 x 1 |
| International | DIN 71412 |
| Product Type | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Spanner Wrench Size | 9mm Hexagon |
| Thread | M6 x 1 Taper |
| Thread Type | Metric |
| Zinc Plating | Zinc Trivalent Passivate |
