Product Code: 316M6190

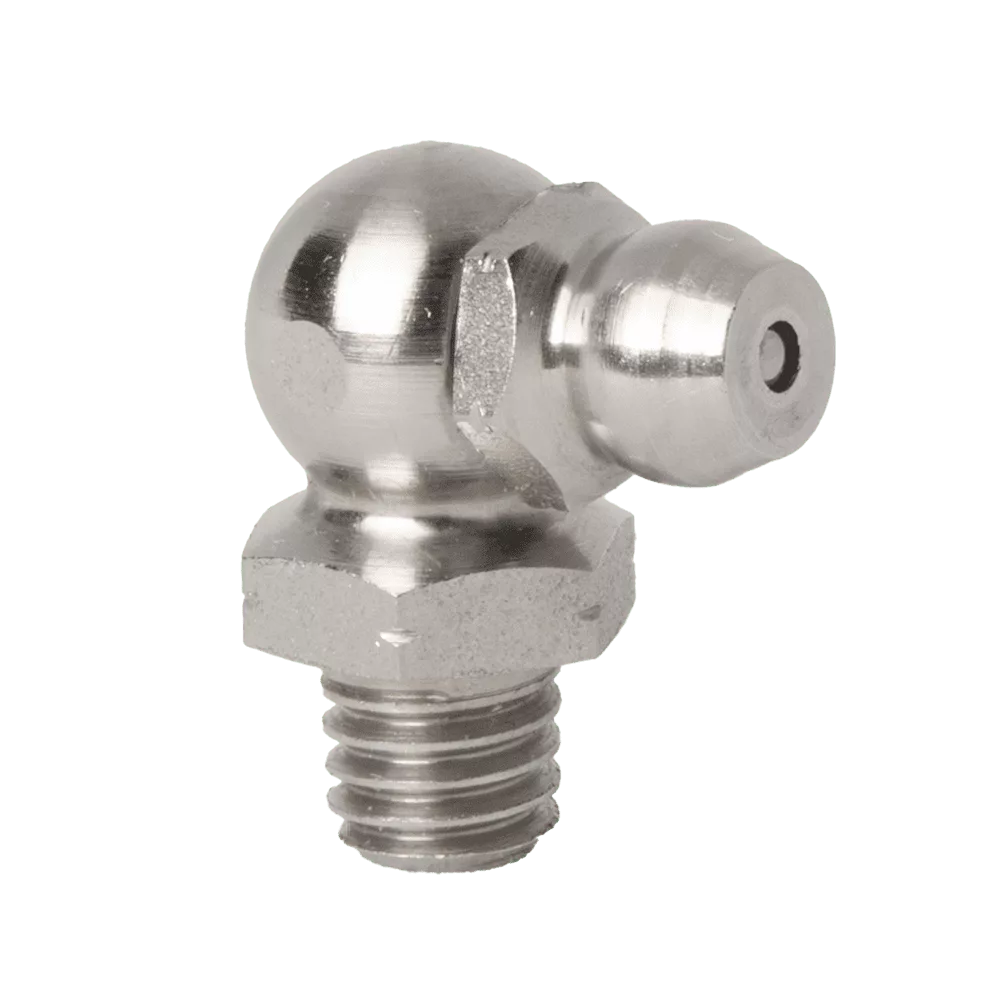

M6 x 1 Taper 90° Grease Fitting 316 Stainless Steel (A4)
316M6190
Description
M6 x 1 Taper 90° Grease Fitting. Form C according to DIN 71412. (H3)
316 (A4) Stainless Steel Body, Ball and Stress Relieved Spring.
Material Certification Available.
303 Stainless Steel Version is also available. Code Number 813690.
Additional information
| Ball Check | Yes |
|---|---|
| Dimension A (mm) | 20 |
| Dimension B (mm) | 6 |
| Dimension C (mm) | 12 |
| Hardened | No |
| Hole | M6 x 1 |
| International | tip/head to DIN71412 shape |
| Product Type | Hydraulic Grease Nipple |
| Material | 316 Stainless |
| Spanner Wrench Size | 11mm Hexagon |
| Thread | M6 x 1 Taper |
| Thread Type | Metric |
| Zinc Plating | No |
