Product Code: 814390

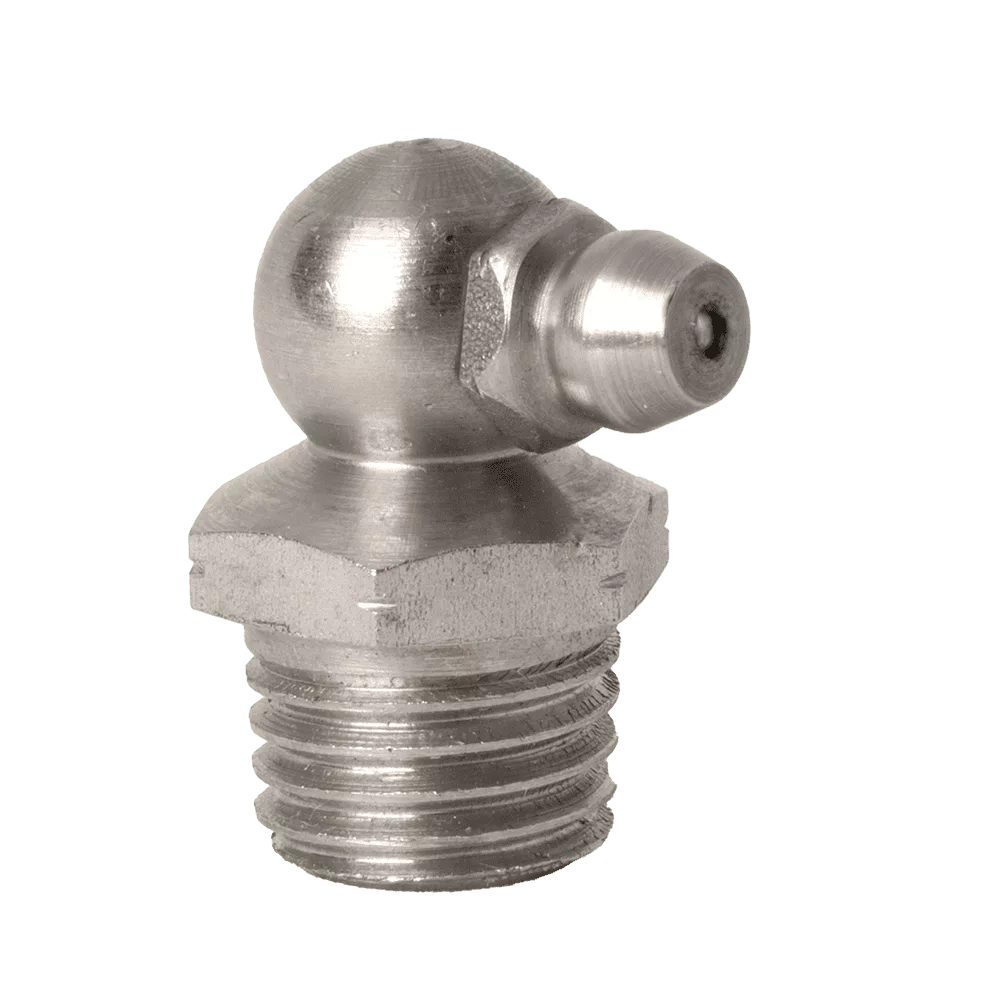

M12 x 1.5 Taper 90˚ Grease Fitting 303 Stainless Steel (A2)
814390
Description
M12 x 1.5 Taper Hydraulic 90° Grease Fitting. DIN 71412 Form C (H3)
303 Grade Stainless Steel Body (A2) with 302 Grade Stainless Steel Spring and 440C Grade Stainless Steel Ball.
Material Certification Available.
Additional information
| Angle | 90 |
|---|---|
| Ball Check | Yes |
| Dimension A (Inch) | 0.92 |
| Dimension A (mm) | 23.4 |
| Dimension B (Inch) | 0.34 |
| Dimension B (mm) | 8.6 |
| Dimension C (Inch) | 0.5 |
| Dimension C (mm) | 12.7 |
| Hardened | No |
| Hole | M12 x 1.5 |
| Product Type | Hydraulic Grease Nipple |
| Material | 303 Stainless |
| Spanner Wrench Size | 14mm Hexagon |
| Thread | M12 x 1.5 |
| Thread Type | Metric |
| Zinc Plating | No |
