Product Code: 516601

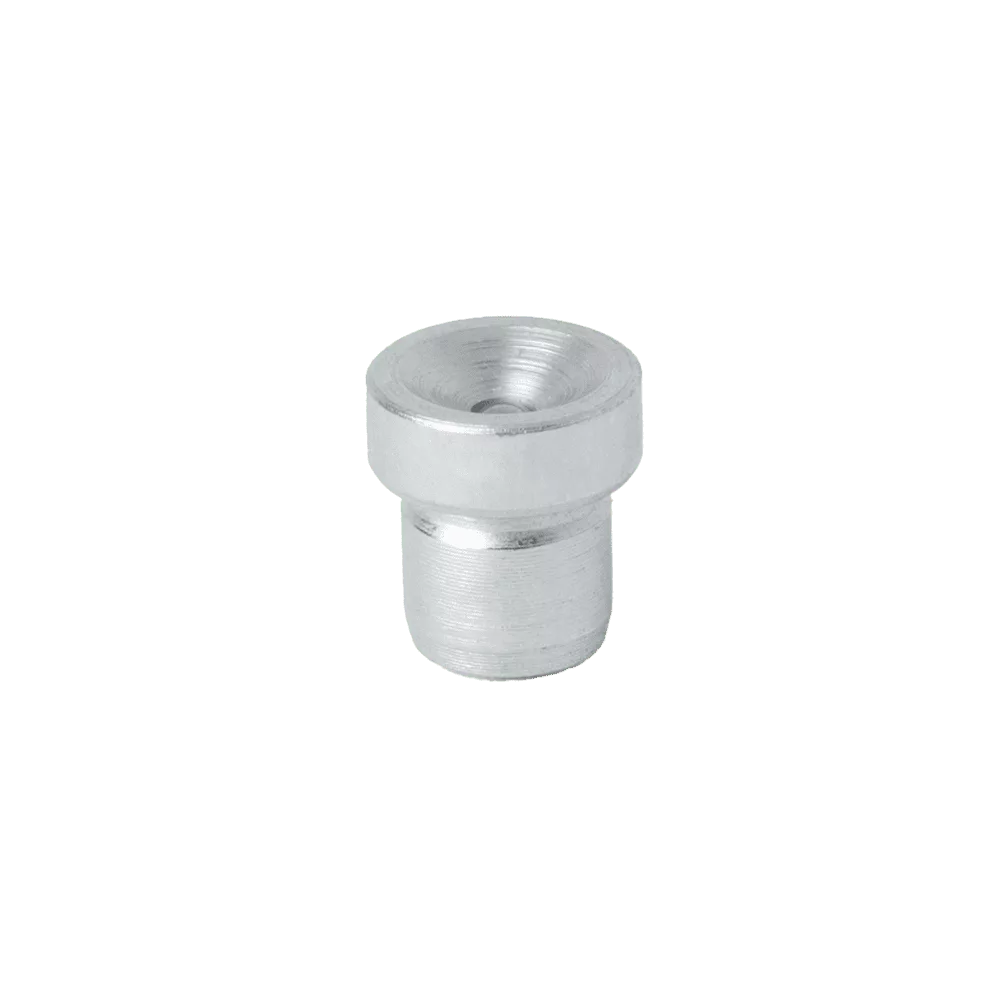

6mm Drive Fit Cup Type Grease Fitting
516601
Description
6mm Drive Fit Cup Type Grease Fitting.
Zinc Trivalent Passivate Finish. RoHS and REACH Compliant.
Low Pressure Applications.
Also known as Concave Type Grease Fittings
Additional information
| Angle | Straight |
|---|---|
| Ball Check | Yes |

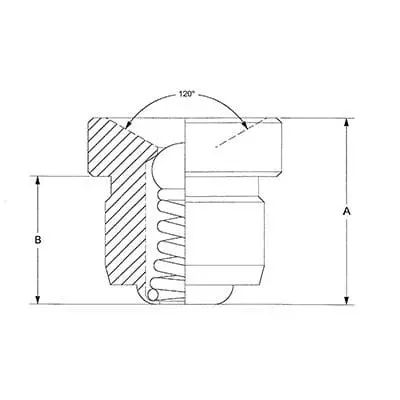

| Dimension A (mm) | 9.5 max |
| Dimension B (mm) | 5.5 |
| Hardened | No |
| Hole | 6mm nominal |
| International | DIN3405 |
| Product Type | Cup Type |
| Material | Mild Steel |
| Spanner Wrench Size | 5/16" Diameter |
| Special | Yes |
| Thread | 6mm Drive Fit |
| Thread Type | Drive |
| Zinc Plating | Zinc Trivalent Passivate |
