Product Code: 201728

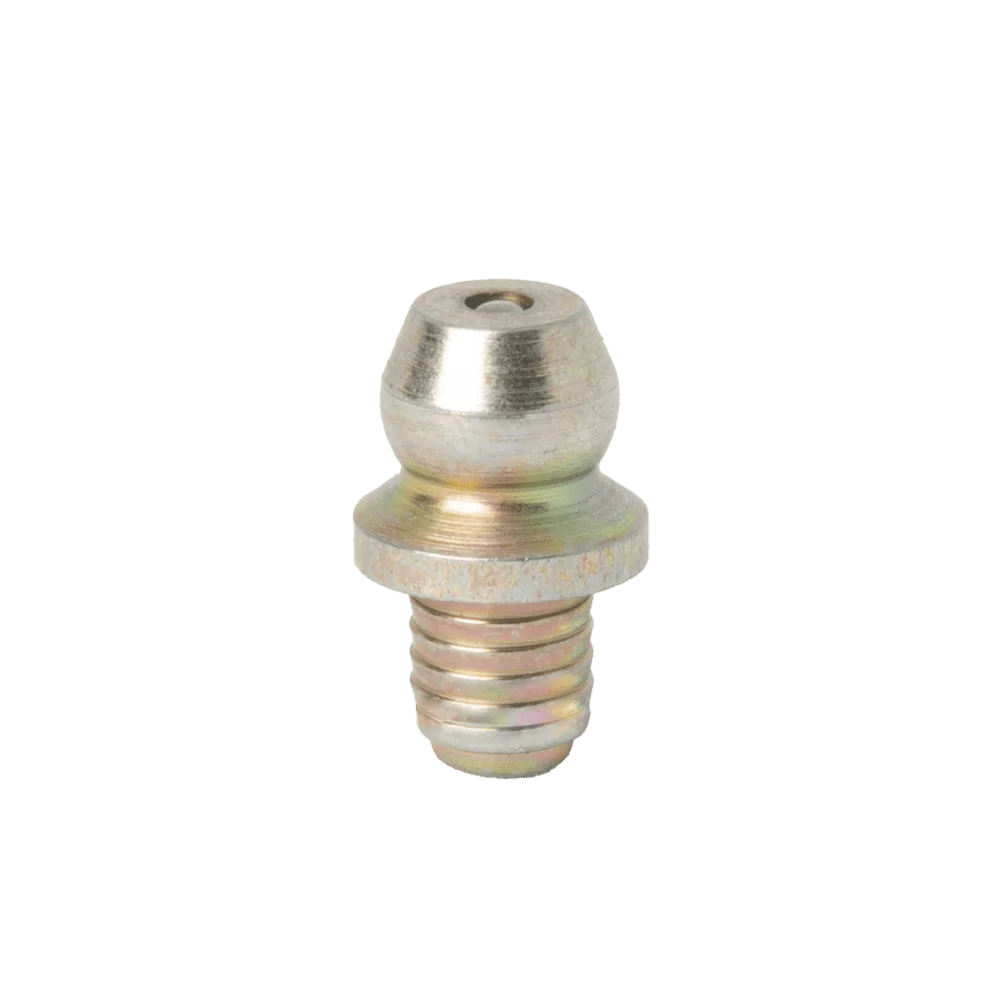

3/16″ Drive Fit Straight Grease Fitting
201728
Description
3/16″ Drive Fit Straight Hydraulic Grease Fitting.
Zinc Yellow Chromate Finish. Limited Availability.
For use in a 3/16″ Diameter Hole.
Also available with Zinc Trivalent Passivate. Code Number 221728.
303 Grade Stainless Steel. Code Number 808028
316 Grade Stainless Steel. Code Number 3161728
Additional information
| Weight | 10 kg |
|---|---|
| Angle | Straight |
| Ball Check | Yes |
| Diagram | Fig.7 |
| Dimension A (Inch) | 0.5 |
| Dimension A (mm) | 12.7 |
| Dimension B (Inch) | 0.23 |
| Dimension B (mm) | 5.5 |
| Hardened | Yes |
| Hole | 3/16 nominal |
| Product Type | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Spanner Wrench Size | 5/16" Diameter |
| Thread | 3/16 Drive Fit |
| Thread Type | Drive |
| Zinc Plating | Zinc Yellow Chromate |
