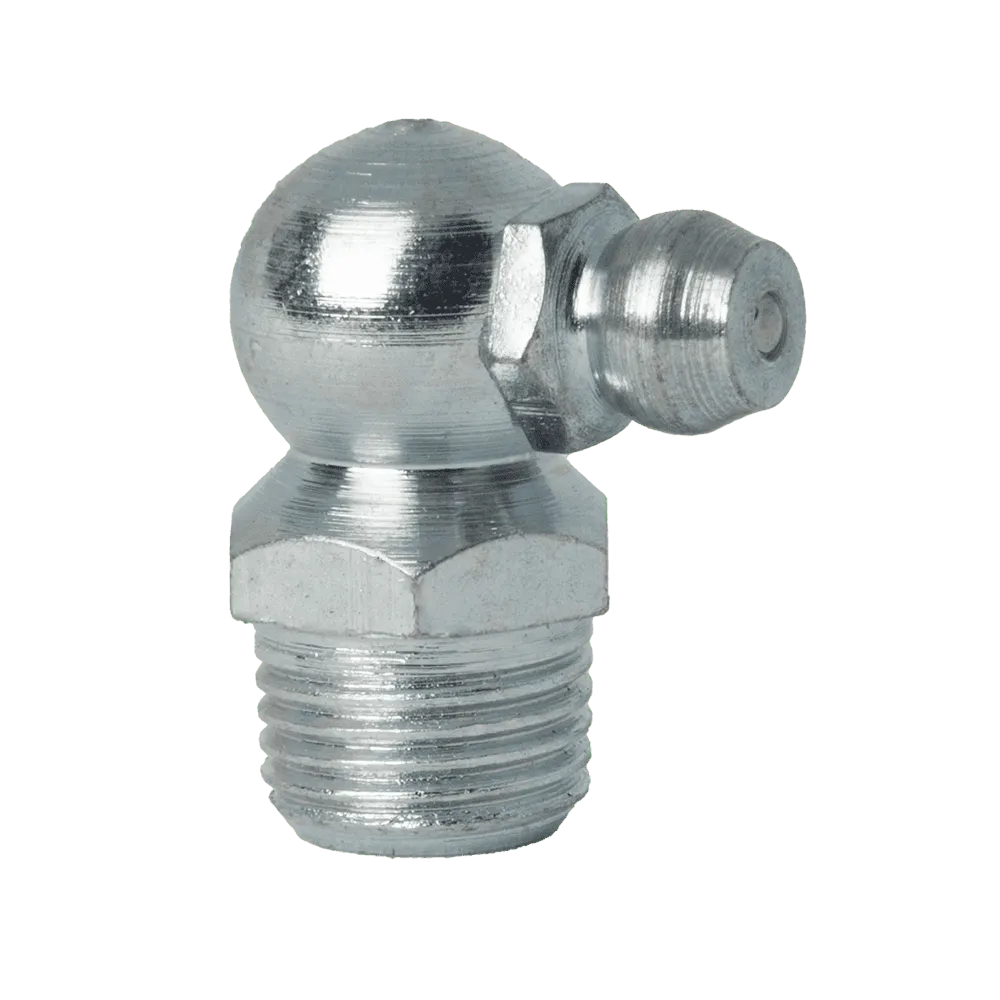

1/8″ x 27 PTF Special Short 90° Grease Fitting
231613
Description
1/8″ x 27 PTF Special Short 90° Grease Fitting.
Premium Quality Steel. Zinc Plated with Trivalent Passivate. REACH and RoHS Compliant.
Case Hardened Tip with Carbon Steel Ball Check and stress relieved spring for long service life.
Also Available with Zinc Yellow Chromate Finish. Code Number 211613. Limited Availability.
303 Grade Stainless Steel Version also available. Code Number 818290.
316 Grade Stainless Steel Version also available. Code Number 316P1890
Additional information
| Angle | 90 |
|---|---|
| Ball Check | Yes |
| Dimension A (Inch) | 0.82 |
| Dimension A (mm) | 20.8 |
| Dimension B (Inch) | 0.27 |
| Dimension B (mm) | 6.9 |
| Dimension C (Inch) | 0.47 |
| Dimension C (mm) | 11.9 |
| Hardened | Yes |
| Hole | 1/8 American Pipe |
| International | SAEJ534 |
| Material | Mild Steel |
| Spanner Wrench Size | 7/16" Hexagon |
| Thread | 1/8 x 27 PTF |
| Thread Type | American |
| Zinc Plating | Zinc Trivalent Passivate |
