Product Code: 3161428

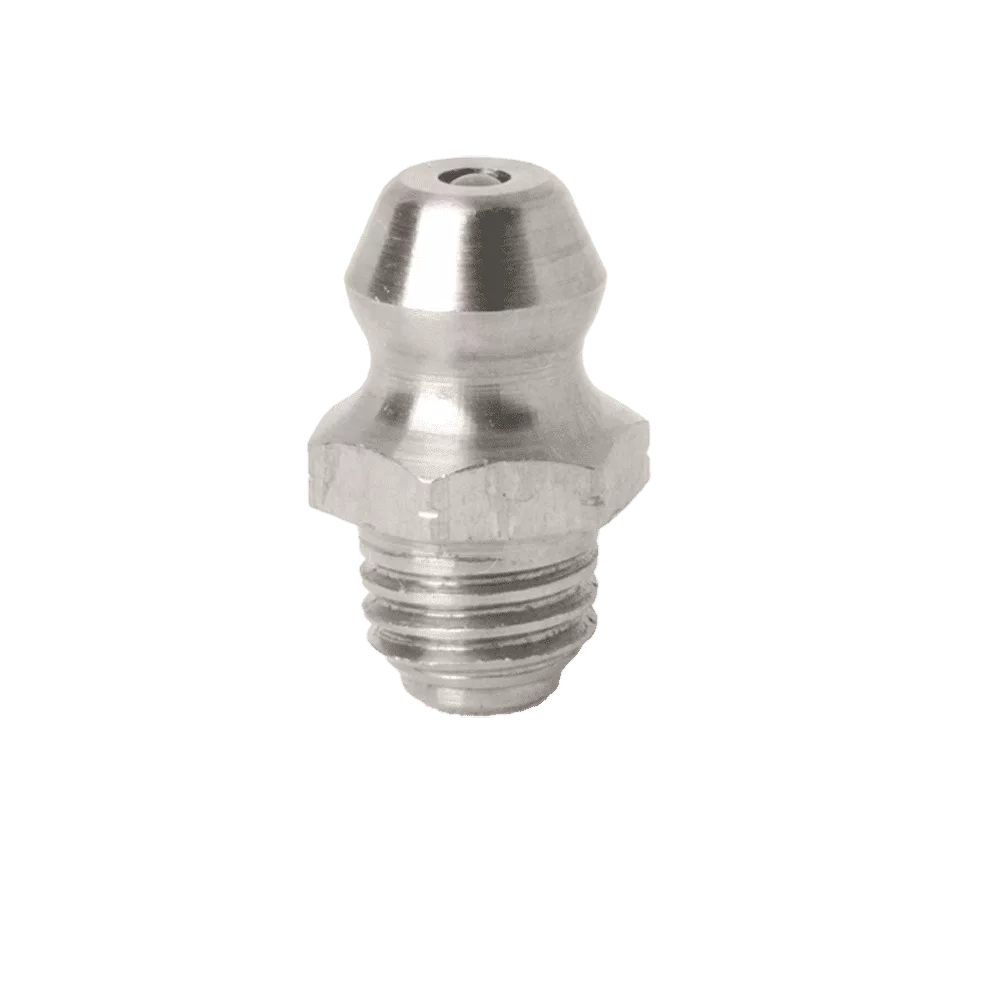

1/4″ x 28 SAE-LT Straight Grease Fitting 316 Stainless Steel
3161428
Description
1/4″ x 28 SAE-LT Taper Hydraulic Straight Grease Fitting.
316 (A4) Stainless Steel Body, Ball and Stress Relieved Spring.
Material Certification Available.
303 Stainless Steel Version also available. Code Number 808025.
Additional information
| Weight | 6 kg |
|---|---|
| Angle | Straight |
| Ball Check | Yes |
| Dimension A (Inch) | 0.54 |
| Dimension A (mm) | 13.7 |
| Dimension B (Inch) | 0.2 |
| Dimension B (mm) | 5.1 |
| Hardened | No |
| Hole | 1/4 UNF |
| International | SAE J534 (dimensions) |
| Product Type | Hydraulic Grease Nipple |
| Material | 316 Stainless |
| Spanner Wrench Size | 5/16" Hexagon |
| Thread | 1/4 x28 SAE-LT |
| Thread Type | American |
| Zinc Plating | No |
