Product Code: 808025

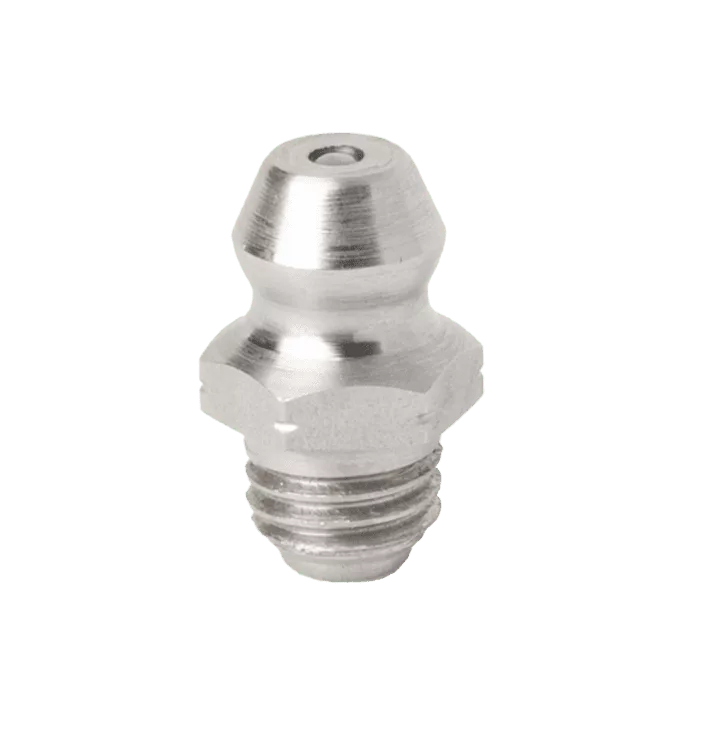

1/4″ x 28 SAE-LT Straight Grease Fitting 303 Stainless Steel
808025
Description
1/4″ x 28 SAE-LT (UNF) Hydraulic Straight Grease Fitting.
Body manufactured from 303 grade Stainless Steel with a 302 Grade Stainless Steel Stress Relieved Spring and 440C Grade Stainless Steel ball.
Also available in 316 Stainless Steel and NiCu Alloy
Additional information
| Angle | Straight |
|---|---|
| Ball Check | Yes |
| Dimension A (Inch) | 0.54 |
| Dimension A (mm) | 13.7 |
| Dimension B (Inch) | 0.2 |
| Dimension B (mm) | 5.1 |
| Dimension C (Inch) | N/A |
| Dimension C (mm) | N/A |
| Hardened | No |
| Hole | 1/4 UNF |
| Product Type | Hydraulic Grease Nipple |
| Material | 303 Stainless |
| Spanner Wrench Size | 5/16" Hexagon |
| Thread | 1/4 UNF, 1/4 x28 SAE-LT |
| Thread Type | American |
| Zinc Plating | No |
