Product Code: 316M8190

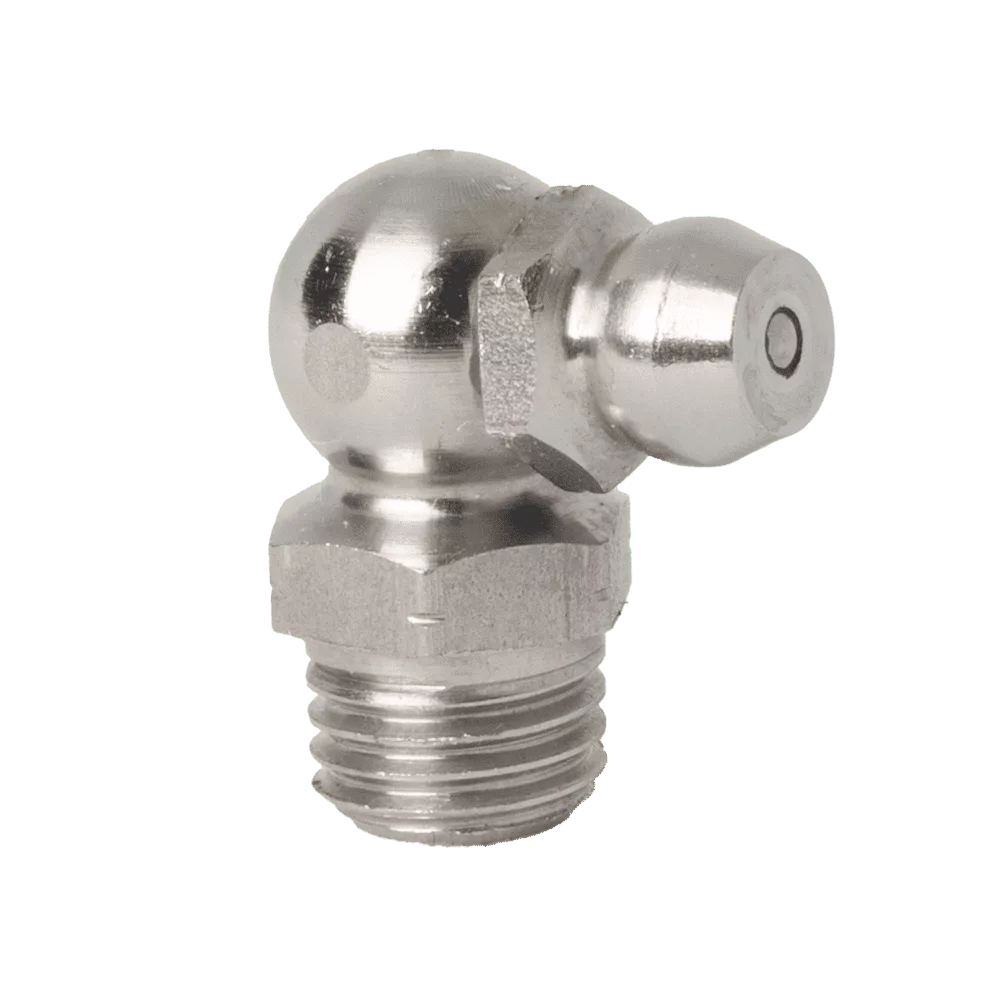

M8 x 1 Taper 90° Grease Fitting 316 Stainless Steel (A4)
316M8190
Description
M8 x 1 Taper 90° Hydraulic Grease Fitting. Form C according to DIN 71412. (H3)
316 (A4) Stainless Steel Body, Ball and Stress Relieved Spring.
Material Certification Available.
303 Stainless Steel Version also available. Code Number 815890.
Additional information
| Angle | 90 |
|---|---|
| Ball Check | Yes |
| Dimension A (Inch) | 0.71 |
| Dimension A (mm) | 18 |
| Dimension B (Inch) | 0.23 |
| Dimension B (mm) | 5.5 |
| Dimension C (Inch) | 0.44 |
| Dimension C (mm) | 11.2 |
| Hardened | No |
| Hole | M8 x 1.25 |
| Product Type | Hydraulic Grease Nipple |
| Material | 316 Stainless |
| Spanner Wrench Size | 9mm Hexagon |
| Thread | M8 x 1.25 Taper |
| Thread Type | Metric |
| Zinc Plating | No |
