Product Code: 668771

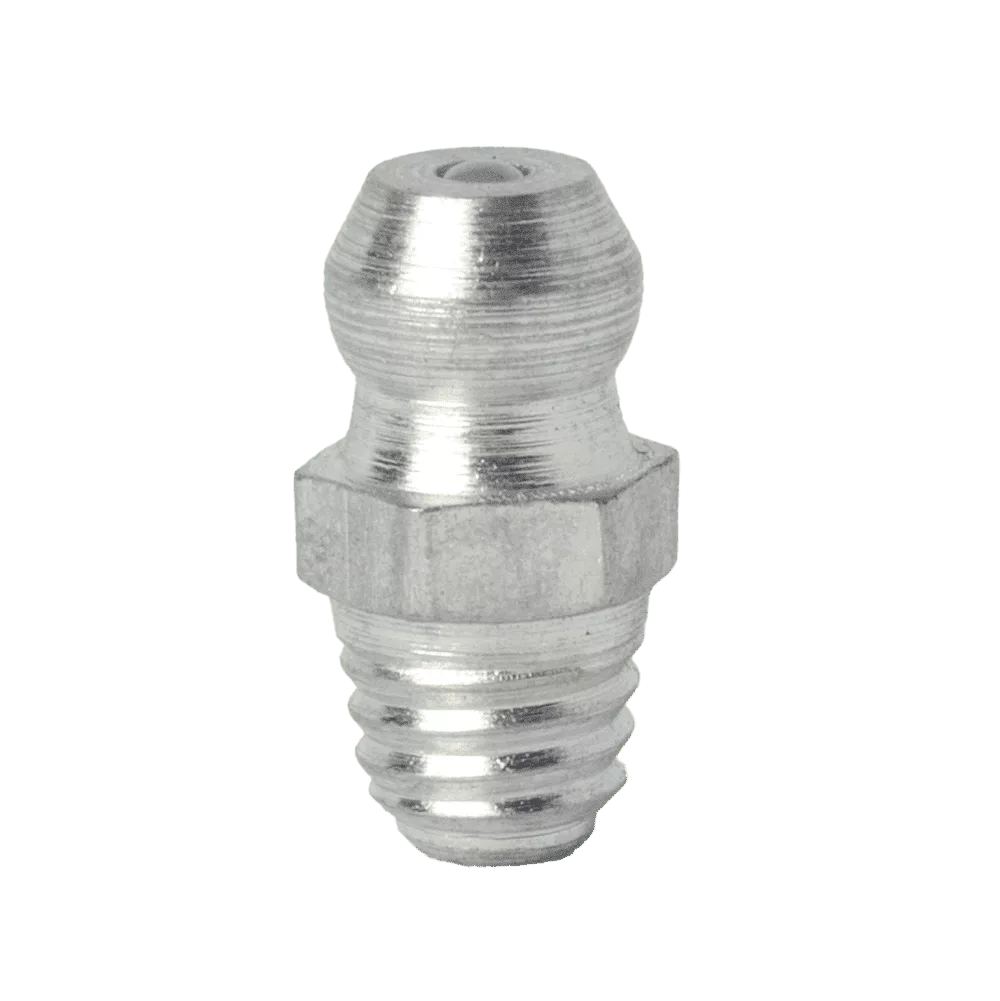

M6 x 1 Thread Forming Straight Grease Fitting

668771

Description

M6 x 1 Self Forming Thread. Straight Hydraulic Grease Fitting. DIN 71412 Type AS (H1/S)

Self-forming threads can be screwed or driven into an untapped hole. The recommended size of the hole for a M6 x 1 thread is 5.5-5.7mm (Ref DIN 71412) but can be dependent on the material.

Avoid chamfering as a sharp edge to the hole helps the thread bite.

Also available with Zinc Yellow Chromate Finish. Code 608771. Limited Availability.

Additional information
Angle

Straight

Ball Check

Yes

Dimension A (Inch)

0.56

Dimension A (mm)

14.2

Dimension B (Inch)

0.22

Dimension B (mm)

5.5

Hardened

Yes

Hole

ref. DIN 71412

International

DIN 71412

Product Type

Hydraulic Grease Nipple

Material

Mild Steel

Spanner Wrench Size

7mm Hexagon

Thread

M6 x 1 Self Forming

Thread Type

Self-forming

Zinc Plating

Zinc Trivalent Passivate
