Product Code: 616267

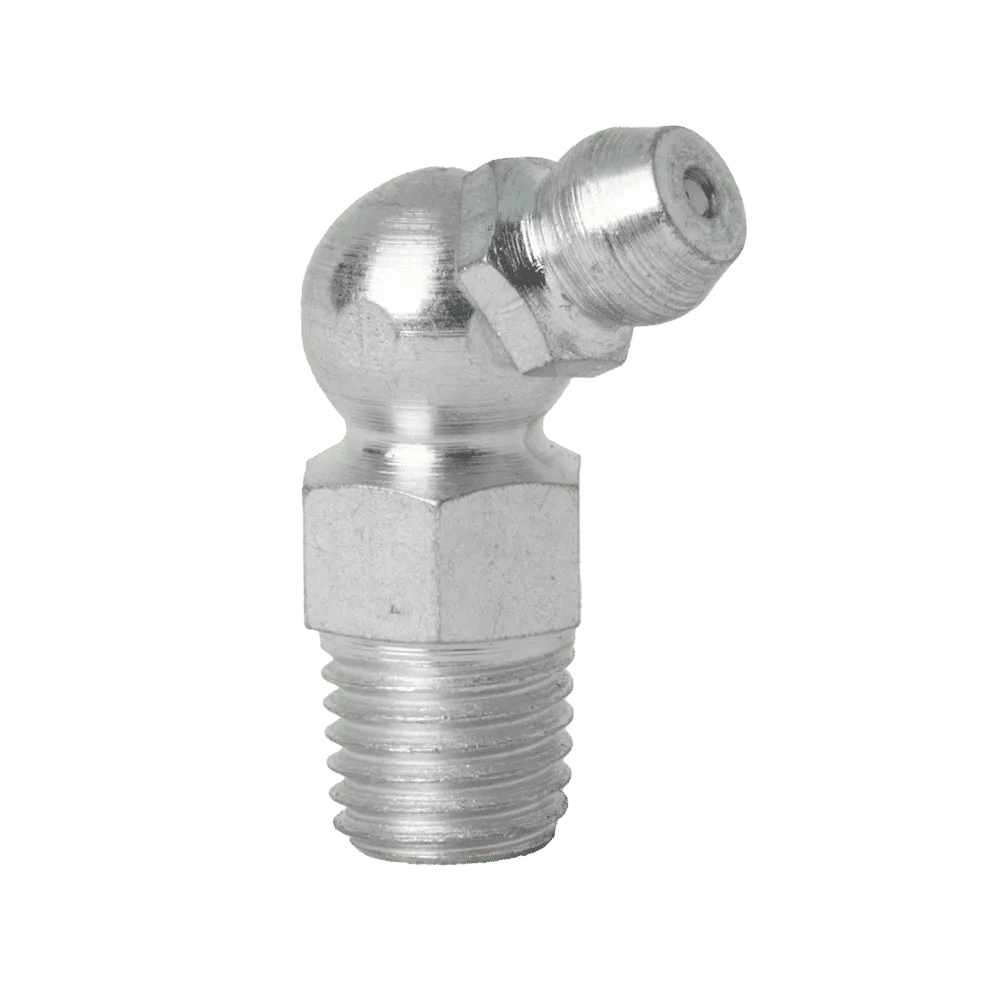

M8 x 1 Taper Long 67.5˚ Grease Fitting
616267
Description
M8 x 1 Taper, Long Thread, Hydraulic 67.5° Grease Fitting.
Zinc Trivalent Passivate Finish. RoHS and REACH Compliant.
Additional information
| Angle | 67.5 |
|---|---|
| Ball Check | Yes |

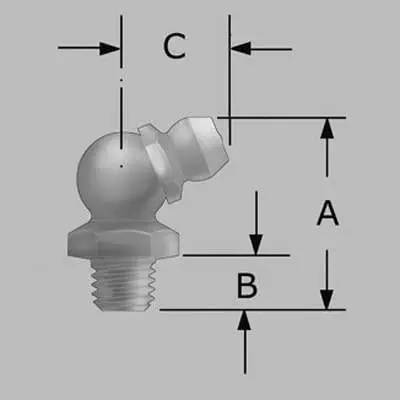

| Dimension A (Inch) | 0.95 |
| Dimension A (mm) | 24.2 |
| Dimension B (Inch) | 0.3 |
| Dimension B (mm) | 7.6 |
| Dimension C (Inch) | 0.42 |
| Dimension C (mm) | 10.6 |
| Hardened | Yes |
| Hole | M8 x 1 |
| Product Type | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Spanner Wrench Size | 9mm Hexagon |
| Thread | M8 x 1 Taper |
| Thread Type | Metric |
| Zinc Plating | Zinc Trivalent Passivate |
