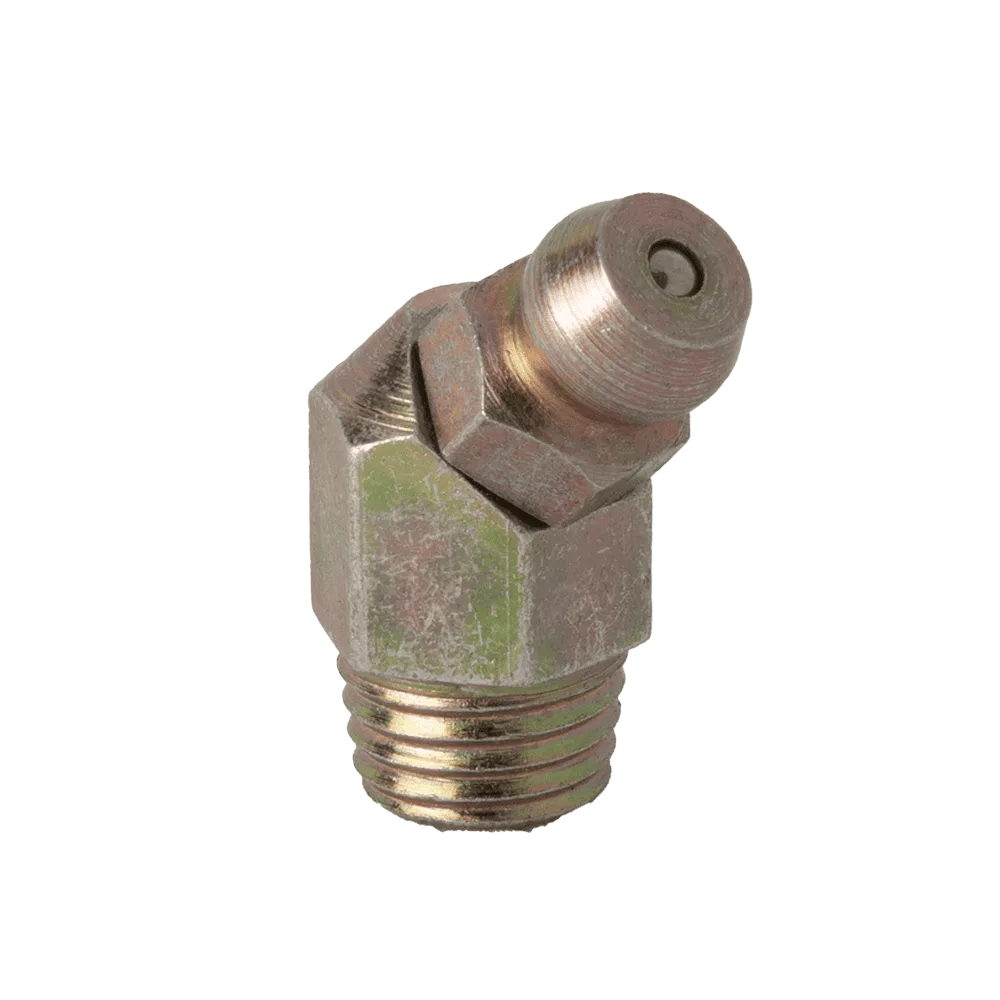

M8 x 1 Self Forming Thread 45˚ Grease Fitting
617145
Description
M8 x 1 Self Forming Thread 45˚ Grease Fitting.
Hardened Steel. Zinc Plated with Yellow Chromate Finish.
Self-forming threads can be screwed or driven into an untapped hole. Recommended hole size for M8 x 1 is 7.5mm (DIN 71412) The actual size of the hole must be determined by the user and maybe affected by the nature of the material.
Avoid chamfering as a sharp edge to the hole helps the thread bite
Additional information
| Angle | 45 |
|---|---|
| Ball Check | Yes |

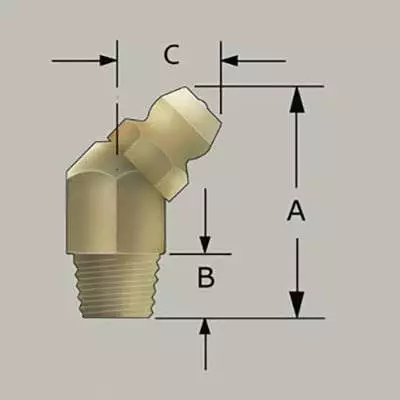

| Dimension A (Inch) | 0.8 |
| Dimension A (mm) | 20.5 |
| Dimension B (Inch) | 0.21 |
| Dimension B (mm) | 5.5 |
| Dimension C (Inch) | 0.37 |
| Dimension C (mm) | 9.5 |
| Hardened | Yes |
| Hole | ref. DIN 71412 |
| International | DIN 71412 |
| Product Type | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Spanner Wrench Size | 9mm Hexagon |
| Thread | M8 x 1 Self Forming |
| Thread Type | Self-forming |
| Zinc Plating | Zinc Yellow Chromate |
