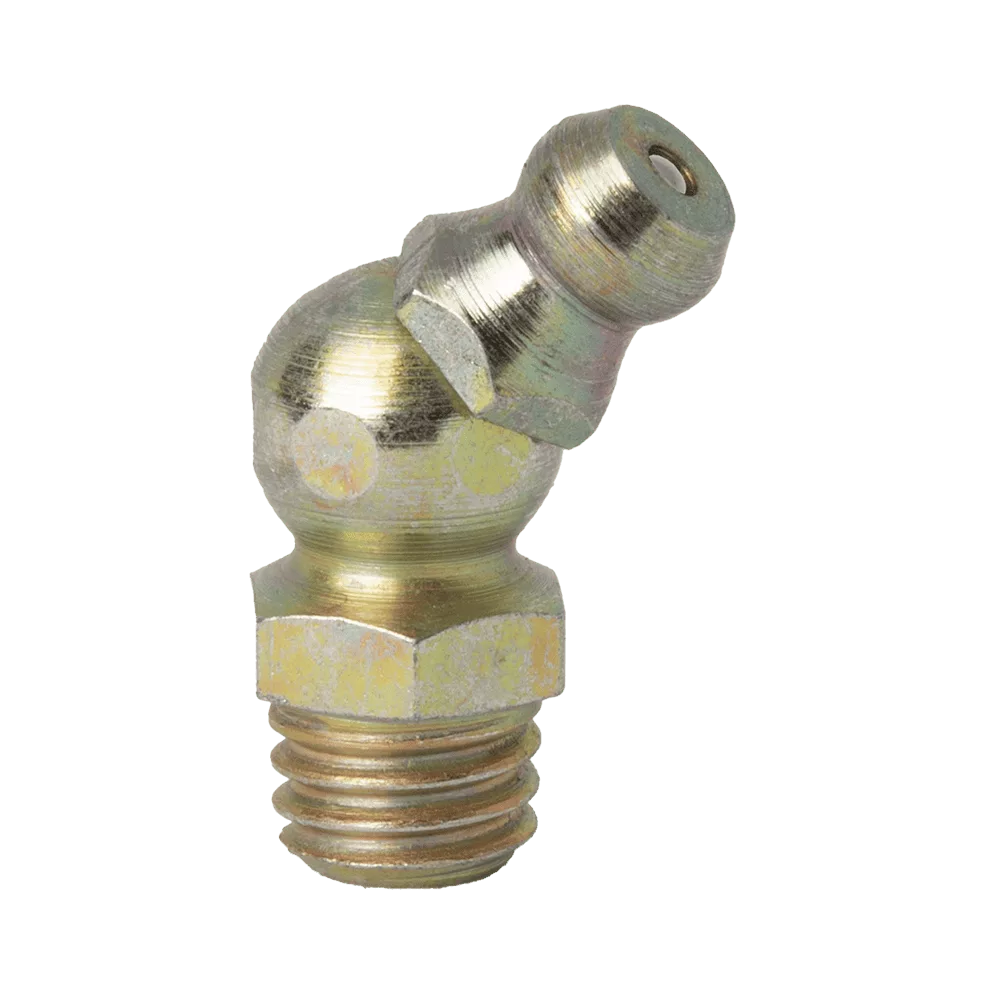

M8 x 1.25 Taper 45˚ Grease Fitting
617545
Description
According to DIN 71412 Form B (H2) – 45° Angle Grease Fitting.
Zinc Trivalent Passivate Finish. RoHS and REACH Compliant.
Also Available with Zinc Trivalent Passivate Finish. Code Number 617446. Limited Availability.
Available in 303 Stainless Steel. Code Number 815745 and 316 Stainless Steel. Code Number 316M82545
Additional information
| Weight | 14 kg |
|---|---|
| Angle | 45 |
| Ball Check | Yes |
| Dimension A (Inch) | 0.9 |
| Dimension A (mm) | 22.8 |
| Dimension B (Inch) | 0.22 |
| Dimension B (mm) | 5.6 |
| Dimension C (Inch) | 0.39 |
| Dimension C (mm) | 9.9 |
| Hardened | Yes |
| Hole | M8 x 1.25 |
| Product Type | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Spanner Wrench Size | 9mm Hexagon |
| Thread | M8 x 1.25 Taper |
| Thread Type | Metric |
| Zinc Plating | Zinc Yellow Chromate |
