Product Code: 816160
M6 x 1 DIN 3405 Cup Type 303 Stainless Steel
816160
Description

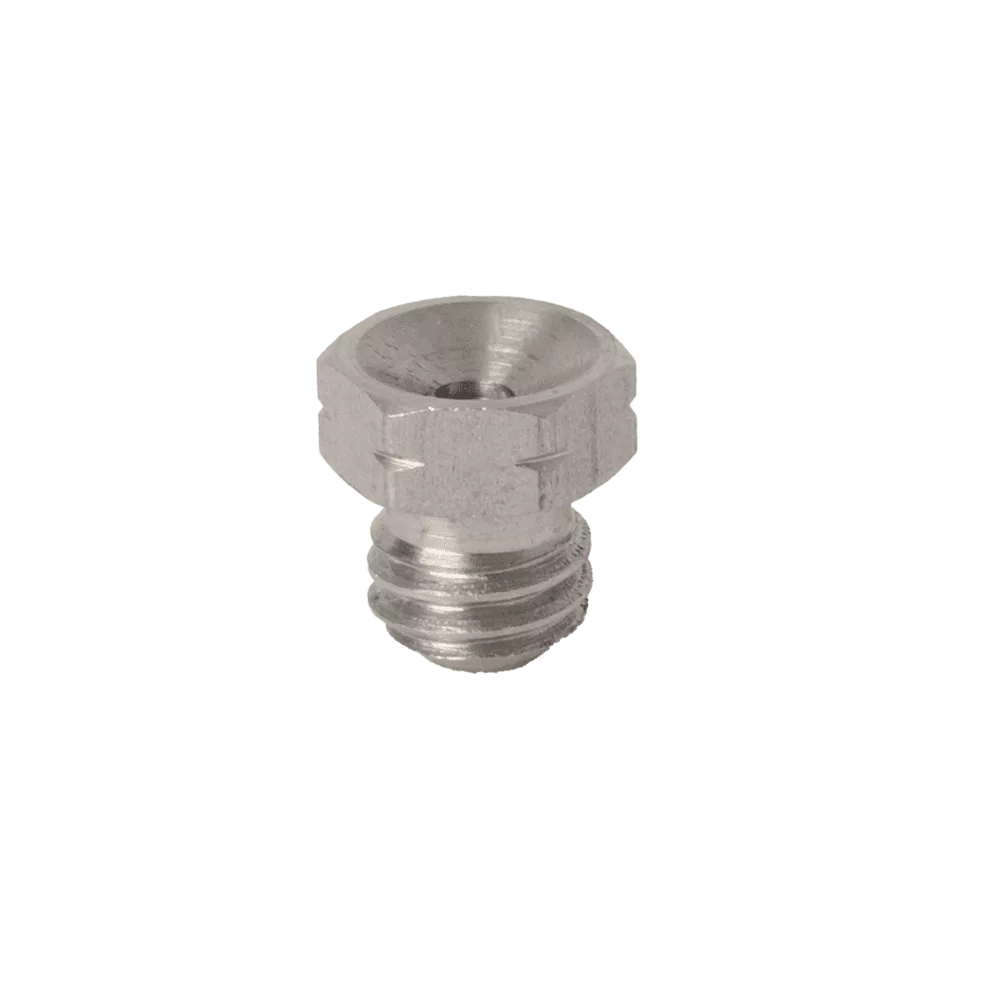

M6 x 1 Parallel Cup Type Grease Fitting to DIN 3405 Form A (D1)
303 Grade Stainless Steel (A2 or V2A) Body. 302 Grade Stainless Steel Spring and 440C Grade Stainless Steel Ball.
Also Available in Steel. Zinc Trivalent Passivate Finish. Code Number 516160.
Additional information
| Angle | Straight |
|---|---|
| Ball Check | Yes |
| Dimension A (mm) | 8.5 |
| Dimension B (mm) | 5.5 |
| Hardened | No |
| Hole | M6 x 1 |
| International | DIN 3405 |
| Product Type | Cup Type |
| Material | 303 Stainless |
| Spanner Wrench Size | 7mm Hexagon |
| Thread | M6 x 1 Parallel |
| Thread Type | Metric |
| Zinc Plating | No |
