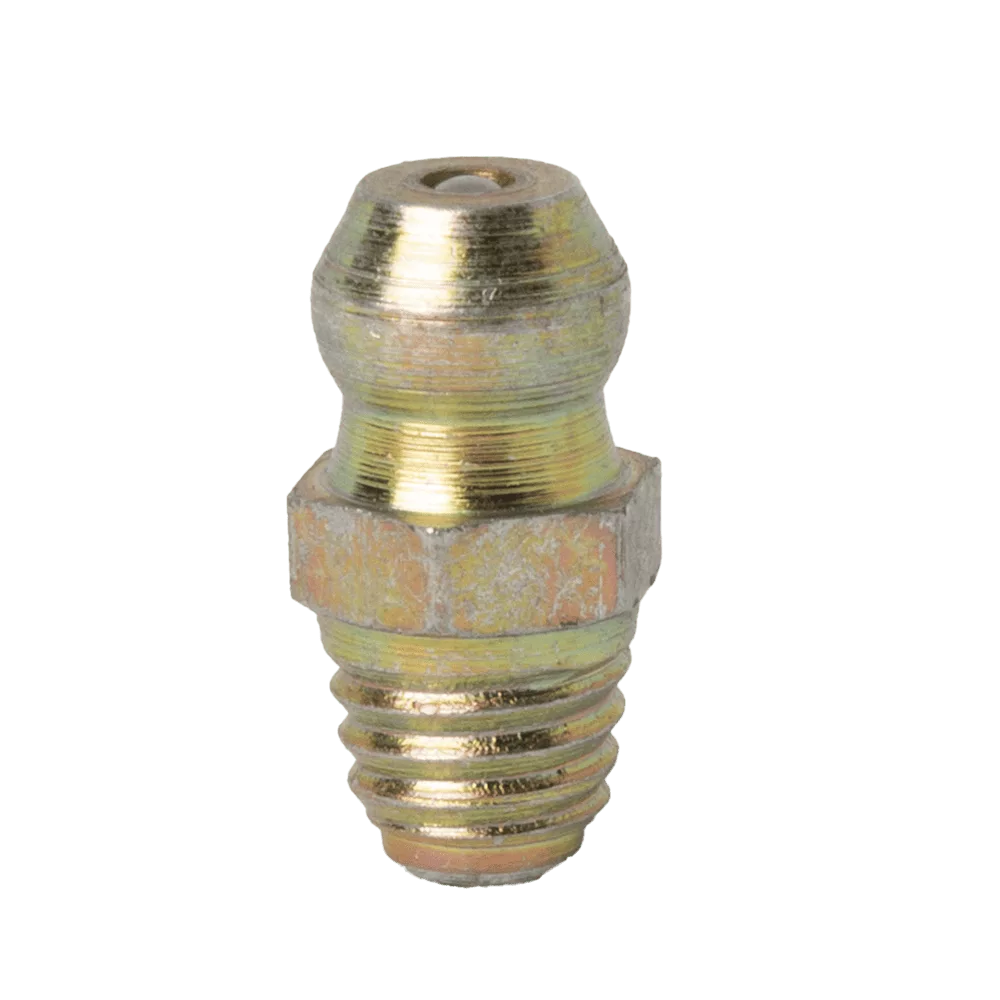

M6 x 1 Thread Forming Straight Grease Fitting
608771
Description
Self-forming threads can be screwed or driven into an untapped hole. The recommended size of the hole for a M6 x 1 thread is 5.5-5.7mm (Ref DIN 71412) but can be dependent on the material.
Avoid chamfering as a sharp edge to the hole helps the thread bite.
Also available with Zinc Trivalent Passivate Finish. Code 668771.
Additional information
| Weight | 13 kg |
|---|---|
| Angle | Straight |
| Ball Check | Yes |
| Dimension A (Inch) | 0.56 |
| Dimension A (mm) | 14.2 |
| Dimension B (Inch) | 0.22 |
| Dimension B (mm) | 5.5 |
| Hardened | Yes |
| Hole | ref. DIN 71412 |
| International | DIN 71412 |
| Product Type | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Spanner Wrench Size | 7mm Hexagon |
| Thread | M6 x 1 Self Forming |
| Thread Type | Self-forming |
| Zinc Plating | Zinc Yellow Chromate |
