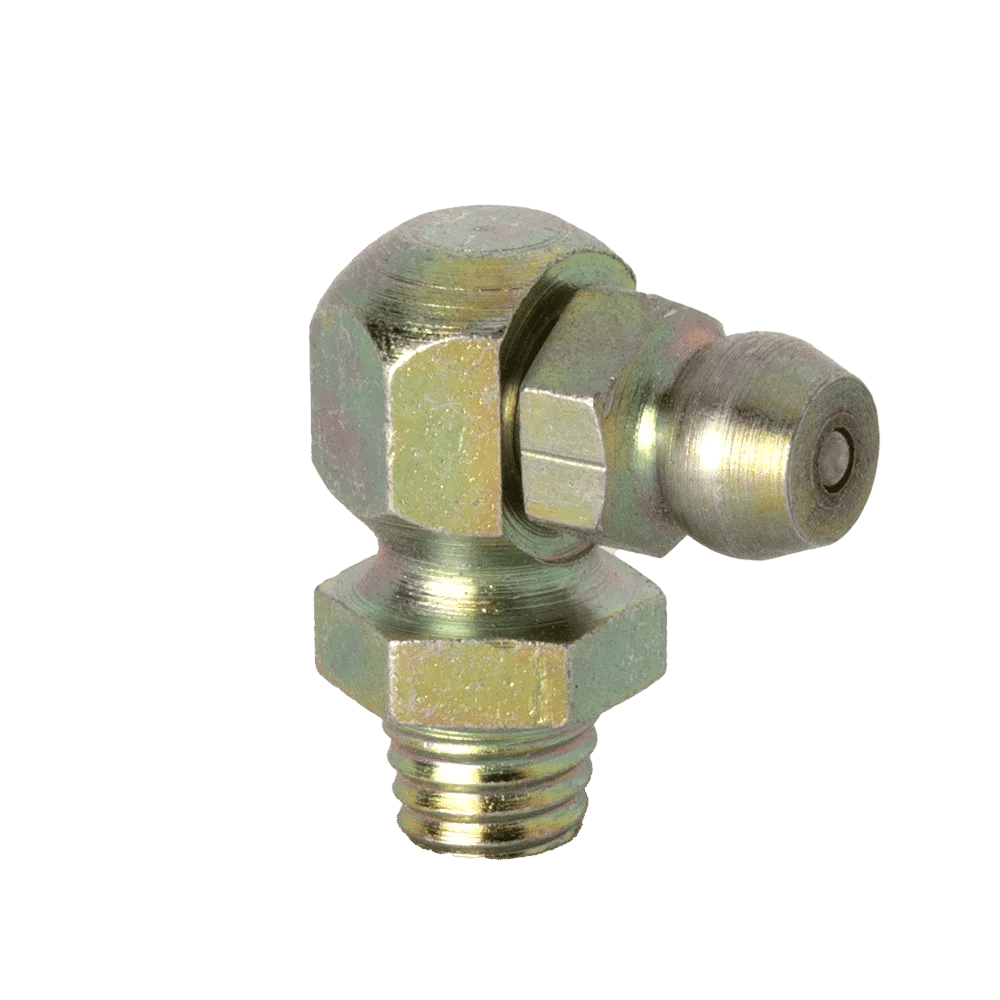

M6 x 1 Self Forming Thread 90˚ Angle Grease Fitting
618790
Description
M6 x 1 Thread Forming Thread 90˚ Angle Grease Fitting Hydraulic Grease Fitting.
Hardened Steel. Zinc Plated. Yellow Chromate Finish.
Self-forming threads can be screwed or driven into an untapped hole. The recommended size of the hole for a M6 x 1 thread is 5.6mm (Ref DIN 71412) but can be dependent on the material.
Self-forming threads can be screwed or driven into an untapped hole. The size of the hole must be determined by the user.
Avoid chamfering as a sharp edge to the hole helps the thread bite
Additional information
| Angle | 90 |
|---|---|
| Ball Check | Yes |

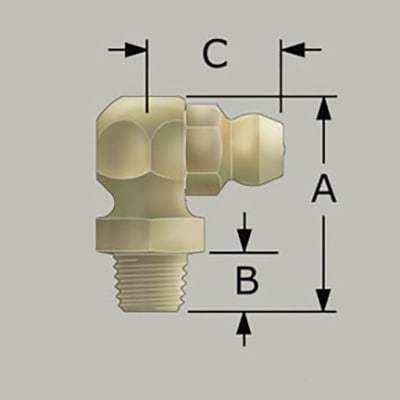

| Dimension A (mm) | 18.8 |
| Dimension B (mm) | 5.1 |
| Dimension C (mm) | 11.2 |
| Hardened | Yes |
| Hole | ref. DIN 71412 |
| International | DIN71412 |
| Product Type | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Spanner Wrench Size | 9mm Hexagon |
| Thread | M6 x 1 Self Forming |
| Thread Type | Self-forming |
| Zinc Plating | Zinc Yellow Chromate |
