Product Code: 813645

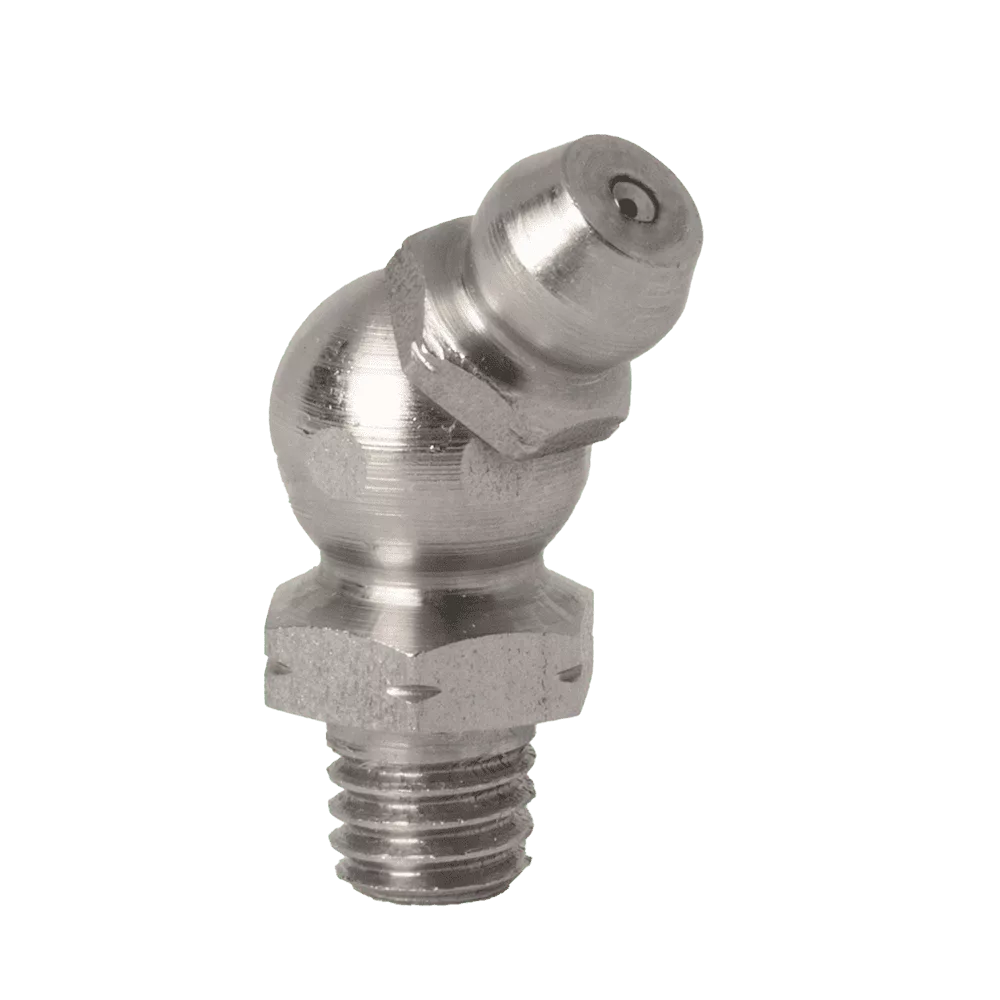

M6 x 1 Taper 45˚ Grease Fitting 303 Stainless Steel (A2)
813645
Description
M6 x 1 Taper 45˚ Grease Fitting. DIN 71412 Form B (H2)
303 Grade (A2 or V2A) Stainless Steel Body and Tip with 302 Grade Stainless Steel Spring and 440C Grade Stainless Steel Ball.
Material Certification Available.
Also Available in 316 Grade Stainless Steel. Code Number 316M6145.
Additional information
| Weight | 13 kg |
|---|---|
| Angle | 45 |
| Ball Check | Yes |
| Dimension A (Inch) | 0.89 |
| Dimension A (mm) | 22.6 |
| Dimension B (Inch) | 0.23 |
| Dimension B (mm) | 5.5 |
| Dimension C (Inch) | 0.35 |
| Dimension C (mm) | 0.89 |
| Hardened | No |
| Hole | M6 x 1 |
| Product Type | Hydraulic Grease Nipple |
| Material | 303 Stainless |
| Spanner Wrench Size | 9mm Hexagon |
| Thread | M6 x 1 Taper |
| Thread Type | Metric |
| Zinc Plating | No |
