Product Code: 81864090

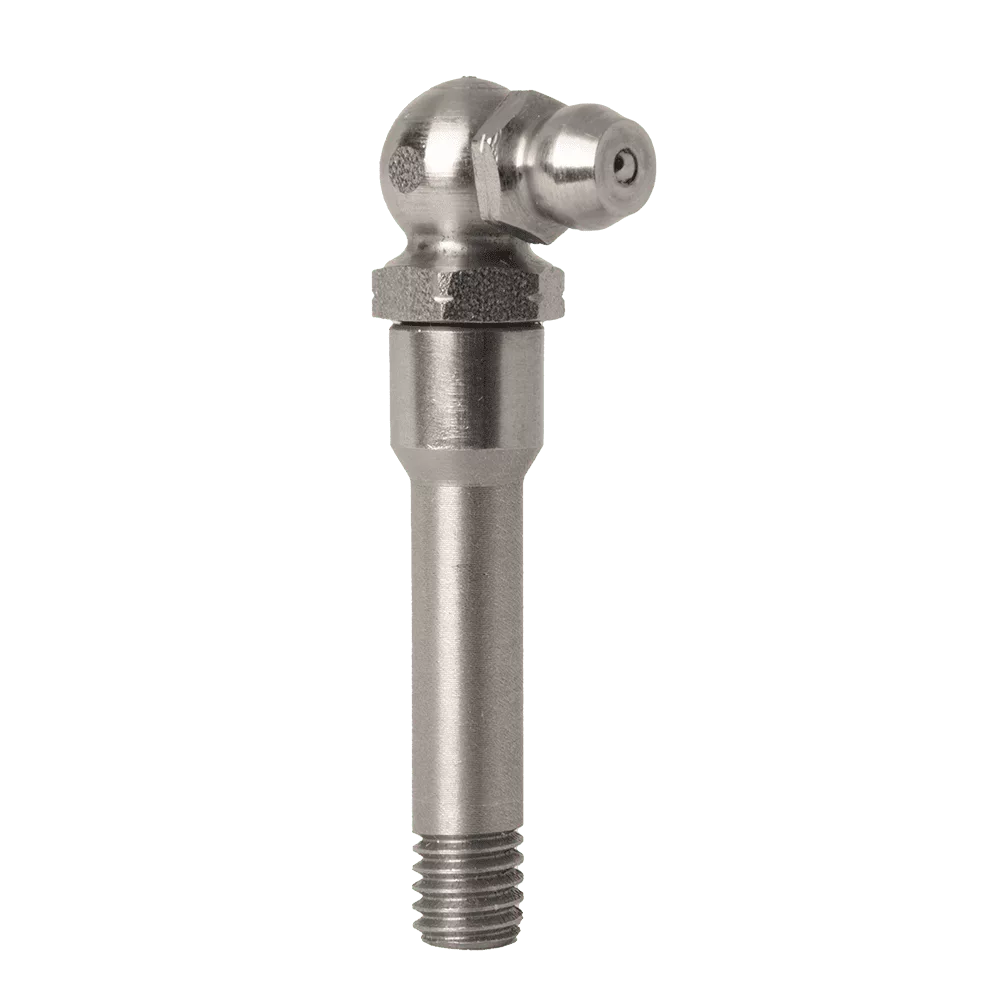

M6 x 1 40mm Long 90° Grease Fitting 303 Stainless Steel
81864090
Description
M6 x 1 90° Hydraulic Grease Fitting. 30mm Long.
303 (A2) Grade Stainless Steel Body. 302 Grade Stainless Steel Spring. 440C Grade Stainless Steel Ball.
Material Certification Available.
Additional information
| Angle | 90 |
|---|---|
| Ball Check | Yes |

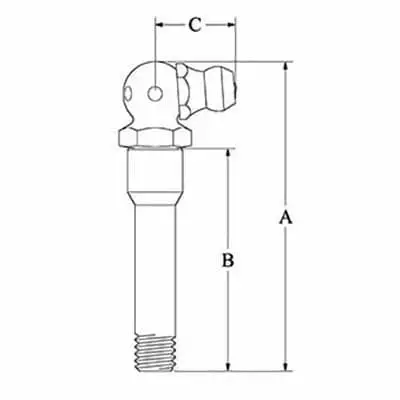

| Dimension A (mm) | 45 |
| Dimension B (mm) | 24 |
| Dimension C (mm) | 11.2 |
| Hardened | No |
| Hole | M6 x 1 |
| Product Type | Hydraulic Grease Nipple |
| Material | 303 Stainless |
| Spanner Wrench Size | 9mm Hexagon |
| Thread | M6 x 1 Taper |
| Thread Type | Metric |
| Zinc Plating | No |
