Product Code: 617245

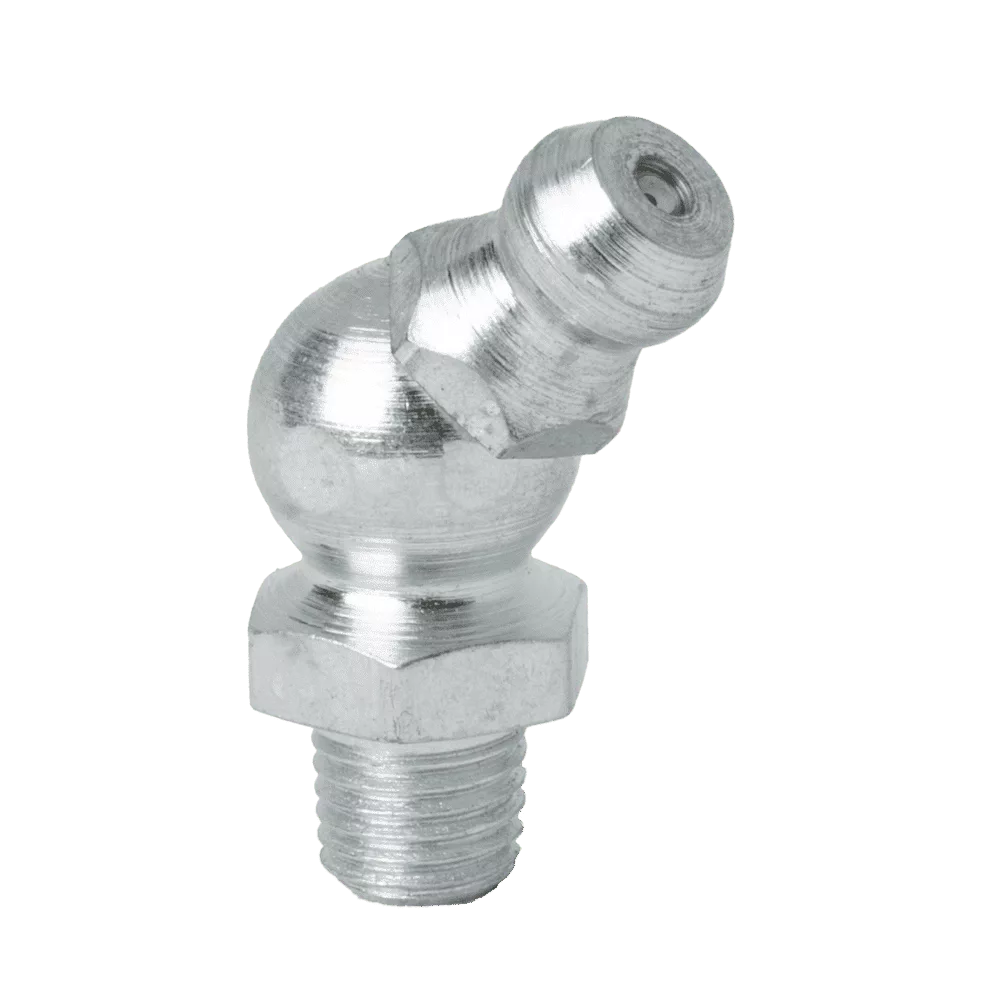

M6 x 0.75 Taper 45˚ Grease Fitting
617245
Description
M6 x 1 Taper 45° Grease Fitting. According to DIN 71412 Form B (H2)
Steel. Zinc Plated with Trivalent Passivate. RoHS and REACH Compliant.
Additional information
| Weight | 13 kg |
|---|---|
| Angle | 45 |
| Ball Check | Yes |
| Dimension A (Inch) | 0.76 |
| Dimension A (mm) | 23 |
| Dimension B (Inch) | 0.22 |
| Dimension B (mm) | 5.6 |
| Dimension C (Inch) | 0.39 |
| Dimension C (mm) | 9.9 |
| Hardened | Yes |
| Hole | M6 x 0.75 |
| International | DIN71412 |
| Product Type | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Spanner Wrench Size | 9mm Hexagon |
| Thread | M6 x 0.75 Taper |
| Thread Type | Metric |
| Zinc Plating | Zinc Trivalent Passivate |
