Product Code: 615146

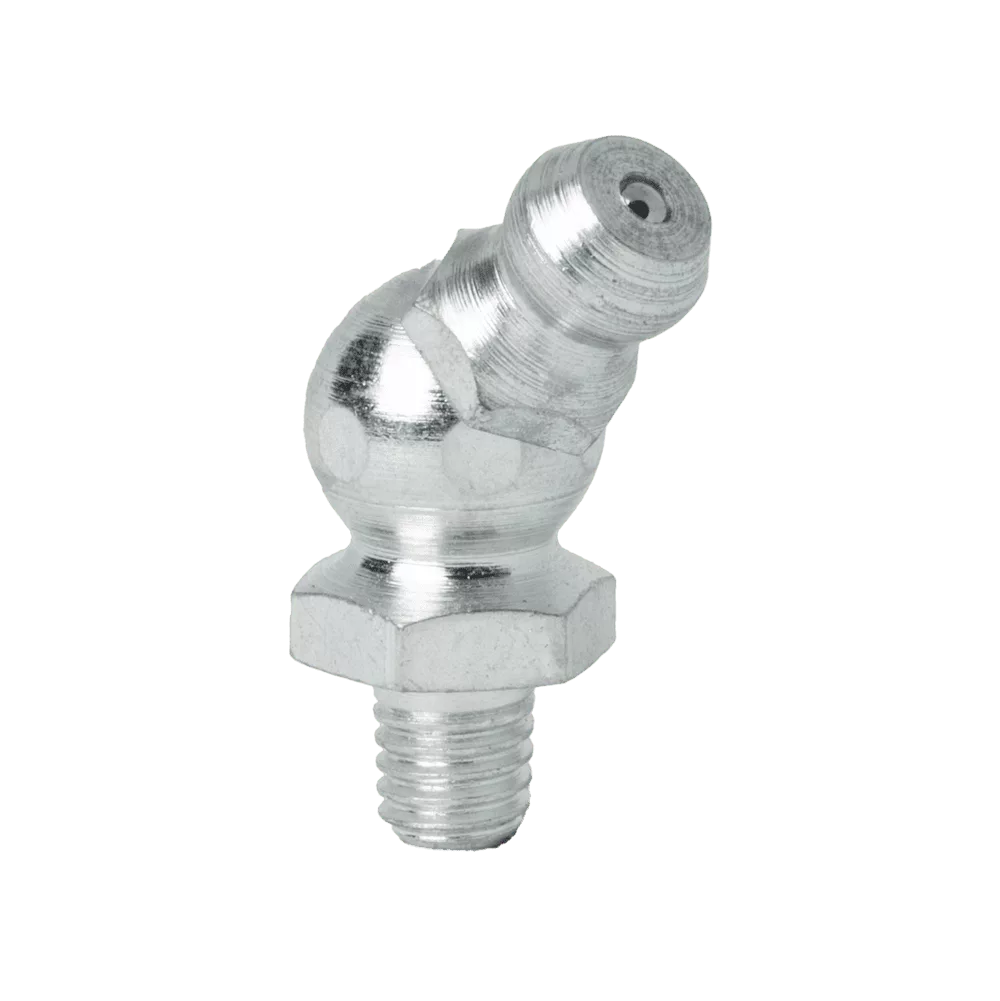

M5 x 0.8 Taper 45˚ Grease Fitting
615146
Description
M5 x 0.8 Taper 45° Angle Grease Fitting. According to DIN 71412 Form B (H2)
Steel. Zinc Plated with Trivalent Passivate. RoHS and REACH Compliant.
Additional information
| Weight | 12.5 kg |
|---|---|
| Angle | 45 |
| Ball Check | Yes |
| Dimension A (Inch) | 0.9 |
| Dimension A (mm) | 23 |
| Dimension B (Inch) | 0.22 |
| Dimension B (mm) | 5.6 |
| Dimension X (Imperial) | 0.39 |
| Dimension X (Metric) | 9.9 |
| Hardened | Yes |
| Hole | M5 x 0.8 |
| Product Type | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Spanner Wrench Size | 9mm Hexagon |
| Thread | M5 x 0.8 |
| Thread Type | Metric |
| Zinc Plating | Zinc Trivalent Passivate |
