Product Code: 515080SL

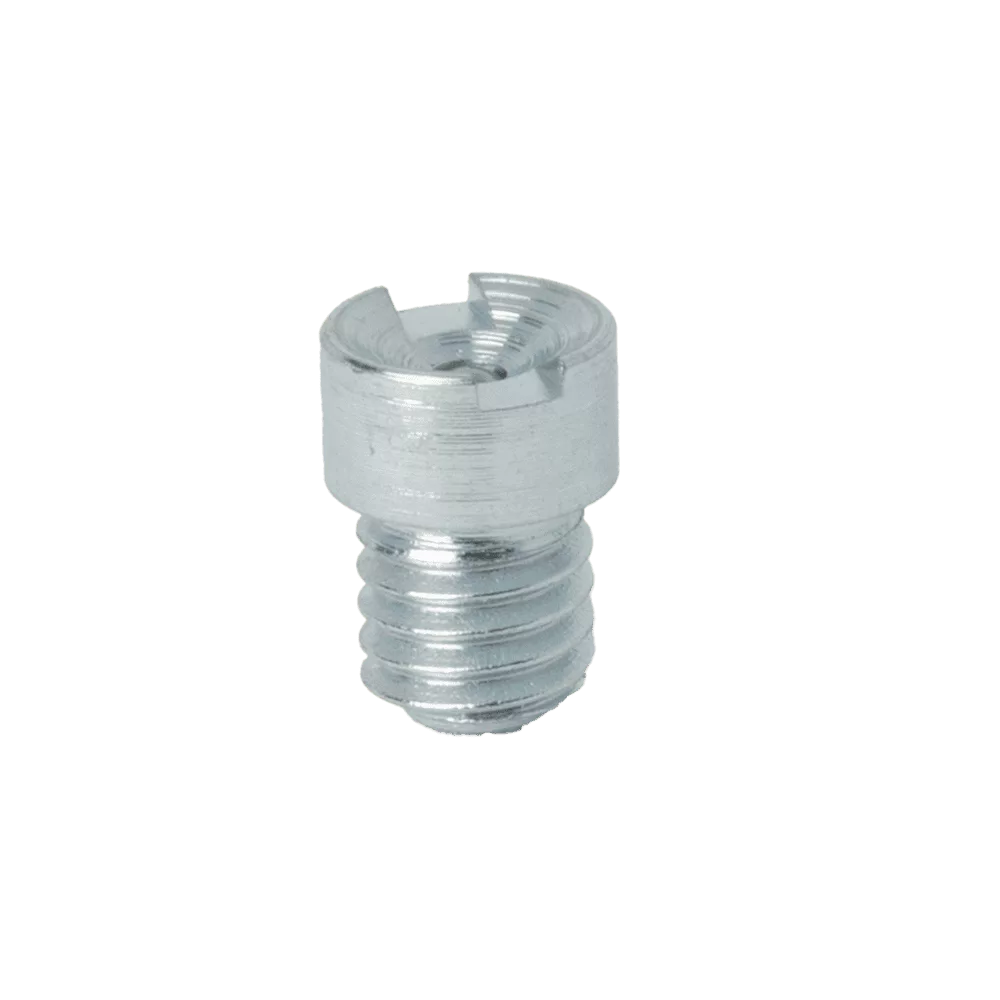

M5 x 0.8 Cup Type with Screwdriver Slot
515080SL
Description
M5 x 0.8 Parallel Cup Type with screwdriver slot to allow installation into recessed hole. Low Pressure applications only.
Zinc Trivalent Passivate Finish. RoHS and REACH Compliant.
Additional information
| Angle | Straight |
|---|---|
| Ball Check | Yes |

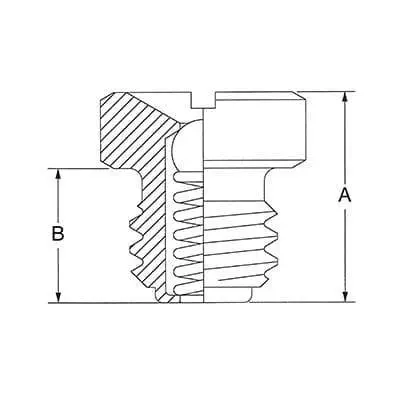

| Dimension A (Inch) | 0.33 |
| Dimension A (mm) | 8.5 |
| Dimension B (Inch) | 0.21 |
| Dimension B (mm) | 5.5 |
| Hardened | No |
| Hole | M6 x 1 |
| International | DIN 3405 |
| Product Type | Cup Type |
| Material | Mild Steel |
| Spanner Wrench Size | 5/16" Diameter |
| Thread | M6 x 1 Parallel |
| Thread Type | Metric |
| Zinc Plating | Zinc Trivalent Passivate |
