Product Code: 805181

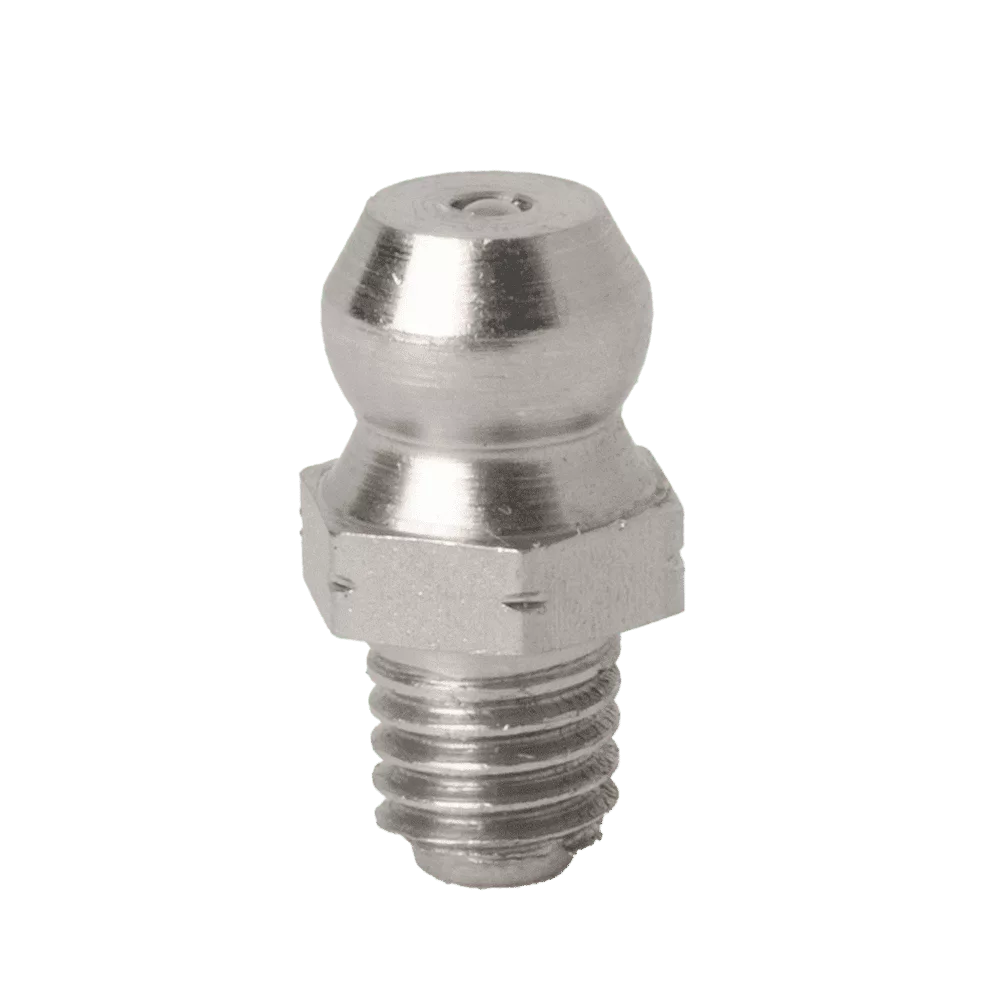

M5 x 0.8 Taper Straight Grease Fitting 303 Stainless Steel
805181
Description
M5 x 0.8 Hydraulic Straight Grease Fitting.
303 (A2) Grade Stainless Steel Body. 302 Grade Stainless Steel Spring. 440C Grade Stainless Steel Ball.
Material Certification Available.
Additional information
| Angle | Straight |
|---|---|
| Ball Check | Yes |

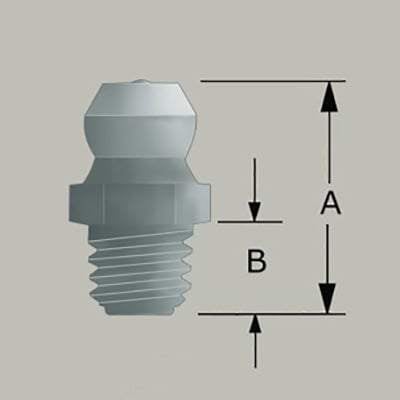

| Dimension A (mm) | 16 mm Maximum |
| Dimension B (mm) | 6.2 mm MAXIMUM |
| Hardened | No |
| Hole | M5 x 0.8 |
| International | DIN71412 for the tip tip |
| Product Type | Hydraulic Grease Nipple |
| Material | 303 Stainless |
| Spanner Wrench Size | 7mm Hexagon |
| Thread | M5 x 0.8 |
| Thread Type | Metric |
| Zinc Plating | No |
