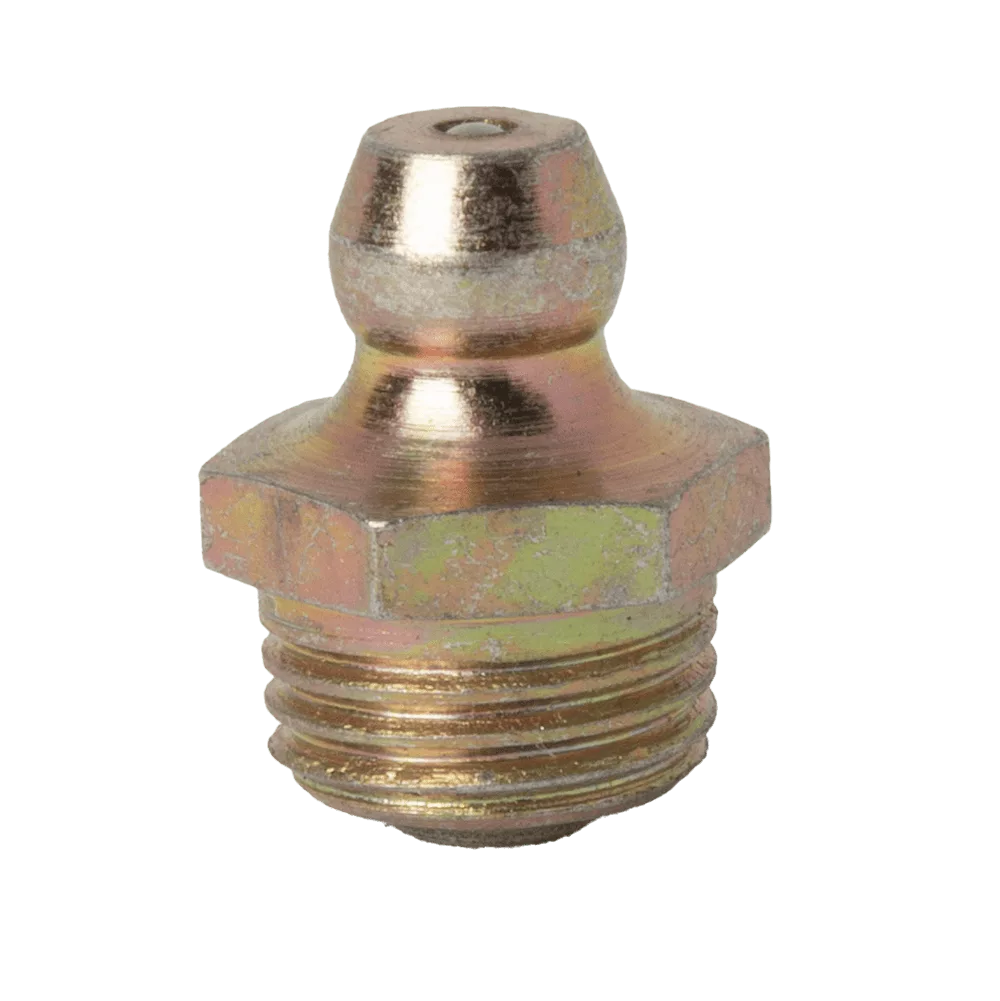

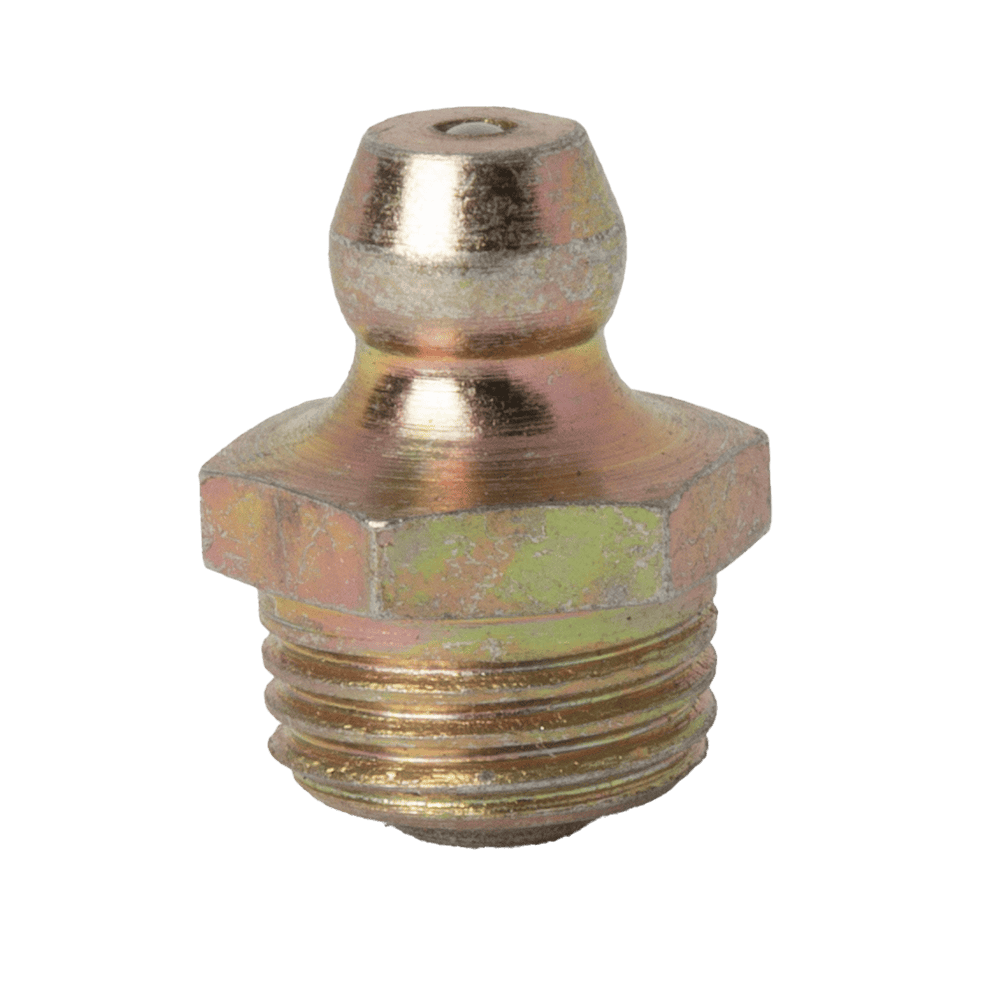

M10 x 1 Taper Straight Grease Fitting
609301
Description
M10 x 1 Taper Straight Hydraulic Grease Fitting to DIN 71412 Type A (H1)
Zinc Yellow Chromate Finish.
Also Available in Zinc Trivalent Passivate Finish. Code Number 669301. Limited Availability.
303 Grade Stainless Version. Code Number 808071
316 Grade Stainless Steel Version. Code Number 316M101
Additional information
| Weight | 11 kg |
|---|---|
| Angle | Straight |
| Ball Check | Yes |
| Diagram | Fig.17 |
| Dimension A (Inch) | 0.6 |
| Dimension A (mm) | 15.2 |
| Dimension B (Inch) | 0.23 |
| Dimension B (mm) | 5.9 |
| Dimension C (Inch) | N/A |
| Dimension C (mm) | N/A |
| Hardened | Yes |
| Hidden | No |
| Hole | M10 x 1 |
| International | DIN 71412 |
| Product Type | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Product Long | Normal |
| Spanner Wrench Size | 11mm Hexagon |
| Stock Item | Class 1 Parts |
| Thread | M10 x 1 Taper |
| Thread Type | Metric |
| Zinc Plating | Yes |
