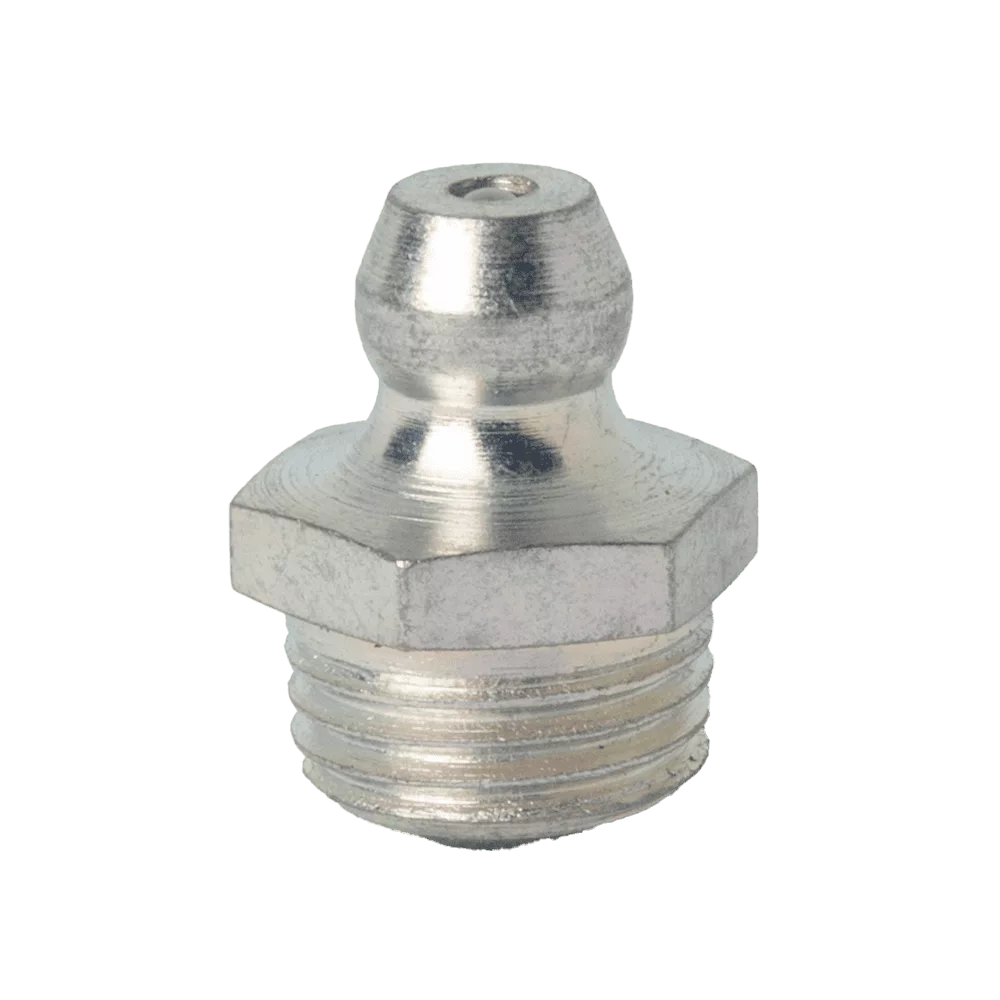

M10 x 1 Taper Straight Grease Fitting
669301
Description
M10 x 1 Taper Hydraulic Straight Grease Fitting to DIN 71412 Form A (H1)
Zinc Trivalent Passivate Finish. RoHS and REACH Compliant.
Also Available in Zinc Yellow Chromate Finish. Code Number 609301. Limited Availability.
303 Grade Stainless Version. Code Number 808071
316 Grade Stainless Steel Version. Code Number 316M101
Additional information
| Angle | Straight |
|---|---|
| Ball Check | Yes |
| Dimension A (Inch) | 0.6 |
| Dimension A (mm) | 15.2 |
| Dimension B (Inch) | 0.23 |
| Dimension B (mm) | 5.9 |
| Hardened | Yes |
| Hole | M10 x 1 |
| International | DIN 71412 |
| Product Type | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Spanner Wrench Size | 11mm Hexagon |
| Thread | M10 x 1 Taper |
| Thread Type | Metric |
| Zinc Plating | Zinc Trivalent Passivate |
