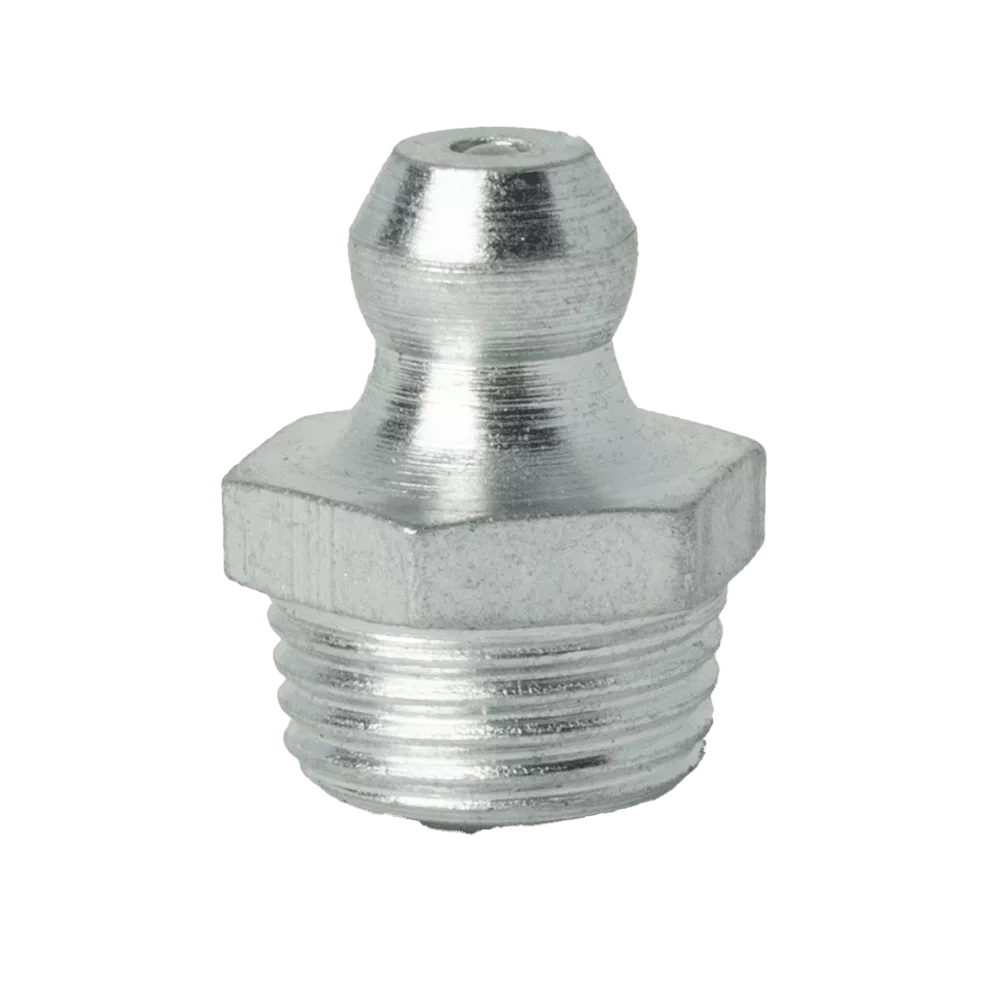

M10 x 1 Taper Thread Forming Straight Grease Fitting
669371
Description
M10 x 1 Self Forming Thread. Straight Hydraulic Grease Fitting. DIN 71412 Type AS (H1/S)
Self-forming threads can be screwed or driven into an untapped hole. The recommended size of the hole for a M10 x 1 thread is 9.4-9.6mm (Ref DIN 71412) but can be dependent on the material.
Avoid chamfering as a sharp edge to the hole helps the thread bite.
Also available with Zinc Yellow Chromate Finish. Code 609371.
Additional information
| Angle | Straight |
|---|---|
| Ball Check | Yes |
| Hardened | Yes |
| Hole | ref. DIN 71412 |
| International | DIN71412 |
| Product Type | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Spanner Wrench Size | 11mm Hexagon |
| Thread | M10 x 1 Self Forming |
| Thread Type | Self-forming |
| Zinc Plating | Zinc Trivalent Passivate |
