Product Code: 816010
M10 x 1 DIN 3405 Cup Type 303 Stainless Steel
816010
Description

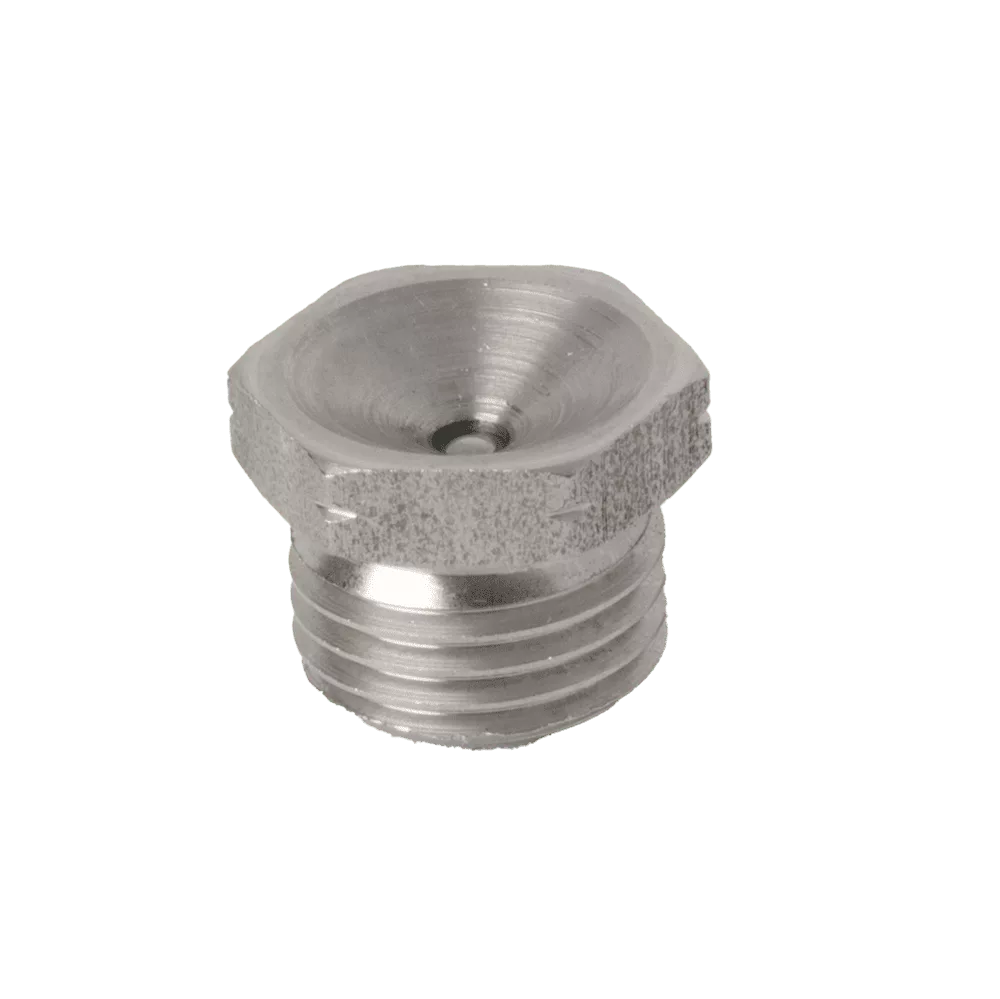

M10 x 1 Parallel Cup Type Grease Fitting to DIN 3405 Form A (D1)
303 Grade Stainless Steel (A2 or V2A) Body. 302 Grade Stainless Steel Spring and 440C Grade Stainless Steel Ball.
Also Available in Steel. Zinc Trivalent Passivate Finish. Code Number 516010.
Additional information
| Angle | Straight |
|---|---|
| Ball Check | Yes |
| Dimension A (Inch) | 0.38 |
| Dimension A (mm) | 9.8 |
| Dimension B (Inch) | 0.27 |
| Dimension B (mm) | 6.7 |
| Hardened | No |
| Hole | M10 x 1 |
| International | DIN3405 |
| Product Type | Cup Type |
| Material | 303 Stainless |
| Spanner Wrench Size | 11mm Hexagon |
| Thread | M10 x 1 Parallel |
| Thread Type | Metric |
| Zinc Plating | No |
